Fully Integrated Solar Powered Marine Navigation Lantern Light AIS AtoN For Fixed Beacons
Product Summary
fully integrated Solar-Powered AIS AtoN for Fixed Beacons The AIS60-FB is a fully integrated solar-powered AIS Aids to Navigation light designed specifically for fixed beacons, such as pier markers, daymarks, breakwater indicators, or shore-based marine signals. Unlike buoy-type AtoNs, fixed beacons ...
Product Custom Attributes
Solar Powered Marine Navigation Lantern
,Fully Integrated Marine Lantern Light
Basic Properties
Trading Properties
Product Description

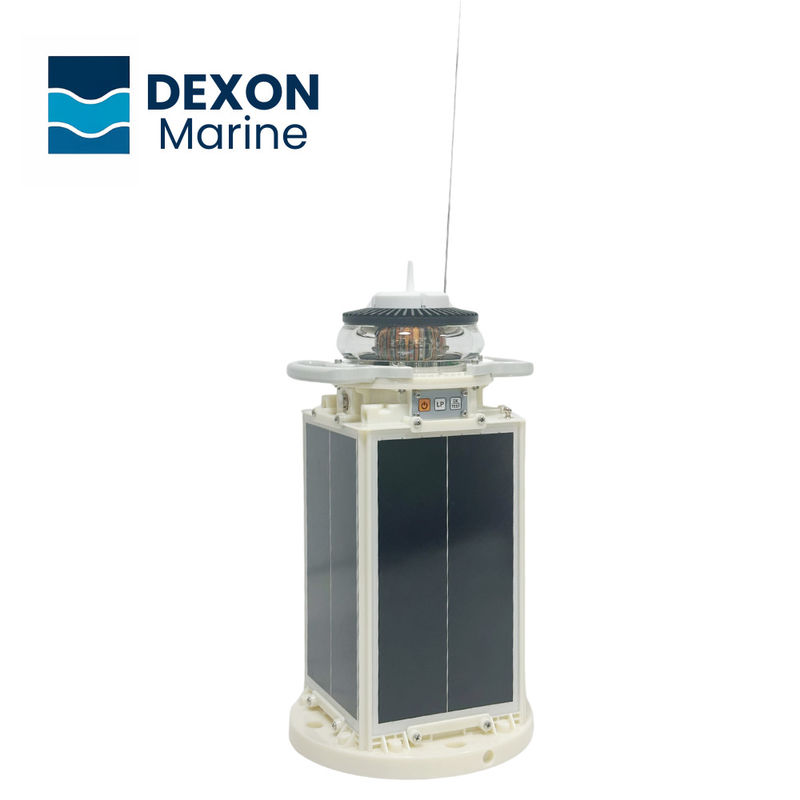

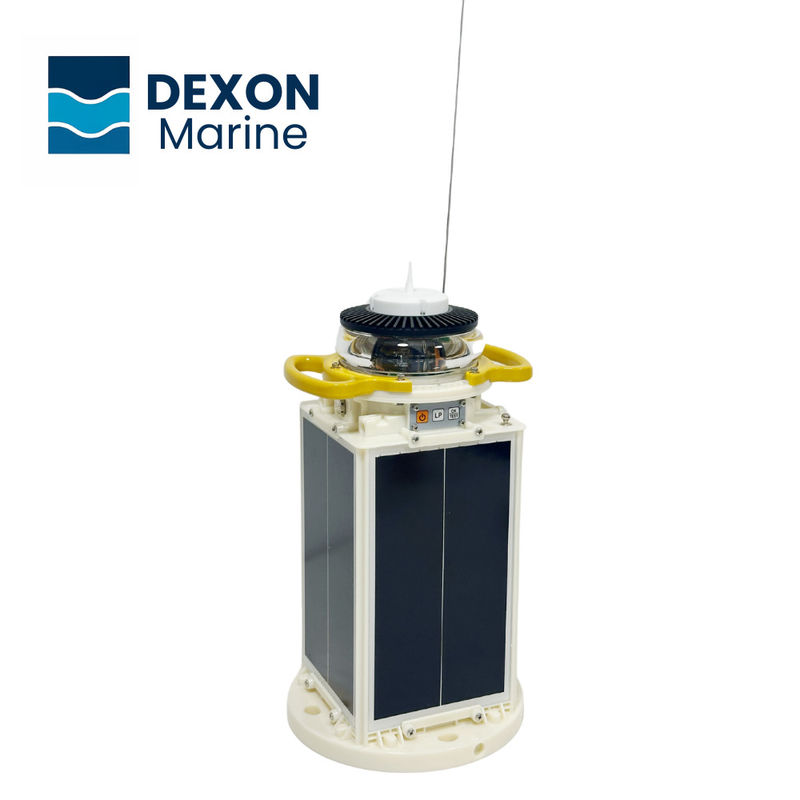

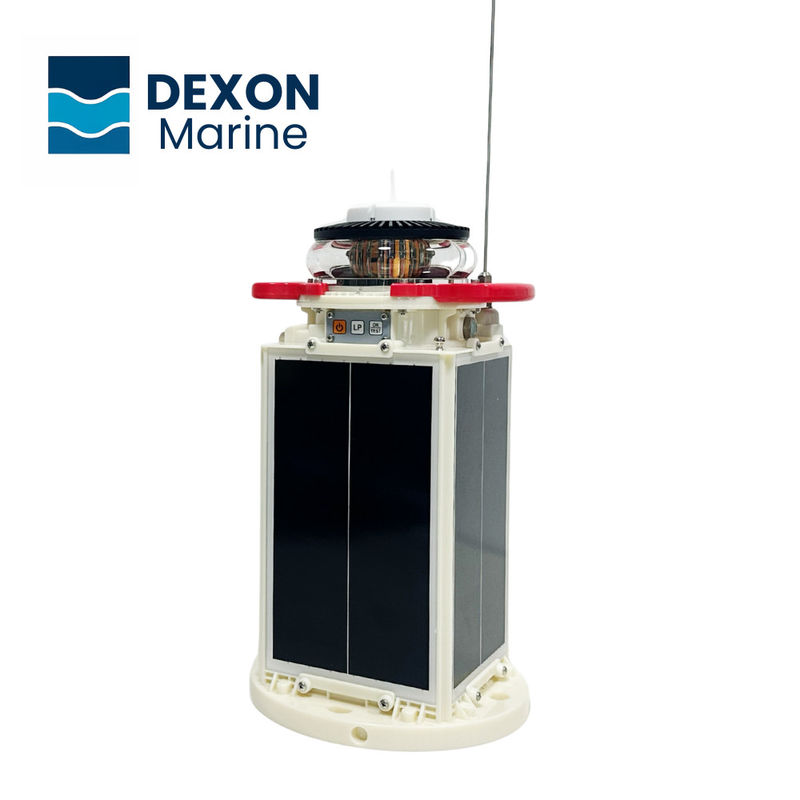

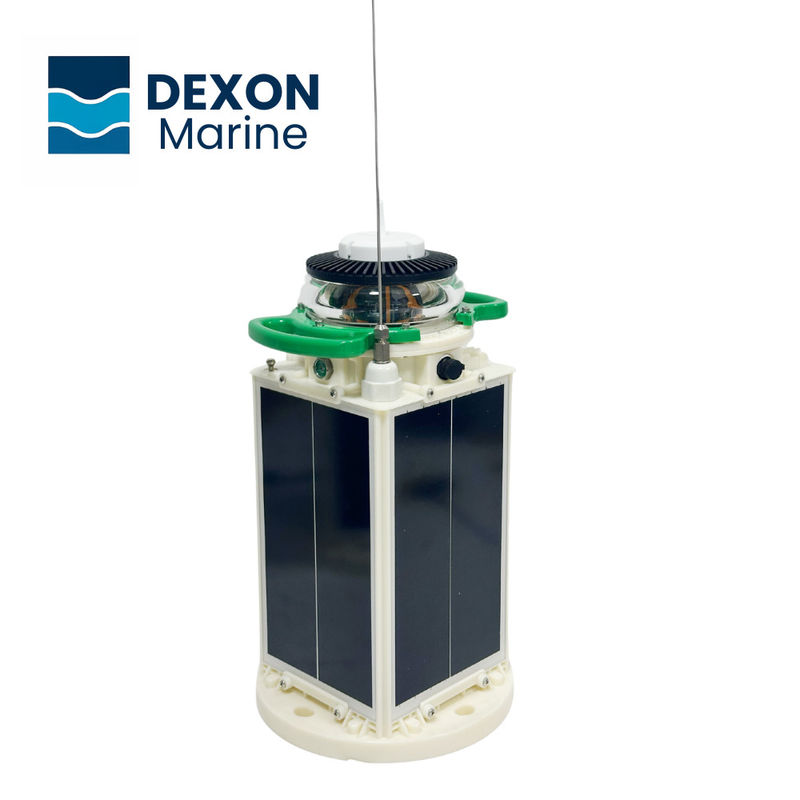

fully integrated Solar-Powered AIS AtoN for Fixed Beacons
The AIS60-FB is a fully integrated solar-powered AIS Aids to Navigation light designed specifically for fixed beacons, such as pier markers, daymarks, breakwater indicators, or shore-based marine signals. Unlike buoy-type AtoNs, fixed beacons require a narrow vertical beam angle to ensure precise light targeting and optimal energy usage in a stable mounting environment.
Built with a high-efficiency solar panel, an integrated lithium battery, and AIS transmission capabilities, the AIS60-FB operates completely autonomously, with no need for external power or base station support.
KEY ADVANTAGES
- The AIS60 All-in-one Solar Navigation Lantern is available in two models: Type I and Type III. These models meet international maritime standards.
- This product supports standard AIS messages (Messages 21, 6, and 8), and it is capable of additional messages such as Messages 7, 12, 20, and 25.
- It offers two AIS transmit power options: ≤6W and ≤12.5W, ensuring effective communication over various distances.
- It offers 256 IALA-compliant flashing patterns, accompanied by a comprehensive guide.
- The device offers dual-mode positioning with Beidou and GPS (adjust as required), ensuring precise navigation data.
- This Solar Navigation Lantern is available in five colors and features adjustable brightness levels (0 to 5). It is customizable for different buoy environments.
- The visibility range is from 3 to 8 nautical miles, and the AIS signal transmission range is up to 25 nautical miles.
- Remote maintenance checks are conducted via an additional chip, thereby eliminating the need for manual inspections at the buoy.
TECHNICAL DATA
| Category | Specification | Details |
| Overall Features | Operating Voltage | DC: 10.5V—14.4V |
| Solar Panels | Vertical: 4x7W | |
| Charging Current | Typical value 400mA | |
| Operating Temperature | -35°C to +60°C | |
| Parameter Loading | RS232, Button | |
| Waterproof Level | IP68 | |
| Net. Weight | 9.8 kg | |
| Dimensions | Buoy Light: 240mm x 240mm x 489mm | |
| Fixed Light: 240mm x 240mm x 455mm | ||
| Packaging Dimensions | 277mm x 281mm x 537mm | |
| Installation Dimensions | Compliant with domestic and international standards | |
| Continuous Operation in Overcast/Rainy Conditions | ≥25 days | |
| AIS Features | Operating Frequency | 161.975MHz, 162.025MHz |
| Modulation Mode | GMSK/FSK | |
| Frequency Error | ±0.5kHz | |
| Transmission Power | 1W 2W 5W 6W 12.5W (select option) | |
| Average Power Consumption | Continuous mode ≤1W (Low power mode ≤0.7W) | |
| Message Format | Messages 21, 6 adjustable, supports multiple formats | |
| Operating Mode | Default Mode Three SOTDMA (FATDMA, RATDMA, SOTDMA adjustable) | |
| Light Features | Len material | Acrylic |
| Base material | ABS+PC | |
| Light Colors | Red/Green/Yellow/White/Blue | |
| Light Intensity | 256 adjustable levels | |
| Daylight Threshold | Digital photosensitive, adjustable threshold | |
| Beam Distance | 5-8nm | |
| Emission Angle | Buoy Light ≥8°, Fixed Light ≥2.5° | |
| Battery Features | Battery Type | LiFePO4 Battery |
| Battery Capacity | ≥640Wh |
TWO MODELS
| Feature | AIS60-FB (Fixed Beacon) | AIS60-FL (Float Buoy) |
| Vertical Beam Angle | ≥2.5°, focused for fixed installations | ≥8°, wider to accommodate buoy movement |
| Installation Type | Rigid mount on walls, piers, or poles | Mounted on floating buoys or mooring systems |
| Light Stability | Stable and precise directional output | Wide beam to maintain visibility at all angles |
| Use Case | Daymarks, bridges, fixed shore signals | Offshore buoys, channel markers |
Drawings (mm)
