Solar Powered Marine Navigation Lights For Remote Buoys And Harbor Entrances
Product Summary
AIS-Enabled Solar LED Light for Remote Buoys Featuring digital light sensors, the lantern automatically adjusts brightness for optimal visibility and power savings. Don't need to do anything manually because you can get remote support via an optional chip. This is perfect for places that are hard to ...
Product Custom Attributes
Material:
Acrylic Lens,ABS+PC Base
Flash Mode:
256 Types(selectable)
Visible Range:
5–8 Nautical Miles
Ingress Protection:
IP68
Operating Temperature:
-35°C To +60°C
Solar Panel:
4*7W, High-efficiency Mono-solar Panel
Highlight:
Harbor Entrances Solar Navigation Lights
,Solar Navigation Lights For Remote Buoys
Basic Properties
Place of Origin:
Chengdu
Brand Name:
Dexon
Certification:
CE, ISO9001, IALA
Model Number:
SC160FL
Trading Properties
Minimum Order Quantity:
1
Price:
2500-3000
Packaging Details:
cartons/pallets
Delivery Time:
3～10 days
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability:
10000/month
Product Description

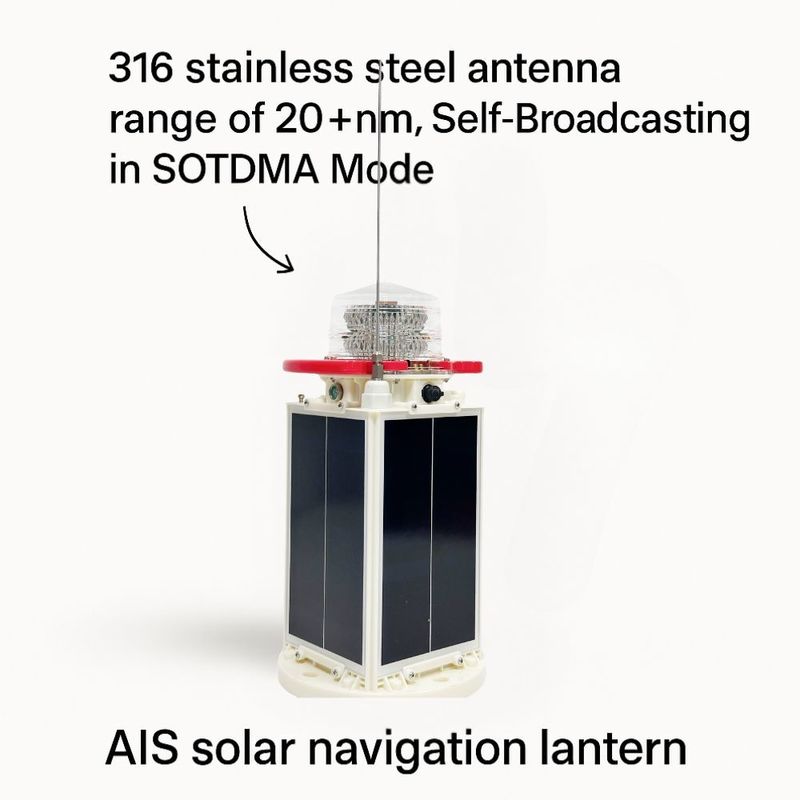

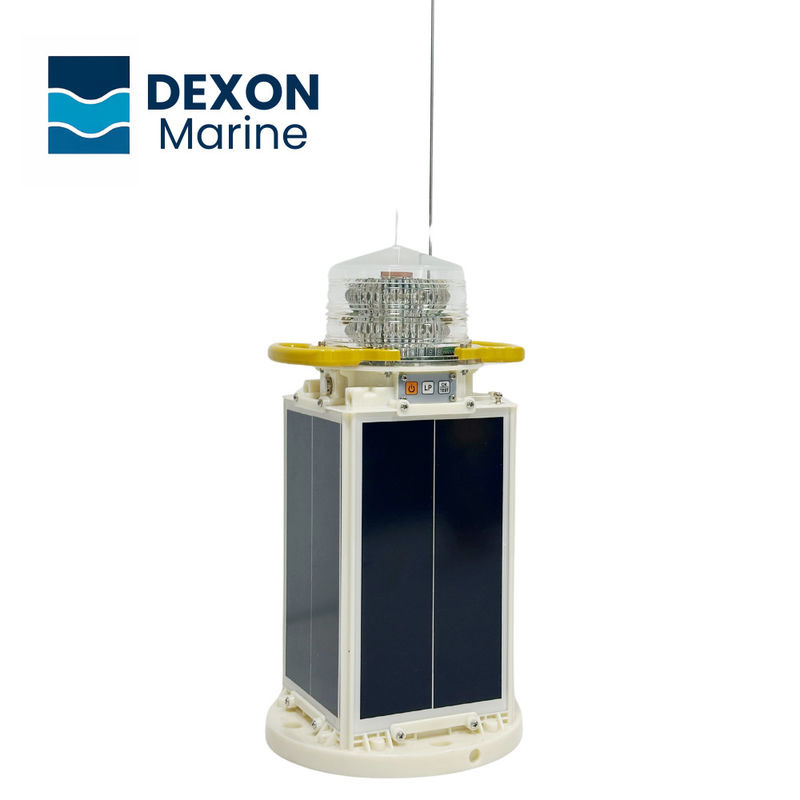

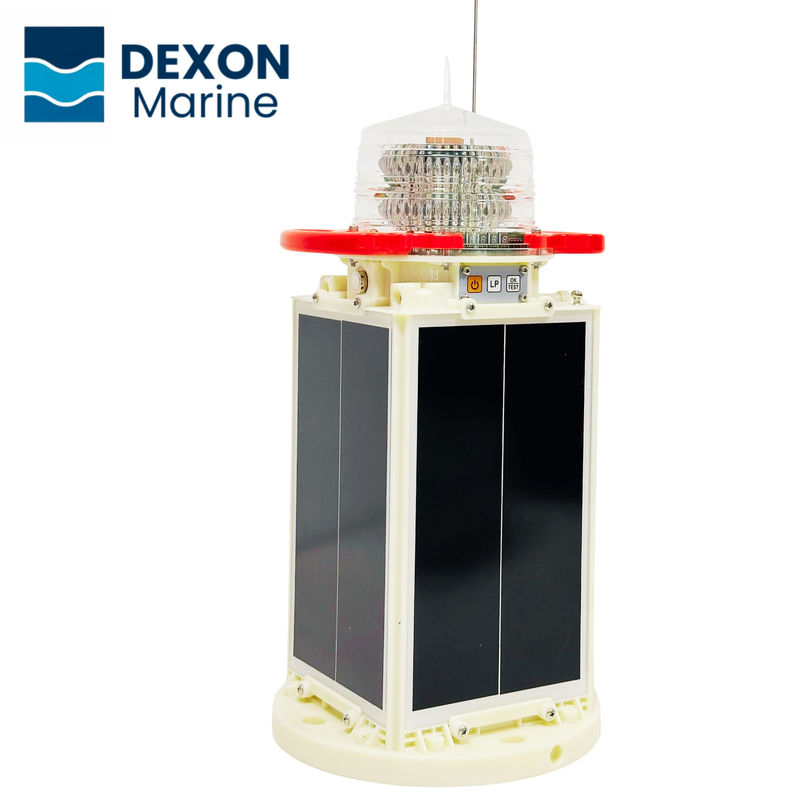

AIS-Enabled Solar LED Light for Remote Buoys
Featuring digital light sensors, the lantern automatically adjusts brightness for optimal visibility and power savings.
Don't need to do anything manually because you can get remote support via an optional chip. This is perfect for places that are hard to reach on the ocean.
This navigation light's mounting dimensions comply with the standard, so it can be used with new or existing buoy systems.
Supports full customization to match your project's colour, signal or power requirements.
Core advantages:
- Digital light sensor auto-adjusts brightness for better visibility and energy efficiency.
- Optional remote maintenance chip enables hands-free servicing in areas that are difficult to reach.
- Standard-compliant mounting fits both new and existing buoy systems.
- Fully customizable to meet specific color, signal, or power requirements.
- Ideal for unmanned marine sites needing smart, low-maintenance operation.
Product details
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Material
|
Acrylic lens,ABS+PC base
|
|
Flash Mode
|
256 types(selectable)
|
|
|
Light Colore
|
Red/Green/Yellow/White/Blue
|
|
|
Visible Range
|
5–8 nautical miles
|
|
|
Daylight Threshold
|
Digital photosensitive, adjustable threshold
|
|
|
Ingress Protection
|
IP68
|
|
|
Operating Temperature
|
-35°C to +60°C
|
|
|
Emission Angle
|
Floating Light ≥8°, Fixed Light ≥2.5°
|
|
|
Working Voltage
|
DC 10.5V – 14.4V
|
|
|
Parameter Loading
|
RS232 and onboard button
|
|
|
Solar Panel & Battery
|
Solar Panel
|
4*7W, high-efficiency mono-solar panel
|
|
Charging Current
|
Typical 400mA
|
|
|
Battery
|
LiFePO4 battery, capacity 640Wh
|
|
|
Continuous Operation
|
≥25 days (without sun)
|
|
|
AIS AtoN
|
Communication
|
Default Mode3-SOTDMA ,
(FATDMA / RATDMA / SOTDMA, adjustable) |
|
Operating Frequency
|
161.975MHz,162.025MHz (±0.5kHz)
|
|
|
Modulation Mode
|
GMSK / FSK
|
|
|
Transmission Power
|
1W / 2W / 5W / 6W / 12.5W (configurable)
|
|
|
Average Power Consumption
|
≤ 1W (continuous working mode),Low power mode ≤0.7W
|
|
|
Message Format
|
Supports standard AIS Message 21, 6; multiple formats selectable
|
|
|
W/D/K
|
Net Weight
|
9.3 kg
|
|
Dimensions
|
Floating Light: 240mm × 240mm × 489mm
|
|
|
Packaging Dimensions
|
277mm × 281mm × 537mm
|
|
|
Installation
|
Meets domestic and international installation standards
|
Drawings
Application
- Buoys
- Beacons
- Harbor Entrances
- Offshore Platforms
- Floating AtoN Installations
FAQ
1, Does the light adjust automatically?
Yes. A built-in digital sensor auto-adjusts brightness for efficiency and visibility.
2, Is remote servicing a possibility?
Yes. The optional chip facilitates remote maintenance, making it well suited to sites that are difficult to reach.
3, Whether the light is compatible with existing buoys?
Yes. This mounting is compatible with both new and retrofit buoy systems.
4, Is it possible to customise the specifications?
Yes, . It is possible to fully customise the colour, flash pattern and power settings.
5, What are the size and delivery time?
The light is 9.3 kg, packing size is 277×281×537 mm. Ships in 3–10 days worldwide.
