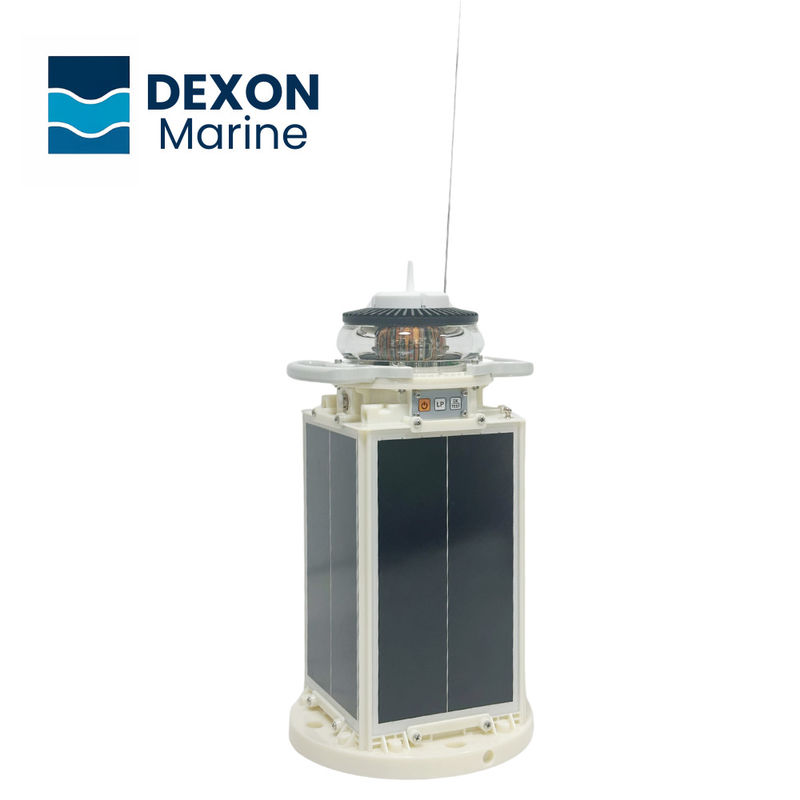

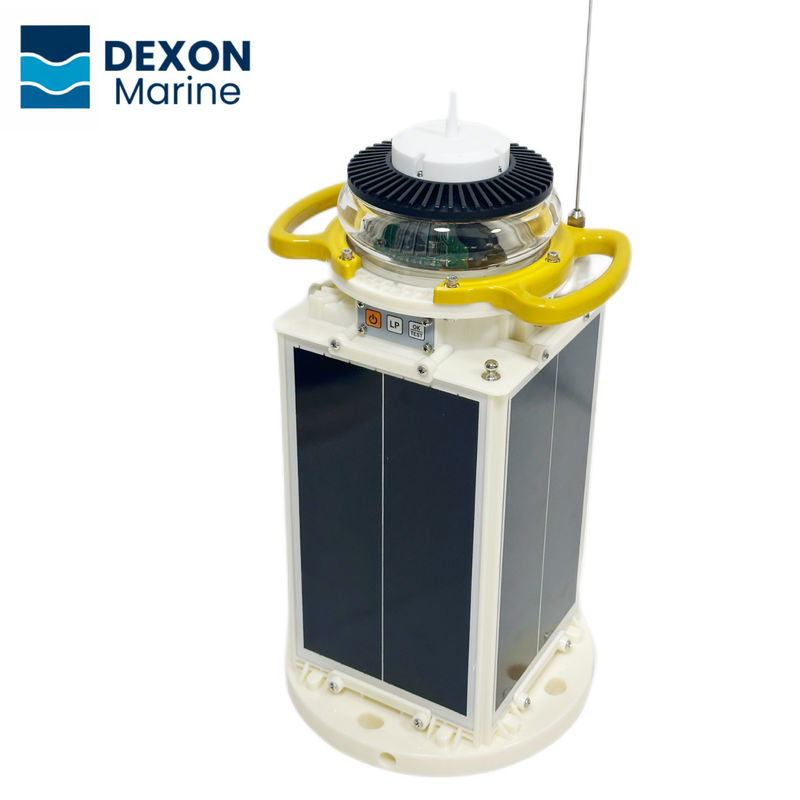

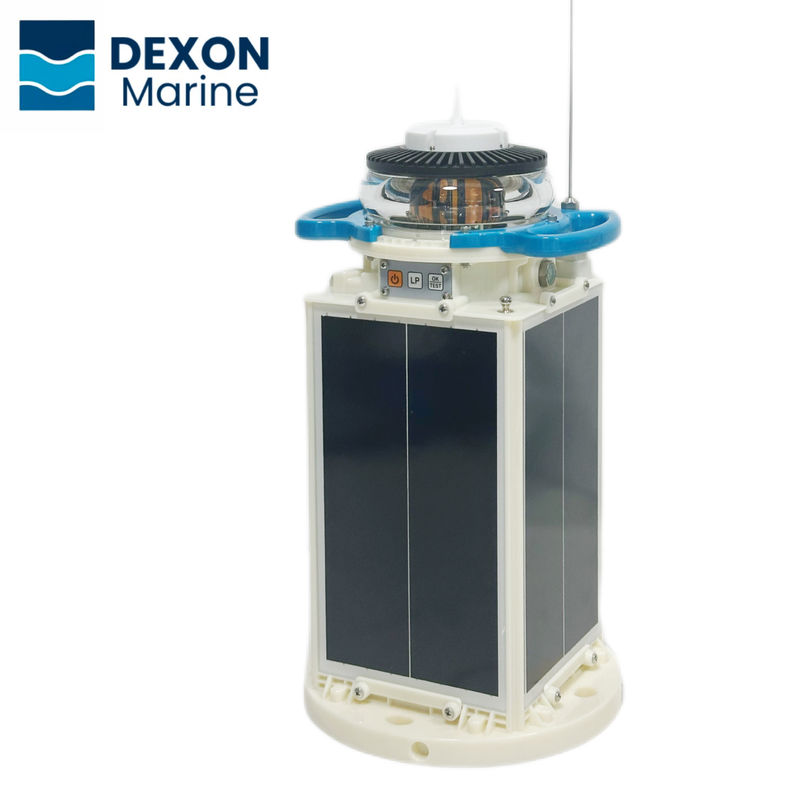

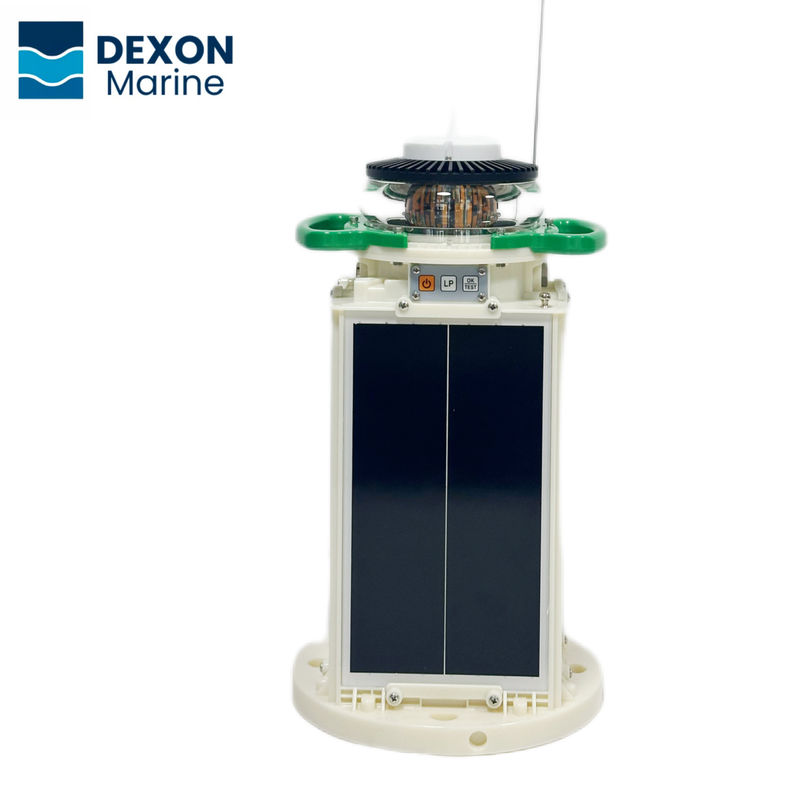

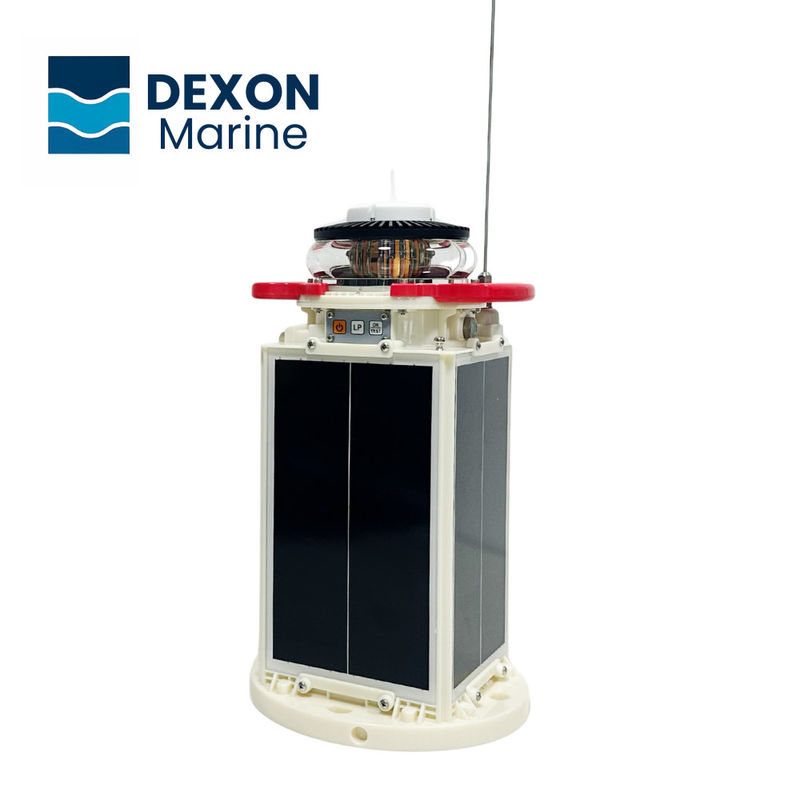

Wide Temp Solar AIS Navigation Lights Fully Submersible For All Climates
Product Summary
This high-performance AIS navigation light combines long-range VHF communication, rich signal flexibility, and exceptional environmental resilience. Offering a 3-year free replacement guarantee, it's trusted for coastal infrastructure, oil platforms, and channel marking. Its very efficient lighting ...
Product Custom Attributes
Highlight:
Solar AIS Navigation Lights
,Fully Submersible AIS Navigation Lights
Basic Properties
Place of Origin:
Chengdu
Brand Name:
Dexon
Certification:
CE, ISO9001, IALA
Model Number:
SC160FX
Trading Properties
Minimum Order Quantity:
1
Price:
2500-3000
Packaging Details:
cartons/pallets
Delivery Time:
3～10 days
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability:
10000/month
Product Description
This high-performance AIS navigation light combines long-range VHF communication, rich signal flexibility, and exceptional environmental resilience.
Offering a 3-year free replacement guarantee, it's trusted for coastal infrastructure, oil platforms, and channel marking.
Its very efficient lighting system delivers strong visibility to 8 nautical miles, ensuring maritime safety at sea all over the world.
Core advantages:
- Capable of delivering long-range VHF AIS communication, with flexible signal support.
- Engineered to withstand challenging conditions (-40°C~+60°C), ensuring consistent performance in coastal, platform and channel environments.
- Provides visibility of up to 8NM, with a highly efficient lighting system.
- Backed by a 3-year free replacement guarantee, providing customers with peace of mind.
- Ensure global maritime safety with trusted performance at sea.
Product structure
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Material
|
Acrylic lens, ABS+PC base
|
|
Flash Mode
|
256 types(adjustible)
|
|
|
Light Colore
|
White/Yellow/Red/Green/Blue
|
|
|
Visible Range
|
5–8NM
|
|
|
Daylight Threshold
|
Digital photosensitive, adjustable threshold
|
|
|
Waterprof
|
IP68
|
|
|
Operating Temperature
|
-35°C to +60°C
|
|
|
Emission Angle
|
Fixed Light ≥2.5°
|
|
|
Working Voltage
|
DC 10.5V – 14.4V
|
|
|
Parameter Loading
|
RS232 and onboard button
|
|
|
Solar Panel & Battery
|
Solar Panel
|
4 X 7W each side, mono-solar panel
|
|
Charging Current
|
Typical 400mA
|
|
|
Battery
|
LiFePO4 battery, capacity 640Wh
|
|
|
Continuous Operation
|
≥25 days (without sun)
|
|
|
AIS AtoN
|
Communication
|
Preset AIS Mode3-SOTDMA ,
(FATDMA / RATDMA / SOTDMA, adjustable) |
|
Operating Frequency
|
161.975MHz,162.025MHz (±0.5kHz)
|
|
|
Modulation Mode
|
GMSK / FSK
|
|
|
Transmission Power
|
1W / 2W / 5W / 6W / 12.5W (configurable)
|
|
|
Average Power Consumption
|
≤ 1W (continuous working mode),Low power mode ≤0.7W
|
|
|
Message Format
|
Supports standard AIS Message 21, 6; multiple formats selectable
|
|
|
W/D/K
|
Net Weight
|
9.3 kg
|
|
Dimensions
|
Fixed Light: 240mm × 240mm × 455mm
|
|
|
Packaging Dimensions
|
277mm × 281mm × 537mm
|
|
|
Installation
|
Support domestic and international installation standards
|
Drawings
Application
- Offshore Platforms
- Marine aids to navigation marking
- Beacons & Marinas Lighting
- Docks & Harbor Lighting
- Piers & Port Lighting
- Mooring Points
- Navigation Aids & Terminal Lighting
FAQ
1, What is the maximum range of the AIS signal?
The system provides long-range VHF AIS coverage of over 20 NM+.
2, Is it built for harsh environments?
Yes. It is able to operate in temperatures ranging from -35°C to +60°C in all marine conditions.
3, How visible is the light?
The range is up to 8 nautical miles when equipped with a high-efficiency lighting system.
4, What warranty is included?
3-Year Free Replacement for worry-free use.
5, What's the weight and delivery time?
The light is 9.3 kg, packing size is 277 x 281 x 537 mm. Orders are shipped within 3–10 days.
