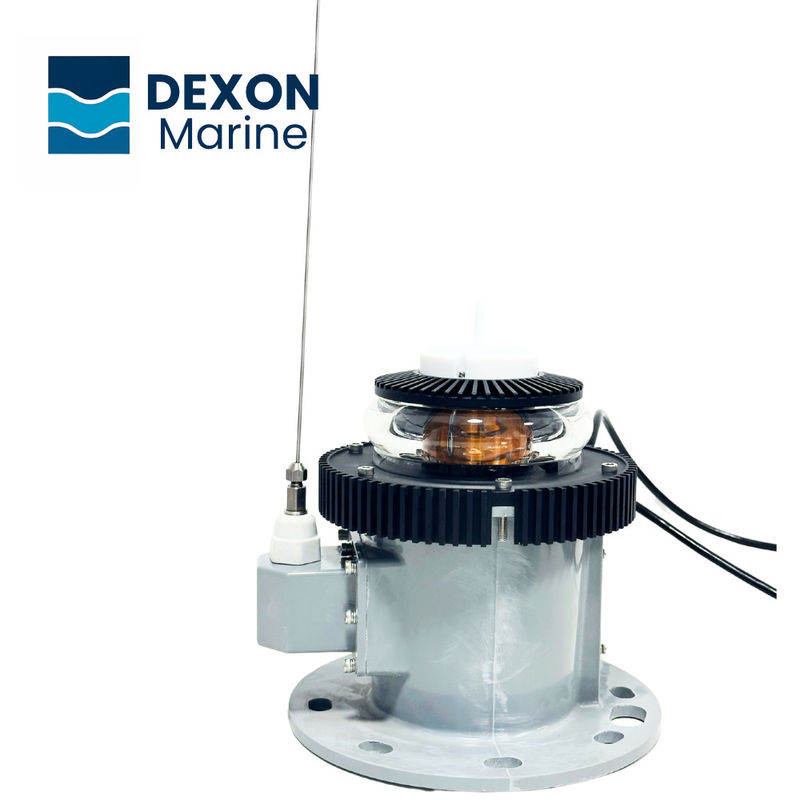

High Power LED Navigation Light for Boat— Weatherproof Marine Lantern – AIS External Port, -35°C to +65°C Operation
Product Summary
High-Power LED Navigation Light – the ideal solution for your business. Buoys ｜Beacons ｜Harbor Entrances ｜Offshore Platforms ｜Marinas Engineered for demanding environments, this navigation light operates in temperatures ranging from -35°C to +65°C, is IP68 waterproof certified, and features a ...
Product Custom Attributes
Color:
Red/Green/White/Yellow/Blue
Light Source:
LED
Operating Temperature:
-35°C To +65°C
Visibility Range:
5-11nautical Miles
Lens Material:
Optical Acrylic
Protection Level:
IP68
Highlight:
High Power Led Navigation Lantern
,LED Navigation Light With AIS AtoN
Basic Properties
Place of Origin:
Chengdu
Brand Name:
Dexon
Certification:
CE, ISO9001, IALA
Model Number:
DX-ML160
Trading Properties
Minimum Order Quantity:
1
Price:
USD 680～1000
Packaging Details:
cartons/pallets
Delivery Time:
3～10 days
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability:
10000/month
Product Description
High-Power LED Navigation Light – the ideal solution for your business.
Buoys ｜Beacons ｜Harbor Entrances ｜Offshore Platforms ｜Marinas
Engineered for demanding environments, this navigation light operates in temperatures ranging from -35°C to +65°C,
is IP68 waterproof certified, and features a corrosion-resistant SMC housing.
The high-performance LED achieves 464 candelas using a power consumption of just 6.6W.
Its stainless steel antenna ensures long-range AIS signal transmission, making it compatible with global vessel and shore-based systems.
Core advantages
- Capable of withstanding extreme conditions: -35°C to +65°C and is IP68 certified for waterproofing.
- Rugged SMC housing has been engineered to resist corrosion in saltwater environments.
- Long-range AIS functionality, supported by a stainless steel VHF antenna.
- Engineered to ensure reliability in offshore platforms and coastal waters.
- Certified protection is combined with high-performance signalling.
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Operating Voltage | DC 8V—32V, intelligent compatibility with DC 12V and 24V |
|
Flash Mode
|
256 adjustable options Brightness: Adjustable by percentage |
|
|
Light Colore
|
Red/Green/Yellow/White/Blue/Yellow-Blue | |
|
Illumination Distance
|
5—11nm @ 0.74T | |
|
Daylight Threshold
|
Digital light sensor, adjustable threshold | |
|
Waterproof Rating
|
IP68
|
|
|
Operating Temperature
|
-35°C to +65°C
|
|
|
Emission Angle
|
Fixed Light ≥2.5°
|
|
| Horizontal Max Luminous Intensity |
White: 2800cd/33.6W ｜ Red: 1955.9cd/19.8W Yellow: 1186cd/22.9W ｜ Blue: 663cd/33.6W Green: 1587cd/33.9W |
|
| LED Lifespan | >100,000 hours | |
|
Light features
|
Lens Material
|
Optical Acrylic |
| Lens Size | 155mm | |
| Shell Material | Composite SMC (Fiberglass) | |
| Charging Current | ≤10A | |
| Synchronous Flash | Synchronous flashing function | |
| Number of Layers | One or two layers controllable | |
|
Parameter Setting
|
RS232, Button
|
|
|
Installation Size
|
Conforms to domestic and international standards
|
|
| Weight | ≤2.6KG | |
| Product Size | 240*240*267mm |
Drawings
Application
- Buoys
- Beacons
- Harbor Entrances
- Offshore Platforms
- Floating AtoN Installations
- Fixed AtoN Installations
- Marinas
- Docks & Piers
- Channel Markers
FAQ
1, Can it handle harsh environments?
Yes. IP68-rated, corrosion-resistant SMC housing, -35°C to +65°C.
2,, Is the AIS range reliable offshore?
The stainless steel VHF antenna ensures long-range communication.
3, What’s the material quality?
Rugged SMC casing built to resist saltwater and impact.
4, Is it suitable for platforms and coasts?
Yes. Engineered for offshore rigs, beacons, and coastal lights.
5, Shipping and size details?
Weighs ≤2.6 kg, product size is 240×240×267 mm. Ships in 3–10 days.
