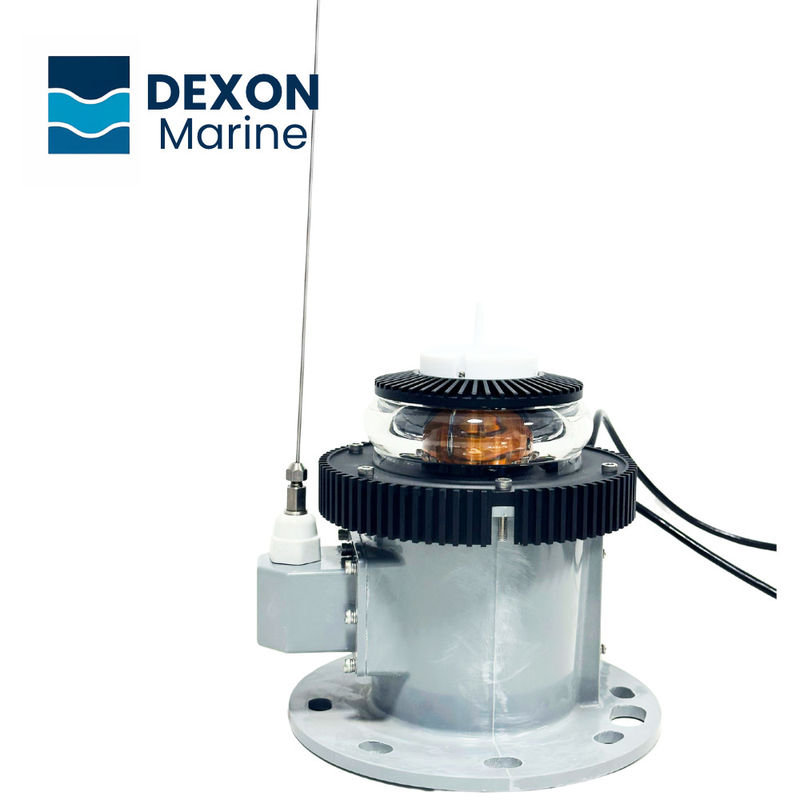

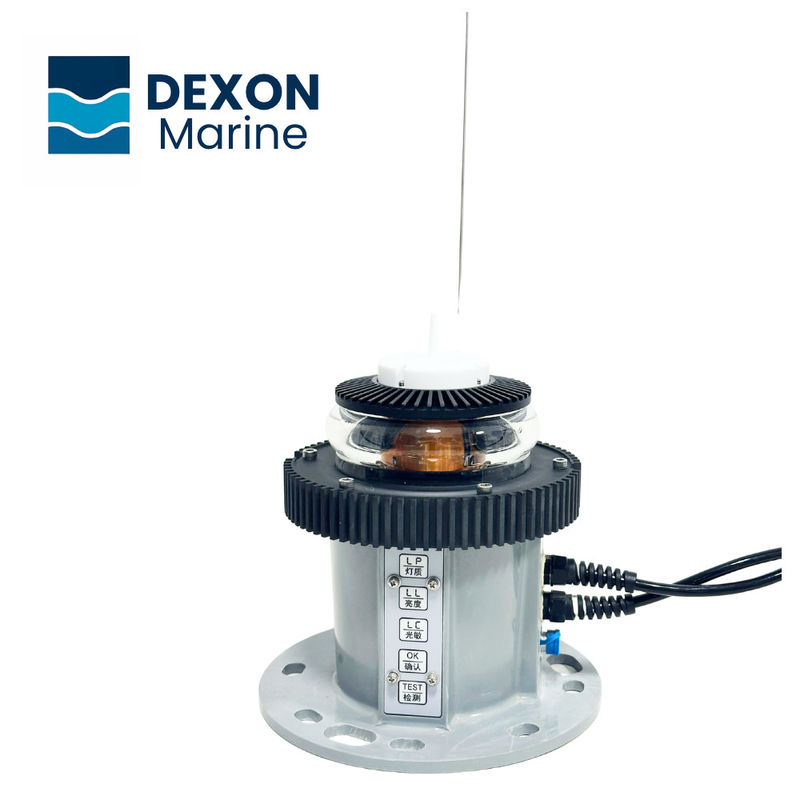

LED Marine Signal Light for Offshore Platforms – External AIS Supported
Product Summary
Present our state-of-the-art LED Signal Light, an innovative solution designed specifically for offshore platforms. Buoys ｜Beacons ｜Harbor Entrances ｜Offshore Platforms ｜Marinas This compact, IALA-compliant LED marine lantern has been designed for both floating and fixed AtoN installations. It ...
Product Custom Attributes
OEM Logo LED Marine Lanterns
,OEM Logo AIS Signal Light
Basic Properties
Trading Properties
Product Description
Buoys ｜Beacons ｜Harbor Entrances ｜Offshore Platforms ｜Marinas

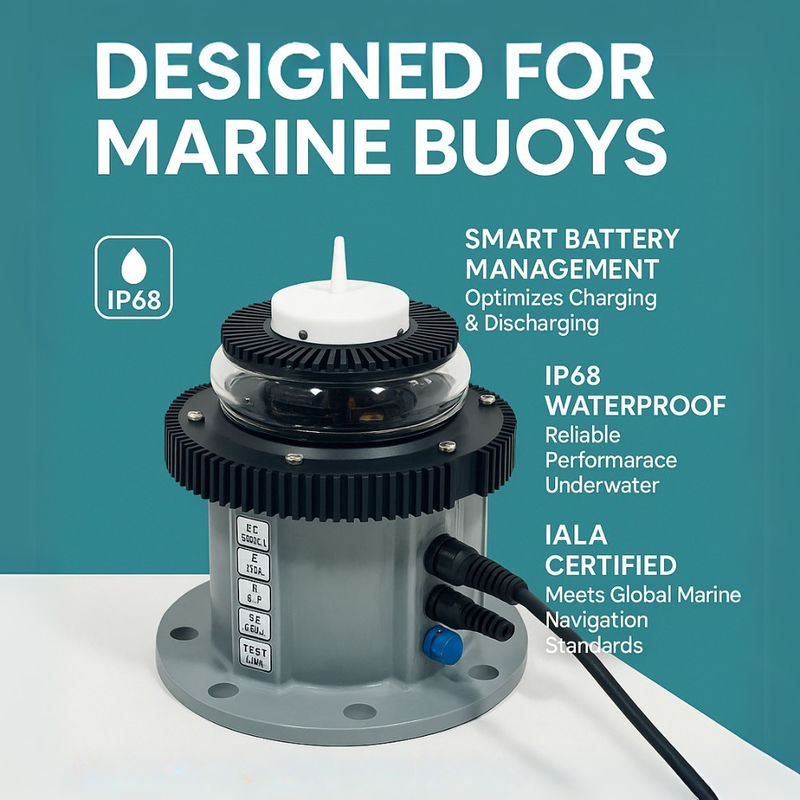

Core advantages
- IALA-compliant design—suitable for both floating and fixed AtoN installations.
- Built-in intelligent BMS extends battery life and reduces maintenance cycles.
- Compatible with external power sources for flexible deployment and energy stability.
- Fully sealed IP68 construction—reliable even in submerged and high-salinity environments.
- Supports external AIS integration for advanced navigational infrastructure.
- Compact, rugged, and ready for ports, channels, and offshore installations.
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Operating Voltage | DC 8V—32V, intelligent compatibility with DC 12V and 24V |
|
Flash Mode
|
256 adjustable options Brightness: Adjustable by percentage |
|
|
Light Color
|
Red/Green/Yellow/White/Blue/Yellow-Blue | |
|
Illumination Distance
|
5—11nm @ 0.74T | |
|
Daylight Threshold
|
Digital light sensor, adjustable threshold | |
|
Waterproof Rating
|
IP68
|
|
|
Operating Temperature
|
-35°C to +65°C
|
|
|
Emission Angle
|
Fixed Light ≥2.5°
|
|
| Horizontal Max Luminous Intensity |
White: 2800cd/33.6W ｜ Red: 1955.9cd/19.8W Yellow: 1186cd/22.9W ｜ Blue: 663cd/33.6W Green: 1587cd/33.9W |
|
| LED Lifespan | >100,000 hours | |
|
Light features
|
Lens Material
|
Optical Acrylic |
| Lens Size | 155mm | |
| Shell Material | Composite SMC (Fiberglass) | |
| Charging Current | ≤10A | |
| Synchronous Flash | Synchronous flashing function | |
| Number of Layers | One or two layers controllable | |
|
Parameter Setting
|
RS232, Button
|
|
|
Installation Size
|
Conforms to domestic and international standards
|
|
| Weight | ≤2.6KG | |
| Product Size | 240*240*267mm |
Drawings
Application
- Buoys
- Beacons
- Harbor Entrances
- Offshore Platforms
- Floating AtoN Installations
- Fixed AtoN Installations
- Marinas
- Docks & Piers
- Channel Markers
FAQ
1, Where can this light be installed?
IALA-compliant for both floating buoys and fixed AtoN setups.
2, Does it support external power sources?
Yes. Works with external power for stable, flexible deployment.
3, How durable is it in harsh marine environments?
IP68 sealed — waterproof and corrosion-resistant, even when submerged.
4, Does it require frequent maintenance?
No. Smart BMS extends battery life and reduces service intervals.
5, Can it integrate with AIS systems?
Yes. Compatible with external AIS for advanced navigation systems.
6, What are the size and shipping details?
product size is 240×240×267 mm, wight is ≤2.6 kg. Ships in 3–10 days worldwide.
