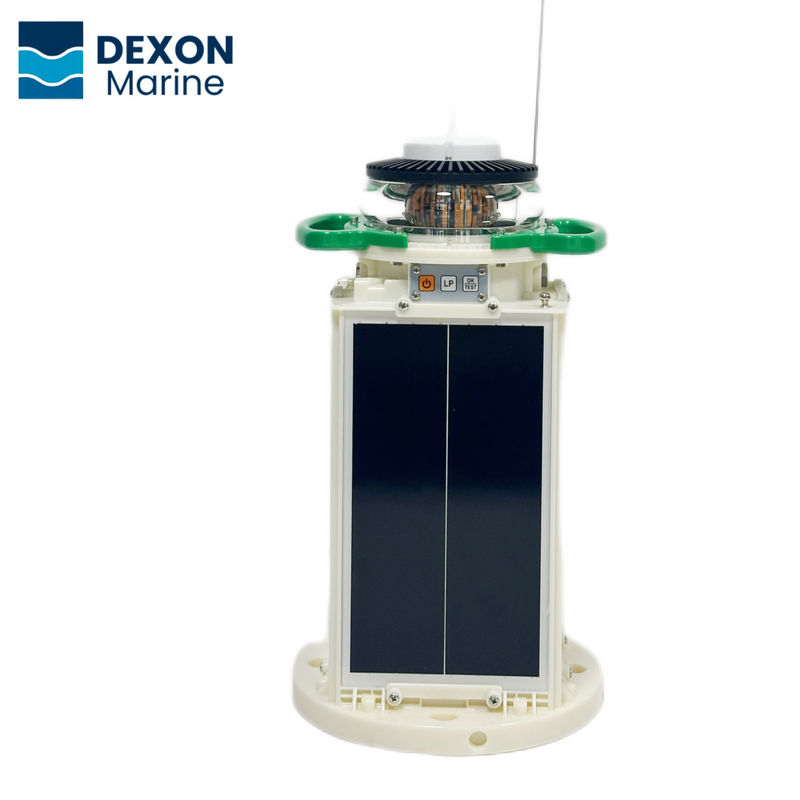

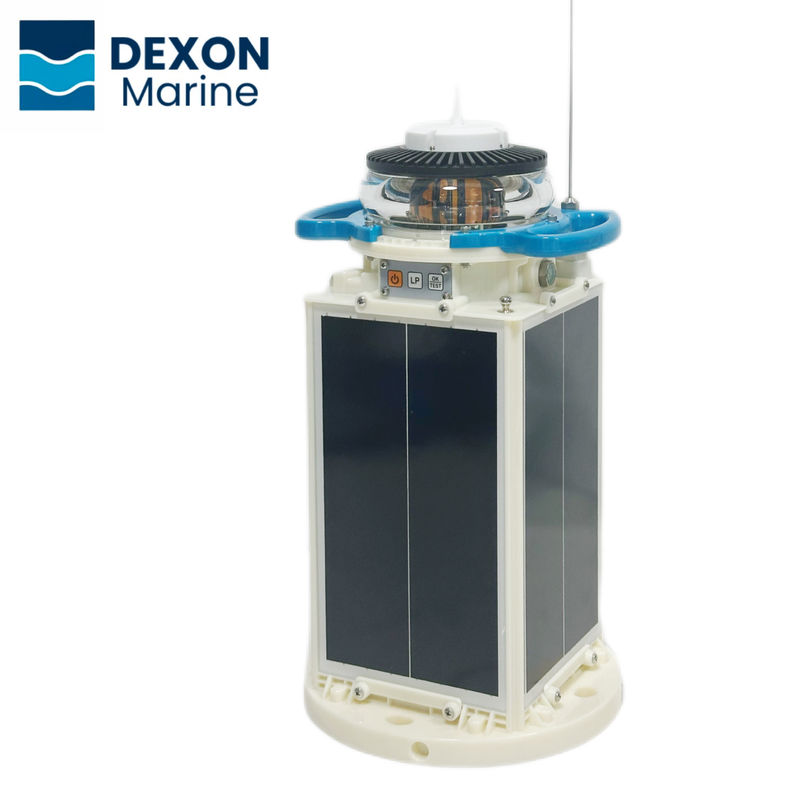

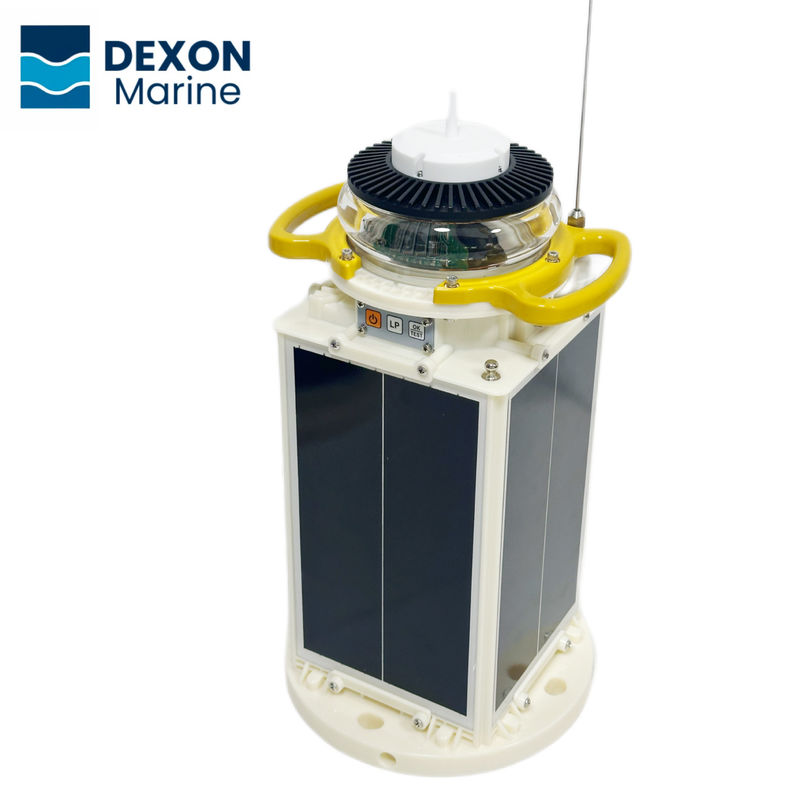

Off Grid Solar Powered Navigation Lights IP68 With AIS AtoN System

IP68 Solar Powered Navigation Lights

Off Grid Solar Navigation Lights

Solar Navigation Lights With AIS AtoN

Place of Origin:

Chengdu

Brand Name:

Dexon

Certification:

CE, ISO9001, IALA

Model Number:

AIS60FX

Request A Quote

Off Grid Solar Powered Navigation Lights IP68 With AIS AtoN System

Product Details

Flash Mode:

256 Types(adjustible)

Material:

Acrylic Lens, ABS+PC Base

Working Voltage:

DC 10.5V – 14.4V

Operating Temperature:

-35°C To +60°C

Waterproof Rating:

IP68

Type:

Solar Powered Navigation Lights

Visible Range:

5–8NM

Highlight:

IP68 Solar Powered Navigation Lights

Off Grid Solar Navigation Lights

Solar Navigation Lights With AIS AtoN

Payment & Shipping Terms

Minimum Order Quantity

Price

2500-3000

Packaging Details

cartons/pallets

Delivery Time

3～10 days

Payment Terms

D/A,D/P,T/T,Western Union,MoneyGram,L/C

Supply Ability

10000/month

Precision Ultrasonic Wind Speed And Direction Sensor Lightweight Robust Design

Get Best Price

Solar Powered Marine Navigation Lights For Remote Buoys And Harbor Entrances

Get Best Price

OEM Compact Solar Marine Lanterns LED Navigation Beacon Light With AIS AtoN Support

Get Best Price

5nm Battery Operated Marine Nav Lights Solar Powered Navigation Lights For Buoys

Get Best Price

Contact Now

Product Description

Built for the very harsh marine environments. It can operate in temperatures ranging from -35°C to +60°C, with a strong acrylic lens and durable ABS+PC base, which help it to last even when there is salt, ice or heat.

With 256 adjustable flash patterns and five colour options (red, yellow, green, blue, and white), which meet the full range of IALA marking standards.

Whether for fixed port lighting or floating AtoN installations, it is easy to customise and will always work well.

Off Grid Solar Powered Navigation Lights IP68 With AIS AtoN System 0

Core advantages

Name: Off Grid Solar Powered Navigation Lights IP68 With AIS AtoN System
Brand: Chengdu Dixin Technology Co., Ltd.
SKU: AIS60FX
Price: 2,750.00 USD
Availability: InStock

Withstands extreme weather from -35°C to +60°C, built for salt, ice, and heat.
Durable acrylic lens and ABS+PC base ensure long-lasting performance in harsh marine conditions.
Offers 256 flash patterns and 5 colors to meet all IALA marking standards.
Customizable for both fixed ports and floating AtoN installations.
Reliable operation across all types of seas and oceans, no matter what the challenge.

Product structureTechnical specification

			Category
			Specification
			Details

			Main features

			Material

			Acrylic lens, ABS+PC base

			Flash Mode

			256 types(adjustible)

			Light Colore

			White/Yellow/Red/Green/Blue

			Visible Range

			5–8NM

			Daylight Threshold

			Digital photosensitive, adjustable threshold

			Waterprof

			IP68

			Operating Temperature

			-35°C to +60°C

			Emission Angle

			Fixed Light ≥2.5°

			Working Voltage

			DC 10.5V – 14.4V

			Parameter Loading

			RS232 and onboard button

			Solar Panel & Battery

			Solar Panel

			4 X 7W each side, mono-solar panel

			Charging Current

			Typical 400mA

			Battery

			LiFePO4 battery, capacity 640Wh

			Continuous Operation

			≥25 days (without sun)

			AIS AtoN

			Communication

			Preset AIS Mode3-SOTDMA ,

(FATDMA / RATDMA / SOTDMA, adjustable)

			Operating Frequency

			161.975MHz,162.025MHz (±0.5kHz)

			Modulation Mode

			GMSK / FSK

			Transmission Power

			1W / 2W / 5W / 6W / 12.5W (configurable)

			Average Power Consumption

			≤ 1W (continuous working mode),Low power mode ≤0.7W

			Message Format

			Supports standard AIS Message 21, 6; multiple formats selectable

			W/D/K

			Net Weight

			9.3 kg

			Dimensions

Fixed Light: 240mm × 240mm × 455mm

			Packaging Dimensions

			277mm × 281mm × 537mm

			Installation

			Support domestic and international installation standards

Drawings
ApplicationOffshore Platforms
Marine aids to navigation marking
Beacons & Marinas Lighting
Docks & Harbor Lighting
Piers & Port Lighting
Mooring Points
Navigation Aids & Terminal Lighting
FAQ1, Can it handle extreme weather conditions?Yes. Operates from -35°C to +60°C — salt, ice, and heat resistant.

2, Is it suitable for all marine installations?
Yes. It is compatible with both fixed ports and floating AtoNs.

3, Are flash patterns and colors customizable?
Yes. 256 patterns and 5 IALA-compliant color options.

4, What are the weight and delivery details?
The light 9.3 kg, packing size 277×281×537 mm. Ships in 3–10 days globally.
