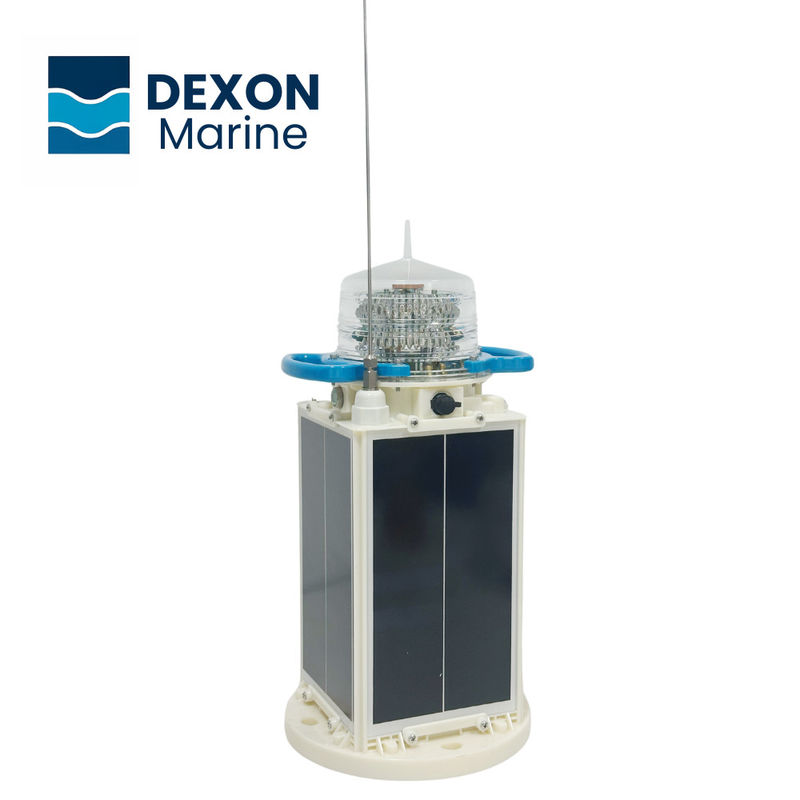

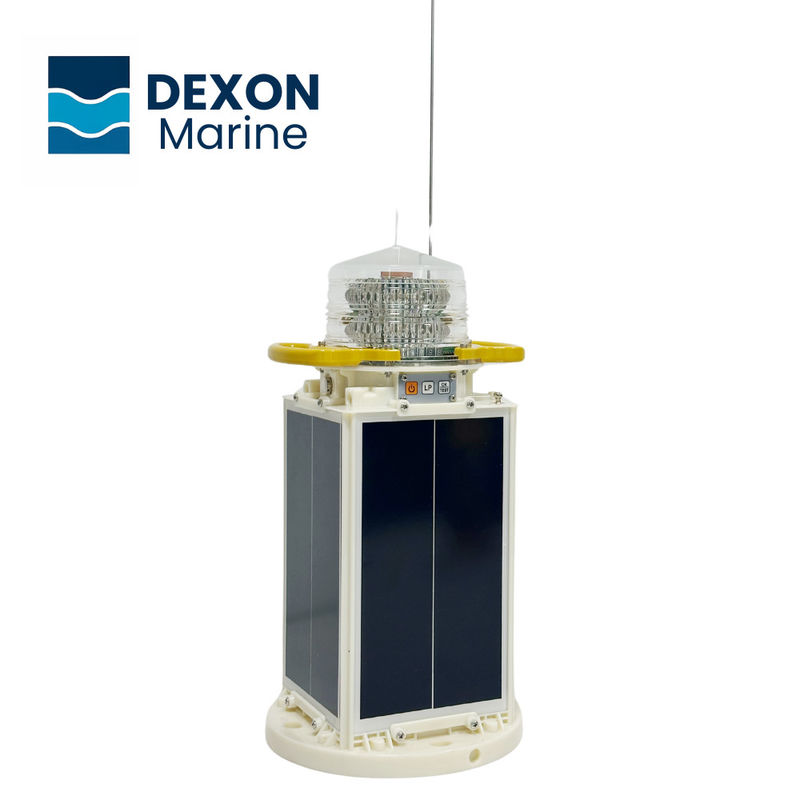

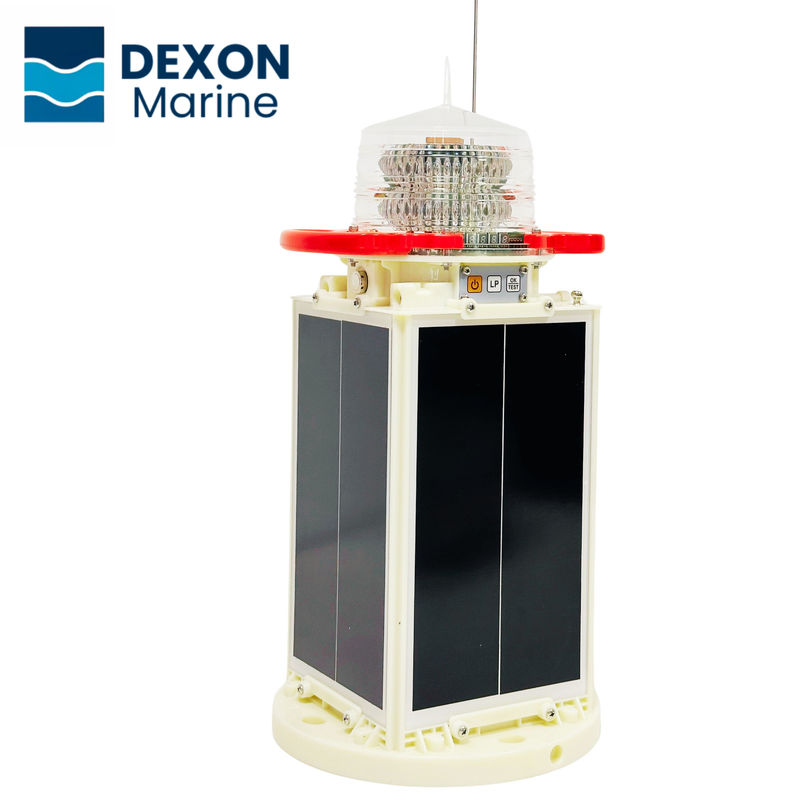

IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon
Product Summary
This marine navigation light was designed to use as little power as possible. You can choose how much power it uses, from 1W to 12.5W. This makes it perfect for using for a long time on remote buoys or offshore platforms. Equipped with a 3-metre high-gain 316 stainless steel antenna, which makes ...
Product Custom Attributes
Type:
Marine Navigation Light
Material:
Acrylic Lens,ABS+PC Base
Ingress Protection:
IP68
Operating Temperature:
-35°C To +60°C
Solar Panel:
4*7W, High-efficiency Mono-solar Panel
Visible Range:
5–8 Nautical Miles
Highlight:
IP68 Solar Marine Lanterns
,Solar Powered AIS AtoN Light
,AIS AtoN Light For Buoy
Basic Properties
Place of Origin:
Chengdu
Brand Name:
Dexon
Certification:
CE, ISO9001, IALA
Model Number:
SC160FL
Trading Properties
Minimum Order Quantity:
1
Price:
2500-3000
Packaging Details:
cartons/pallets
Delivery Time:
3～10 days
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability:
10000/month
Product Description
This marine navigation light was designed to use as little power as possible. You can choose how much power it uses, from 1W to 12.5W. This makes it perfect for using for a long time on remote buoys or offshore platforms.

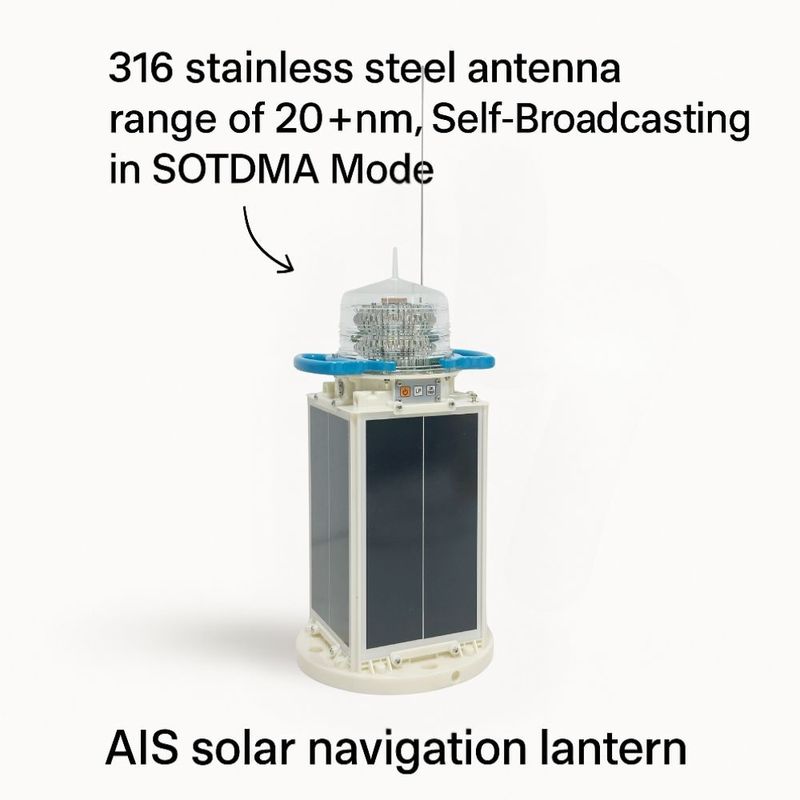

Equipped with a 3-metre high-gain 316 stainless steel antenna, which makes sure the AIS communication is stable up to 20NM+.
Compatible with all the main types of AIS, including SOTDMA, FATDMA and RATDMA, makes it can easily connect to different marine networks and marking systems.
Automatic light sensing, makes it more energy efficient, and its 5–8NM visual range improves visibility in key shipping lanes.
Core advantages
- Selectable 1–12.5W power range enables long-term operation on remote buoys and offshore platforms.
- 3m High-Gain 316 Stainless Steel Antenna, ensures stable AIS communication over 20NM
- Full AIS Mode Compatibility, SOTDMA, FATDMA, and RATDMA for seamless integration with various AIS marine systems.
- Automatic Light Sensing for Smarter Energy Use, adapts brightness to ambient light conditions, extending battery life and efficiency.
- 5–8NM Visibility Range for Reliable Navigation, enhances visual safety in critical waterways and shipping lanes.
Product details
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Material
|
Acrylic lens,ABS+PC base
|
|
Flash Mode
|
256 types(selectable)
|
|
|
Light Colore
|
Red/Green/Yellow/White/Blue
|
|
|
Visible Range
|
5–8 nautical miles
|
|
|
Daylight Threshold
|
Digital photosensitive, adjustable threshold
|
|
|
Ingress Protection
|
IP68
|
|
|
Operating Temperature
|
-35°C to +60°C
|
|
|
Emission Angle
|
Floating Light ≥8°, Fixed Light ≥2.5°
|
|
|
Working Voltage
|
DC 10.5V – 14.4V
|
|
|
Parameter Loading
|
RS232 and onboard button
|
|
|
Solar Panel & Battery
|
Solar Panel
|
4*7W, high-efficiency mono-solar panel
|
|
Charging Current
|
Typical 400mA
|
|
|
Battery
|
LiFePO4 battery, capacity 640Wh
|
|
|
Continuous Operation
|
≥25 days (without sun)
|
|
|
AIS AtoN
|
Communication
|
Default Mode3-SOTDMA ,
(FATDMA / RATDMA / SOTDMA, adjustable) |
|
Operating Frequency
|
161.975MHz,162.025MHz (±0.5kHz)
|
|
|
Modulation Mode
|
GMSK / FSK
|
|
|
Transmission Power
|
1W / 2W / 5W / 6W / 12.5W (configurable)
|
|
|
Average Power Consumption
|
≤ 1W (continuous working mode),Low power mode ≤0.7W
|
|
|
Message Format
|
Supports standard AIS Message 21, 6; multiple formats selectable
|
|
|
W/D/K
|
Net Weight
|
9.3 kg
|
|
Dimensions
|
Floating Light: 240mm × 240mm × 489mm
|
|
|
Packaging Dimensions
|
277mm × 281mm × 537mm
|
|
|
Installation
|
Meets domestic and international installation standards
|
Drawings
Application
- Beacons
- Floating AtoN Installations
- Buoys
- Harbor Entrances
- Offshore Platforms
FAQ
1, What’s the power range and intended use?
Selectable 1–12.5W, making it ideal for use with remote buoys and offshore platforms.
2, How stable the AIS signal is?
The 3M 316 stainless steel antenna is designed to ensure a >20NM AIS range.
3, Whether it supports all AIS modes?
Yes, SOTDMA, FATDMA and RATDMA are all supported.
4, Whether the brightness is auto-adjustable?
Yes, intelligent light sensors are able to adapt to the surrounding environment.
5, What's the information on the visibility and delivery time?
Visible at a range of 5–8NM. Orders are shipped within 3–10 days. Box dimensions: 277×281×537 mm.
