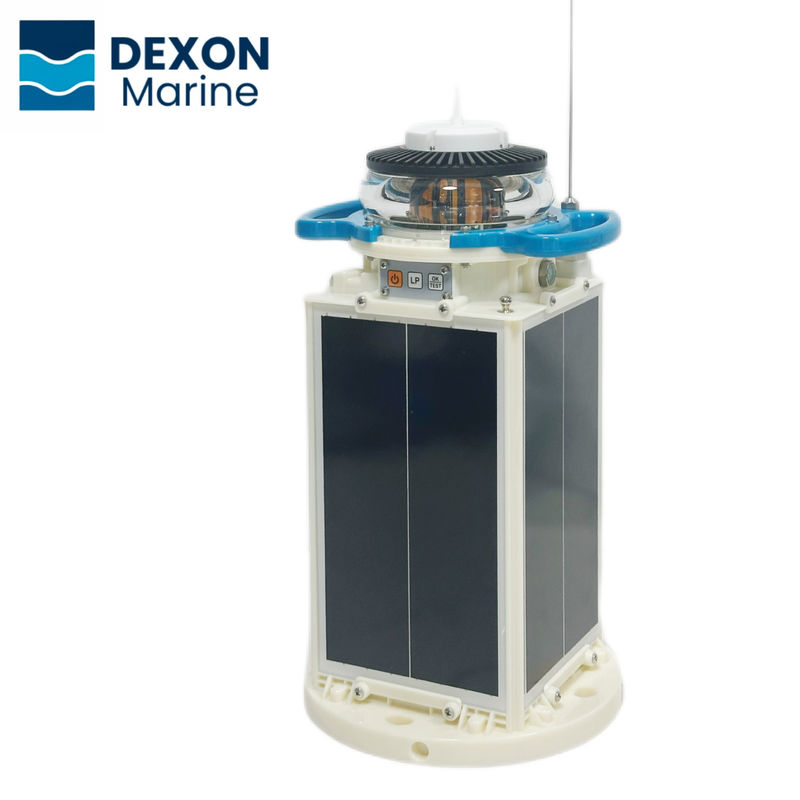

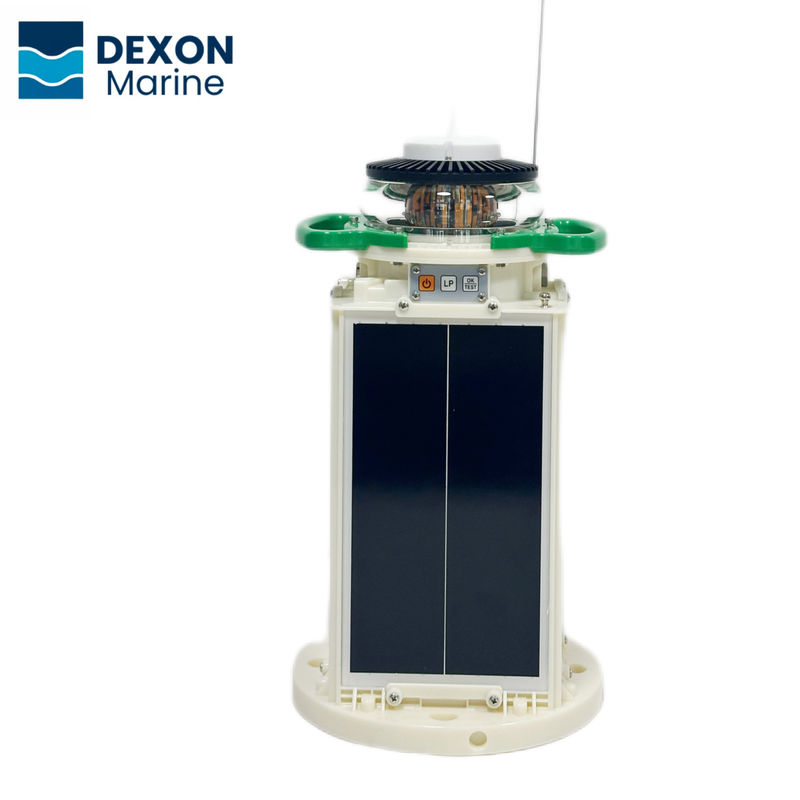

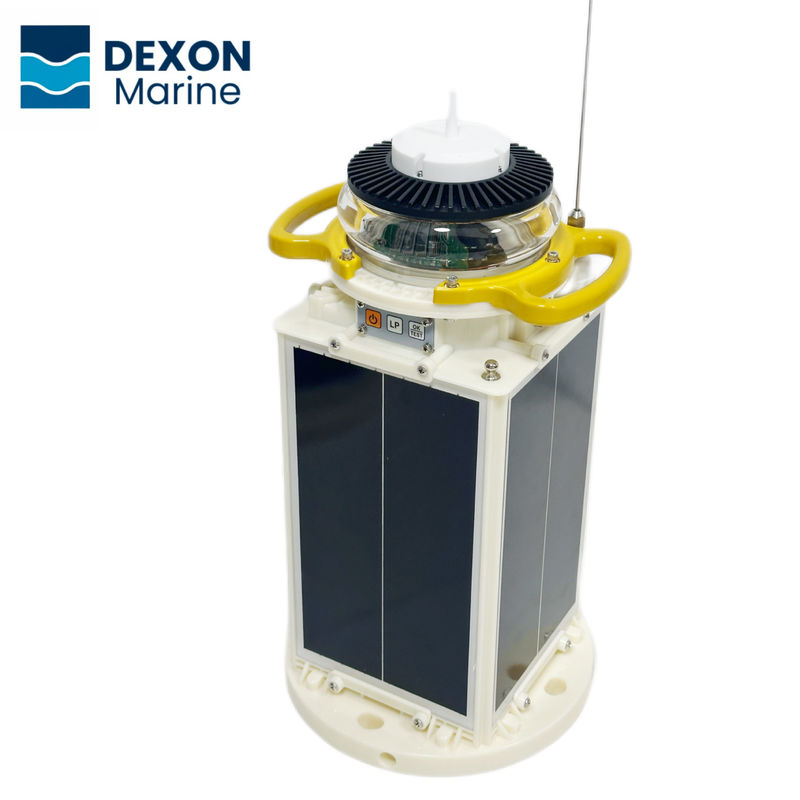

AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons
Product Summary
AIS AtoN｜Compatible solar navigation light Waterproof｜Off-grid ｜For buoys and beacons Built for the very harsh marine environments. It can operate in temperatures ranging from -35°C to +60°C, with a strong acrylic lens and durable ABS+PC base, which help it to last even when there is salt, ice or ...
Product Custom Attributes
Material:
Acrylic Lens, ABS+PC Base
Working Voltage:
DC 10.5V – 14.4V
Operating Temperature:
-35°C To +60°C
Waterproof Rating:
IP68
Certifications:
CE, RoHS, ISO,IEC, IALA
Visible Range:
5–8NM
Battery Capacity:
LifePO4 Battery ≥486Wh @4000times DOD
Lifespan:
15 Years
Colore:
White, Red, Yellow, Green, Blue
Installation Method:
Screw Mounting
Light Angel:
Buoy Light ≥8°, Fixed Light ≥2.5°
Service:
Logo OEM, ODM, Customized Detailed Requiements
Highlight:
IP68 Solar Powered Navigation Lights
,Off Grid Solar Navigation Lights
,Solar Navigation Lights With AIS AtoN
Basic Properties
Place of Origin:
Chengdu
Brand Name:
Dexon
Certification:
CE, ISO9001, IALA
Model Number:
SC160FX
Trading Properties
Minimum Order Quantity:
1
Price:
USD2500-3000
Packaging Details:
cartons/pallets
Delivery Time:
3～10 days
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability:
10000/month
Product Description
AIS AtoN｜Compatible solar navigation light
Waterproof｜Off-grid ｜For buoys and beacons
Waterproof｜Off-grid ｜For buoys and beacons
Built for the very harsh marine environments. It can operate in temperatures ranging from -35°C to +60°C, with a strong acrylic lens and durable ABS+PC base, which help it to last even when there is salt, ice or heat. With 256 adjustable flash patterns and five colour options (red, yellow, green, blue, and white), which meet the full range of IALA marking standards. Whether for fixed port lighting or floating AtoN installations, it is easy to customise and will always work well.
Core advantages
- Withstands extreme weather from -35°C to +60°C, built for salt, ice, and heat.
- Durable acrylic lens and ABS+PC base ensure long-lasting performance in harsh marine conditions.
- Offers 256 flash patterns and 5 colors to meet all IALA marking standards.
- Customizable for both fixed ports and floating AtoN installations.
- Reliable operation across all types of seas and oceans, no matter what the challenge.
Product structure
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Material
|
Acrylic lens, ABS+PC base
|
|
Flash Mode
|
256 types(adjustible)
|
|
|
Light Colore
|
White/Yellow/Red/Green/Blue
|
|
|
Visible Range
|
5–8NM
|
|
|
Daylight Threshold
|
Digital photosensitive, adjustable threshold
|
|
|
Waterprof
|
IP68
|
|
|
Operating Temperature
|
-35°C to +60°C
|
|
|
Emission Angle
|
Fixed Light ≥2.5°
|
|
|
Working Voltage
|
DC 10.5V – 14.4V
|
|
|
Parameter Loading
|
RS232 and onboard button
|
|
|
Solar Panel & Battery
|
Solar Panel
|
4 X 7W each side, mono-solar panel
|
|
Charging Current
|
Typical 400mA
|
|
|
Battery
|
LiFePO4 battery, capacity 640Wh
|
|
|
Continuous Operation
|
≥25 days (without sun)
|
|
|
AIS AtoN
|
Communication
|
Preset AIS Mode3-SOTDMA , (FATDMA / RATDMA / SOTDMA, adjustable) |
|
Operating Frequency
|
161.975MHz,162.025MHz (±0.5kHz)
|
|
|
Modulation Mode
|
GMSK / FSK
|
|
|
Transmission Power
|
1W / 2W / 5W / 6W / 12.5W (configurable)
|
|
|
Average Power Consumption
|
≤ 1W (continuous working mode),Low power mode ≤0.7W
|
|
|
Message Format
|
Supports standard AIS Message 21, 6;
multiple formats selectable
|
|
|
W/D/K
|
Net Weight
|
9.3 kg
|
|
Dimensions
|
Fixed Light: 240mm × 240mm × 455mm
|
|
|
Packaging Dimensions
|
277mm × 281mm × 537mm
|
|
|
Installation
|
Support domestic and international installation standards
|
Drawings
Application
- Offshore Platforms
- Marine aids to navigation marking
- Beacons & Marinas Lighting
- Docks & Harbor Lighting
- Piers & Port Lighting
- Mooring Points
- Navigation Aids & Terminal Lighting
FAQ
1, Can it handle extreme weather conditions?
Yes. Operates from -35°C to +60°C — salt, ice, and heat resistant.
2, Is it suitable for all marine installations?
Yes. It is compatible with both fixed ports and floating AtoNs.
3, Are flash patterns and colors customizable?
Yes. 256 patterns and 5 IALA-compliant color options.
4, What are the weight and delivery details?
The light 9.3 kg, packing size 277×281×537 mm. Ships in 3–10 days globally.
