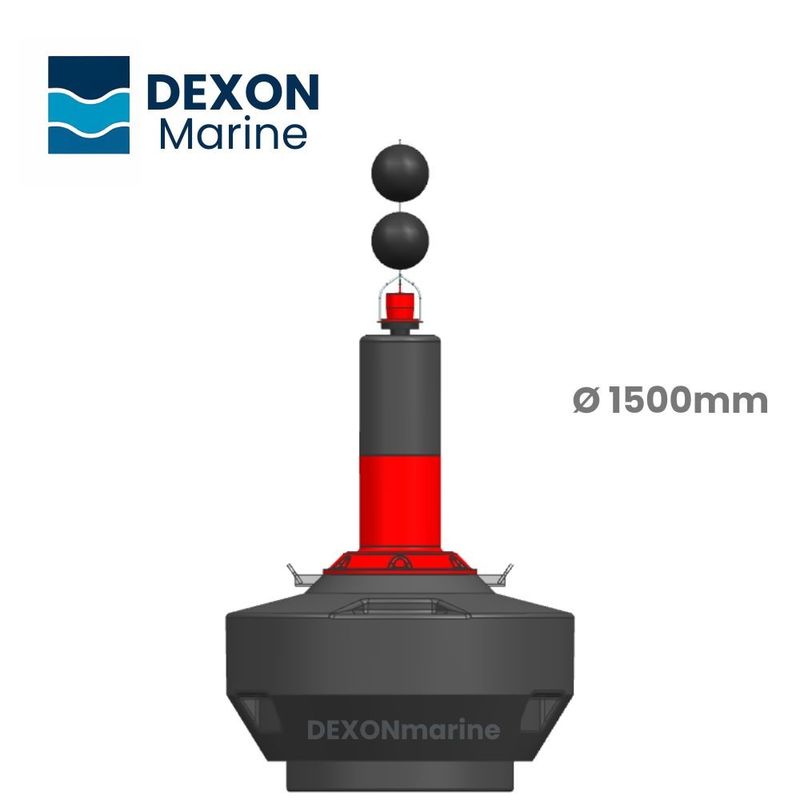

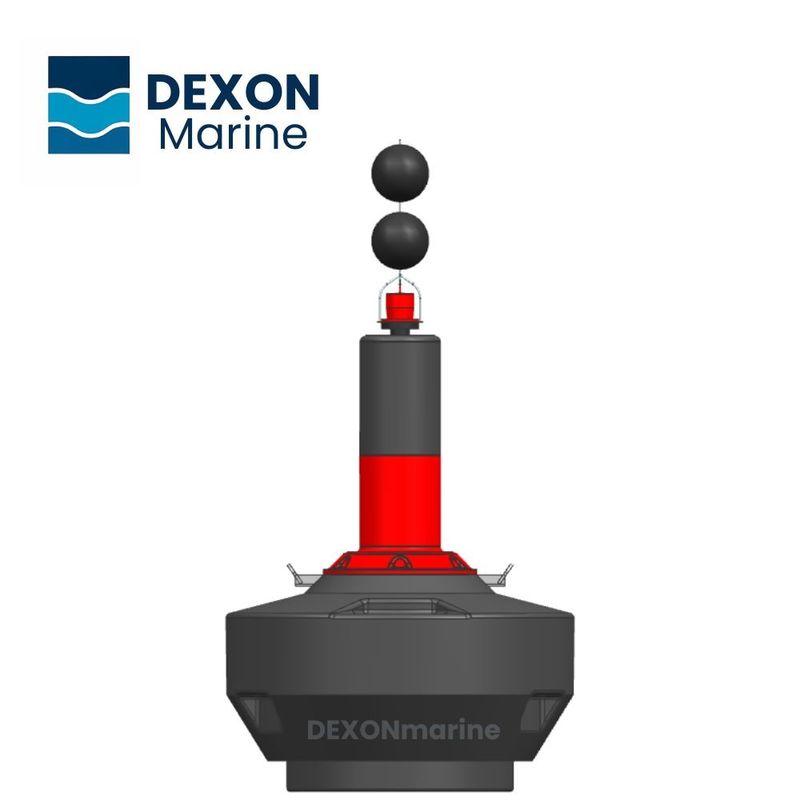

The Dexonmarine DMF1500 Isolated Danger Marine Navigation Buoy is a 1500mm diameter navigation buoy designed to perform in challenging marine environments, rivers, ports, harbors, and estuaries. It is capable of withstanding water currents of up to 5 knots, making it an excellent solution for hazard marking and marine navigation in dynamic water conditions.
Diameter: ∅1500mm
Application: Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.
The DMF1500 Isolated Danger Marine Navigation Buoy is an excellent choice for sea and river marking, offering exceptional value for money. Dexonmarine's innovative design and high-quality manufacturing are showcased in this buoy. It features a durable polyethylene shell, EPS foam core, two lifting points, and a galvanized steel mooring eye for secure anchorage. It also includes lifting handles, cast iron ballasts, a removable mast, and a rigid topmark, making it a reliable, long-lasting solution for marine navigation and hazard marking..
Optional Equipment: Radar reflectors and marine lanterns
TECHNICAL DATA
| General Characteristics |
| Color |
Red, Green, White, Yellow as per IALA Recommendations |
| Diameter |
1500mm |
| Height (no topmark) |
1956 mm |
| Material |
Polyethylene |
| Filling |
EPS Foam |
| Buoyancy |
900KG |
| Balance Weight |
120KG |
| Focal Plane |
From 1760 mm |
| Structure, Lifting & Mooring Points |
S235 galvanized steel (SS316 option available) |
| Float and Mast |
UV-stabilized grade 16 Polyethylene high density. Rotational moulding |
| Ballasts |
Cast Iron. Removable |
| Topmark |
Rotomolded Polyethylene, PVC, and Nylon, Aluminum * |
| Eco-Friendly |
Recyclable polyethylene. Heavy metal-free. No ecological damages |
| Certifications |
| IALA |
Compliant to IALA E-108 |
| Quality Assurance |
ISO9001:2015 |
MORE INFORMATION
TOP-NOTCH MATERIALS
Body Composition: Built with LLDPE (Linear Low-Density Polyethylene) for maximum durability and resistance to extreme marine environments.
Internal Structure: EPS (Expanded Polystyrene) foam filling for excellent buoyancy and insulation properties.
Mooring Components: Galvanized steel mooring points provide exceptional strength and longevity.
Visibility Marking: Rigid PVC & Nylon topmark ensures clear visibility and long-term use.
Environmental Consideration: Made from 100% recyclable polyethylene, free of heavy metals, and non-toxic to the environment.
FLOATING AND STABILITY FEATURES
Buoyancy Control: Designed to perform optimally with buoyancy adjusted based on local salinity and current conditions.
Weight Customization: Optional balance weights are available for fine-tuning the buoy's stability based on environmental factors.
Anchoring System: Customizable mooring chains tailored to the specific installation environment, ensuring reliable anchorage.
RECOMMENDED LIGHTING SOLUTIONS
Fitted with Dexonmarine's LED self-contained lanterns to provide efficient, long-lasting illumination.
Available in Red, Green, White, and Yellow colors to meet specific regulatory or marking requirements.
DRAWING(mm)
