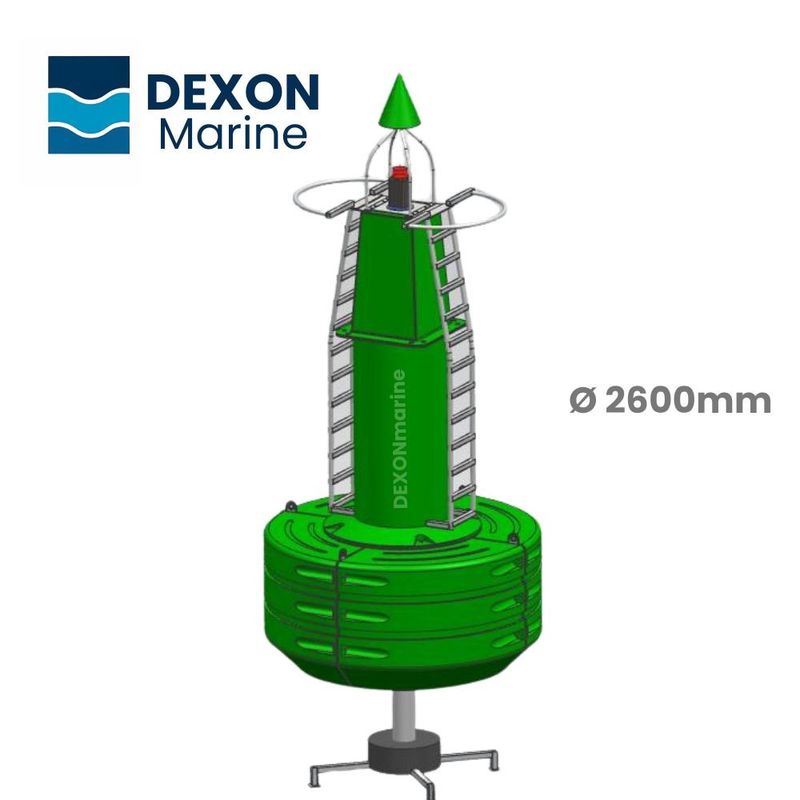

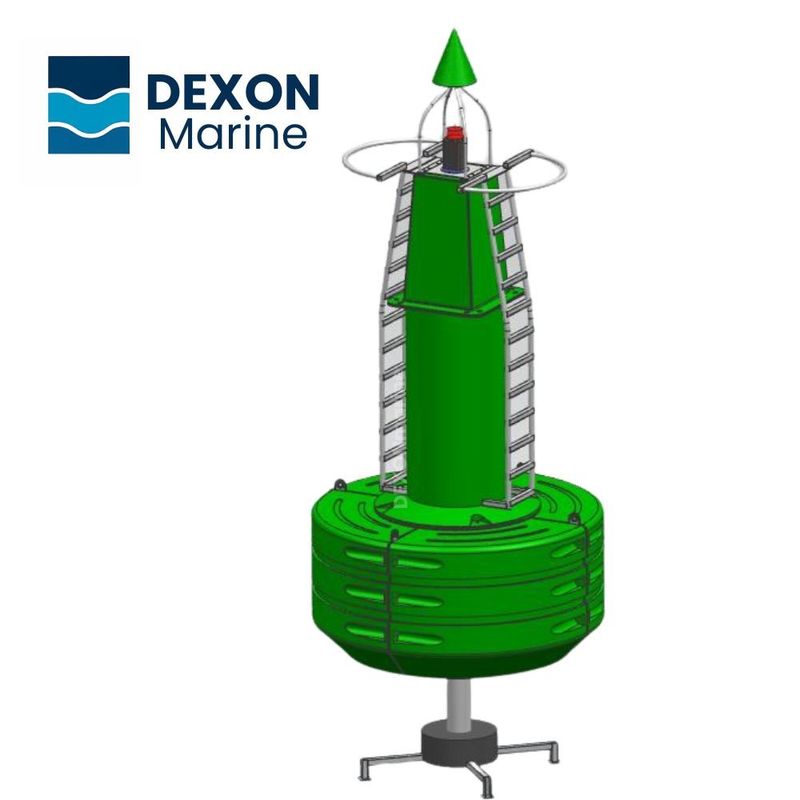

The Dexonmarine DMF2600 Lateral Navigation Buoy, with a buoyancy of 4000kg, is ideal for offshore channel marking, deep-water fairways, and high-current marine environments requiring stable, long-duration deployment.
Diameter: ∅2600mm
Application: Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.
The Dexonmarine DMF2600 Lateral Buoy is engineered to meet the demands of highly exposed marine environments and offshore navigation projects. Engineered with a modular float system and aluminum mast, the DMF2600 supports integration of solar panels, 10NM+ marine lanterns, and AIS systems, making it a robust solution for long-range coastal and deep-sea channel marking.
Optional Equipment: Marine lanterns
TECHNICAL DATA
| General Characteristics |
| Color |
Red, Green, White, Yellow as per IALA Recommendations |
| Diameter |
2600mm |
| Height (with topmark) |
6891 mm |
| Material |
Polyethylene |
| Filling |
EPS Foam |
| Structure, Lifting & Mooring Points |
S235 galvanized steel (SS316 option available) |
| Float and Mast |
UV-stabilized grade 16 Polyethylene high density. Rotational moulding |
| Ballasts |
Cast Iron. Removable |
| Topmark |
Rotomolded Polyethylene, PVC, and Nylon, Aluminum * |
| Eco-Friendly |
Recyclable polyethylene. Heavy metal-free. No ecological damages |
| Certifications |
| IALA |
Compliant to IALA E-108 |
| Quality Assurance |
ISO9001:2015 |
MORE INFORMATION
MARINE-GRADE MATERIALS BUILT FOR EXTREME CONDITIONS
Shell Construction: The oversized 2600mm LLDPE shell is engineered for maximum durability, with superior resistance to UV rays, heavy impact, and offshore saltwater corrosion.
Core: EPS foam filling ensures stable buoyancy and internal strength, supporting up to 4000kg of flotation capacity.
Mooring: Heavy-duty hot-dip galvanized steel lifting and mooring points ensure secure anchoring in high-current, deep-sea conditions.
Topmark: Built with reinforced PVC and nylon, the topmark meets IALA lateral marking standards and maintains visibility over long distances.
Eco-Safe: Constructed from recyclable, marine-grade polyethylene, fully free of toxins and heavy metals.
STABLE PERFORMANCE FOR DEEP-WATER DEPLOYMENTS
Floatation: Calibrated for large-volume buoyancy and consistent vertical alignment in deep and turbulent waters.
Stability: Supports custom counterweights to maintain performance in harsh offshore wave and current conditions.
Anchoring: Designed for integration with large-scale modular mooring systems and adaptable to complex seabed terrains.
INTEGRATED HIGH-RANGE MARINE LIGHTING
The DMF2600 can be fitted with 10NM LED lanterns or AIS lanterns, ensuring long-range visibility in all weather conditions.
Available in IALA-compliant colors—Red, Green, White, and Yellow—for standardized marine navigation and safe channel guidance.
DRAWING(mm)
