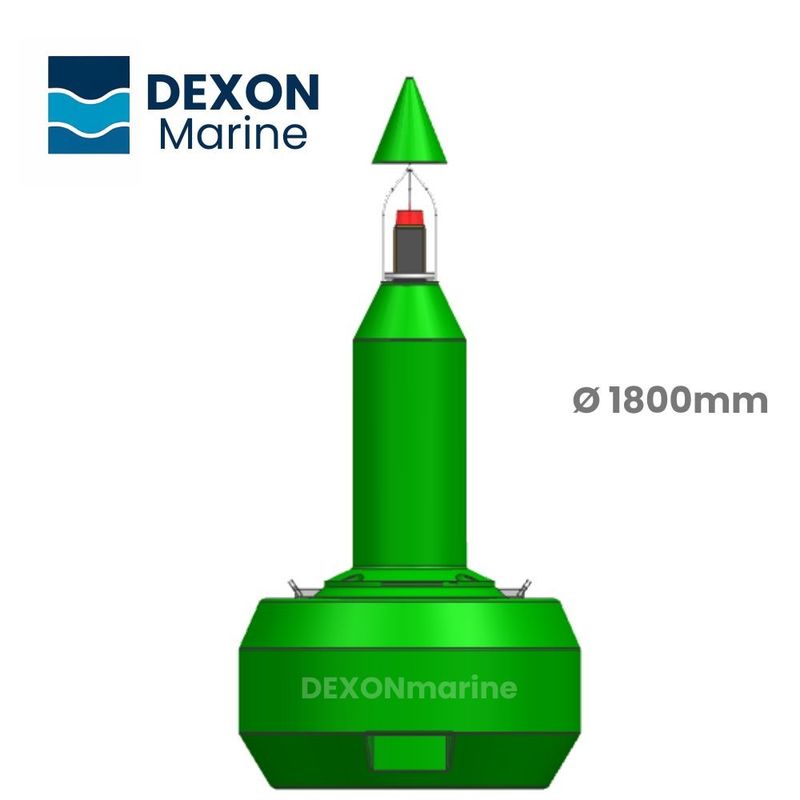

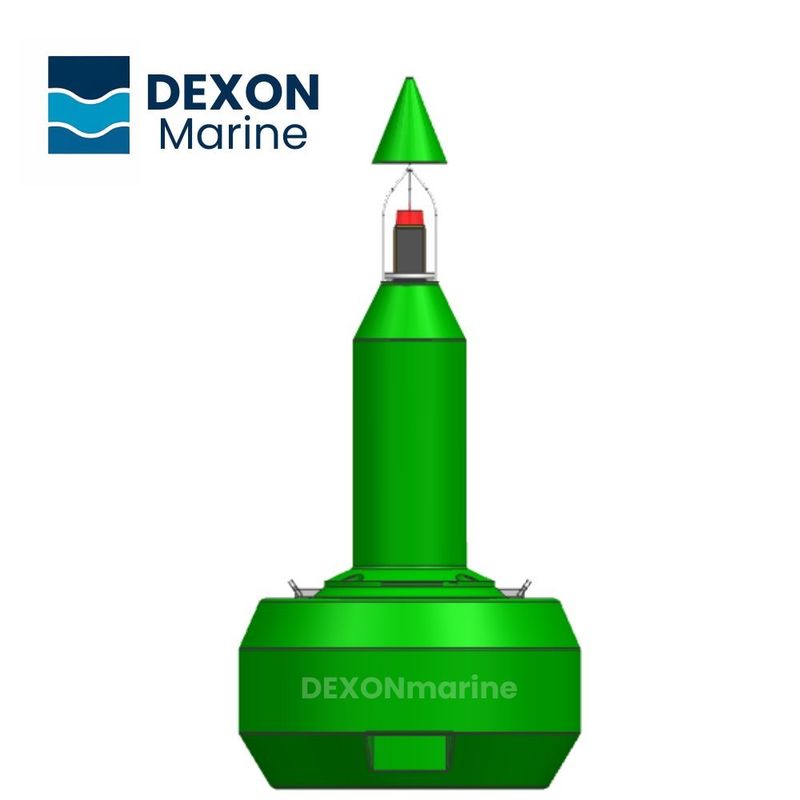

The Dexonmarine DMF1800 IALA-Compliant Lateral Navigation Buoy with 10NM LED lantern is built for deep-sea, port, and river applications, offering high-visibility channel marking in currents up to 6 knots.
Diameter: ∅1800mm
Application: Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.
The Dexonmarine DMF1800 IALA-Compliant Lateral Navigation Buoy with optional 10NM LED lantern is built for reliable channel marking in offshore, deep-sea, and port environments. It features a durable polyethylene shell, EPS foam core, radar reflector, galvanized steel lifting/mooring points, cast iron ballast, a removable mast, and a high-visibility IALA topmark. Designed for tough conditions and strong currents, it ensures long-term performance and safe marine navigation.
Optional Equipment: Radar reflectors and marine lanterns
TECHNICAL DATA
| General Characteristics |
| Color |
Red, Green, White, Yellow as per IALA Recommendations |
| Diameter |
1800mm |
| Height (no topmark) |
2712 mm |
| Material |
Polyethylene |
| Filling |
EPS Foam |
| Buoyancy |
1800KG |
| Balance Weight |
160KG |
| Focal Plane |
From 2035 mm |
| Structure, Lifting & Mooring Points |
S235 galvanized steel (SS316 option available) |
| Float and Mast |
UV-stabilized grade 16 Polyethylene high density. Rotational moulding |
| Ballasts |
Cast Iron. Removable |
| Topmark |
Rotomolded Polyethylene, PVC, and Nylon, Aluminum * |
| Eco-Friendly |
Recyclable polyethylene. Heavy metal-free. No ecological damages |
| Certifications |
| IALA |
Compliant to IALA E-108 |
| Quality Assurance |
ISO9001:2015 |
MORE INFORMATION
MARINE-GRADE MATERIALS FOR LONG-LASTING OFFSHORE USE
Shell Construction: Made of durable LLDPE, built to resist UV, impact, and seawater corrosion—ideal for long-term offshore deployment.
Core: EPS foam filling ensures reliable buoyancy and structural integrity in open-sea conditions.
Mooring: Hot-dip galvanized lifting and mooring points offer secure, corrosion-resistant anchorage.
Topmark: Reinforced PVC and nylon topmark provides high visibility and meets IALA lateral buoy standards.
Eco-Safe: Produced with recyclable, non-toxic materials for environmentally responsible navigation marking.
STABLE FLOATATION FOR HARSH MARINE CONDITIONS
Floatation: Maintains consistent positioning in varying salinity and strong currents.
Stability: Configurable ballast setup supports offshore balance and vertical alignment.
Anchoring: Modular mooring compatibility ensures secure installation in diverse seabed environments.
INTEGRATED 10NM MARINE LIGHTING
The Dexonmarine DMF1800 IALA-Compliant Offshore Lateral Navigation Buoy includes an optional 10NM LED lantern, providing long-range visibility for offshore, port, and river applications.
Available in IALA colors—Red, Green, White, and Yellow—for all lateral and special marking needs.
DRAWING(mm)
