Maritime safety 5nm Red Green Yellow White IALA colors Solar Powered AIS LED Navigation Light for boat ship buoy with factory price
20NM AIS Range｜SOTDMA Mode｜IALA certified

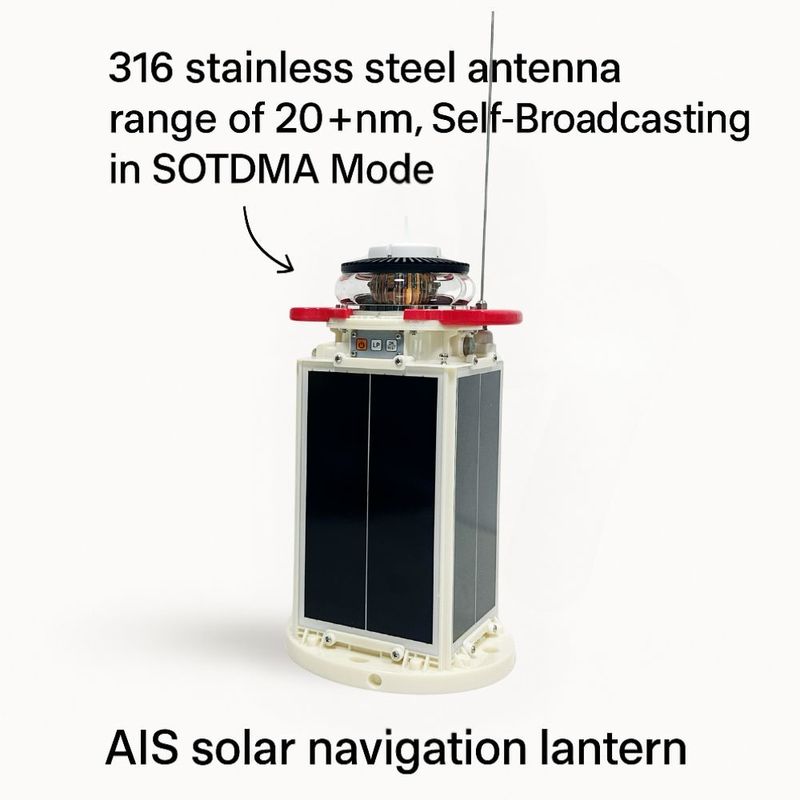

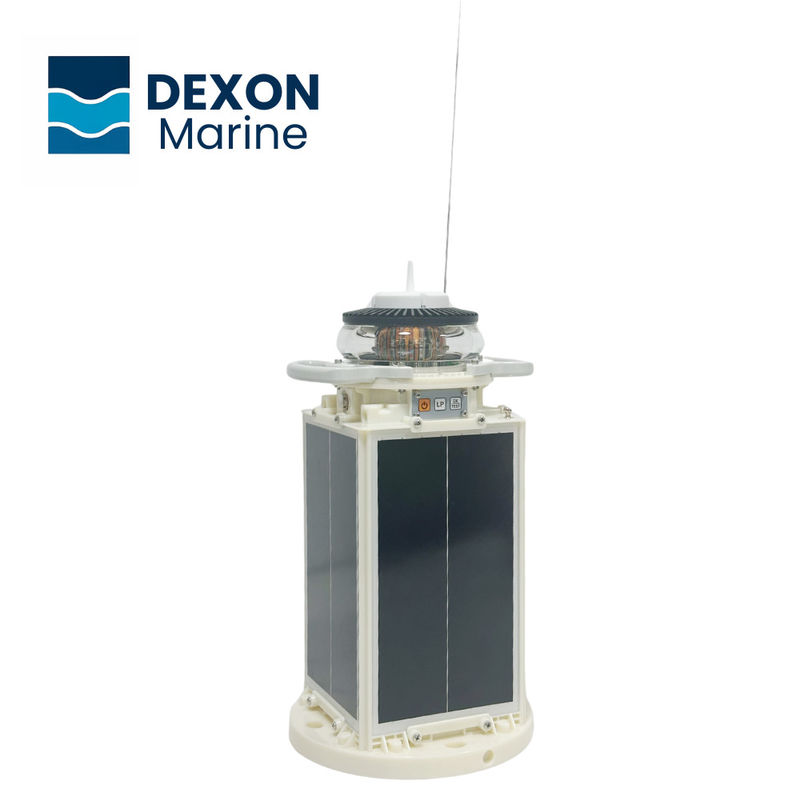

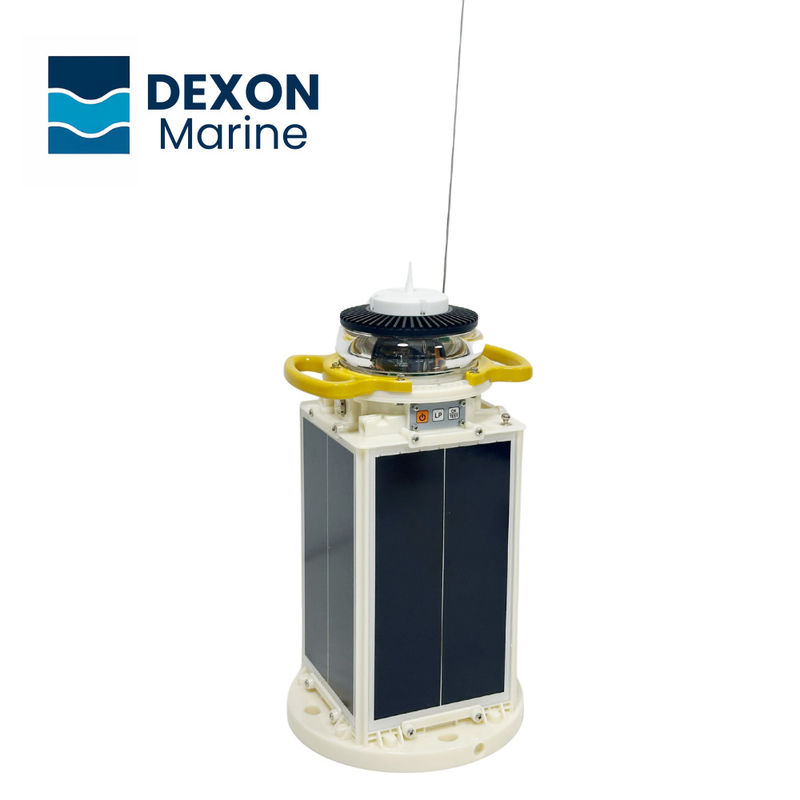

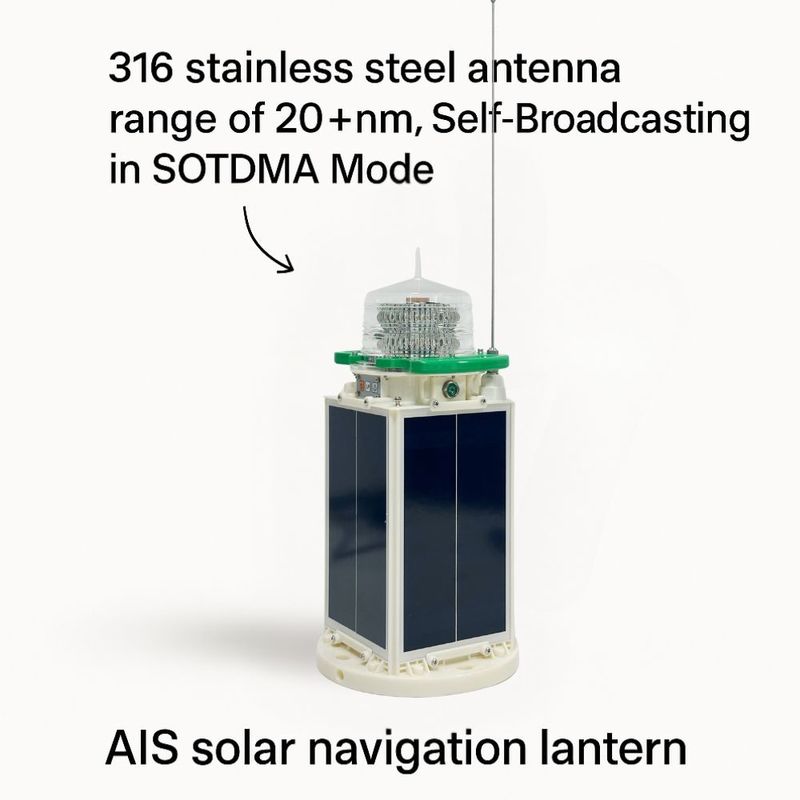

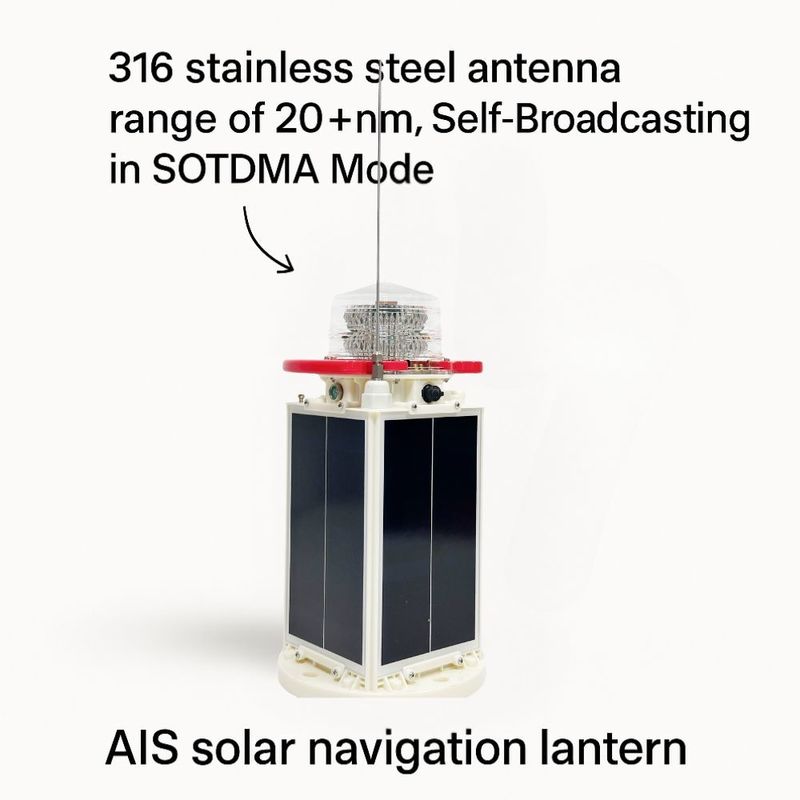

The DX-SC160 is a fully integrated AIS LED navigation light designed for buoys, ships, and coastal aids. It combines solar panel, battery, AIS transponder, and LED lantern in one compact IP68 unit, eliminating the need for external wiring or power supply.
With dual-mode GPS + Beidou positioning, it supports AIS Messages 6, 8, 21, and 14, enabling real-time transmission of light status, location, and battery data to monitoring platforms. Available in full IALA colors (Red, Green, Yellow, White), the DX-SC160 is ideal for 5NM range safety marking.
Certified to CE and ISO9001, and supporting OEM customization, it's a reliable, low-maintenance solution for maritime authorities and offshore projects worldwide.
KEY ADVANTAGES
- The AIS60 All-in-one Solar Navigation Lantern is available in two models: Type I and Type III. These models meet international maritime standards.
- This product supports standard AIS messages (Messages 21, 6, and 8), and it is capable of additional messages such as Messages 7, 12, 20, and 25.
- It offers two AIS transmit power options: ≤6W and ≤12.5W, ensuring effective communication over various distances.
- It offers 256 IALA-compliant flashing patterns, accompanied by a comprehensive guide.
- The device offers dual-mode positioning with Beidou and GPS, ensuring precise navigation data.
- This Solar Navigation Lantern is available in five colors and features adjustable brightness levels (0 to 5). It is customizable for different buoy environments.
- The visibility range is from 3 to 8 nautical miles, and the AIS signal transmission range is up to 25 nautical miles.
- Remote maintenance checks are conducted via an additional chip, thereby eliminating the need for manual inspections at the buoy.
TECHNICAL DATA
| Category |
Specification |
Details |
| Overall Features |
Operating Voltage |
DC: 10.5V—14.4V |
| Solar Panels |
Vertical: 4x7W |
| Charging Current |
Typical value 400mA |
| Operating Temperature |
-35°C to +60°C |
| Parameter Loading |
RS232, Button |
| Waterproof Level |
IP68 |
| Net. Weight |
9.3kg |
| Dimensions |
Buoy Light: 240mm x 240mm x 489mm |
| |
Fixed Light: 240mm x 240mm x 455mm |
| Packaging Dimensions |
277mm x 281mm x 537mm |
| Installation Dimensions |
Compliant with domestic and international standards |
| Continuous Operation in Overcast/Rainy Conditions |
≥25 days |
| AIS Features |
Operating Frequency |
161.975MHz, 162.025MHz |
| Modulation Mode |
GMSK/FSK |
| Frequency Error |
±0.5kHz |
| Transmission Power |
1W 2W 5W 6W 12.5W (select option) |
| Average Power Consumption |
Continuous mode ≤1W (Low power mode ≤0.7W) |
| Message Format |
Messages 21, 6 adjustable, supports multiple formats |
| Operating Mode |
Default Mode Three SOTDMA (FATDMA, RATDMA, SOTDMA adjustable) |
| Light Features |
Len material |
Acrylic |
| Base material |
ABS+PC |
| Light Colors |
Red/Green/Yellow/White/Blue |
| Light Intensity |
256 adjustable levels |
| Daylight Threshold |
Digital photosensitive, adjustable threshold |
| Beam Distance |
5-8nm |
| Emission Angle |
Buoy Light ≥8°, Fixed Light ≥2.5° |
| Battery Features |
Battery Type |
LiFePO4 Battery |
| Battery Capacity |
≥640Wh |
TWO MODELS
Drawings (mm)
FAQ
1. What international standards does DX-SC160 comply with?
The DX-SC160 is designed in accordance with IALA (International Association of Marine Aids to Navigation and Lighthouse Authorities) guidelines for AIS AtoN devices. It is also CE and ROHS certified, with complete electrical, photometric, waterproof, and environmental testing reports available upon request.
2. What is the warranty policy?
We provide a 3-year warranty. For all verified quality-related issues within this period, we offer a "Replace, not Repair" policy—especially for overseas customers, where returning products for repair is not practical. This policy reflects our confidence in the product’s reliability. Note: Human-caused damage is not covered.
3. Is this a genuine Dexonmarine product?
Yes. Please ensure you are purchasing authentic Dexonmarine products to receive full warranty support and quality assurance. Counterfeit or unauthorized copies are not covered under our service policy.
4. What power sources does the DX-SC160 use?
It is a self-contained solar-powered unit, integrating high-efficiency solar panels and a long-life internal battery—no external power source or cabling required.
5. What is the AIS capability of this unit?
DX-SC160 includes a built-in AIS transponder supporting AIS Messages 6, 8, 14, and 21, compatible with global AIS platforms and our own monitoring systems. It operates in SOTDMA mode for independent signal transmission and reception.
6. What is the effective range and light output?
AIS communication range: up to 20 nautical miles (depending on antenna position and environment)
LED visible light range: 5NM, available in IALA standard colors (Red, Green, Yellow, White)
7. What is the delivery time?
Standard orders (<100 units): 5–7 working days
Software customization: approx. 7 working days
Other customizations: approx. 2 weeks
Special projects: schedule confirmed upon request
8. How is the product packaged and shipped?
Packaging: One unit per export-grade carton
Transport:
Small quantities: via DHL door-to-door (preferred carrier)
Bulk orders: via sea freight, using plastic export pallets and certified for lithium battery shipment
