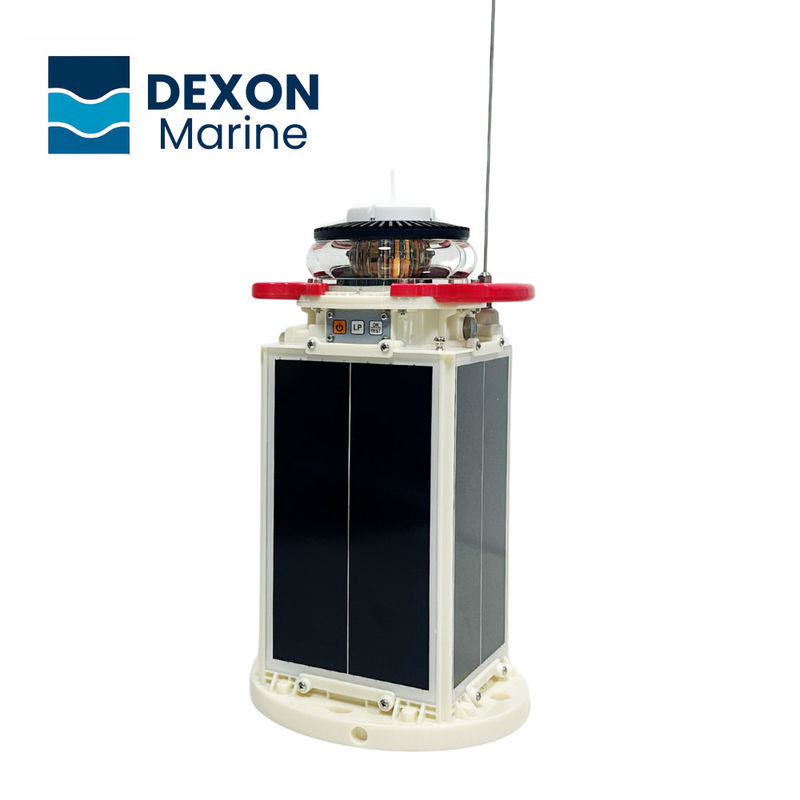

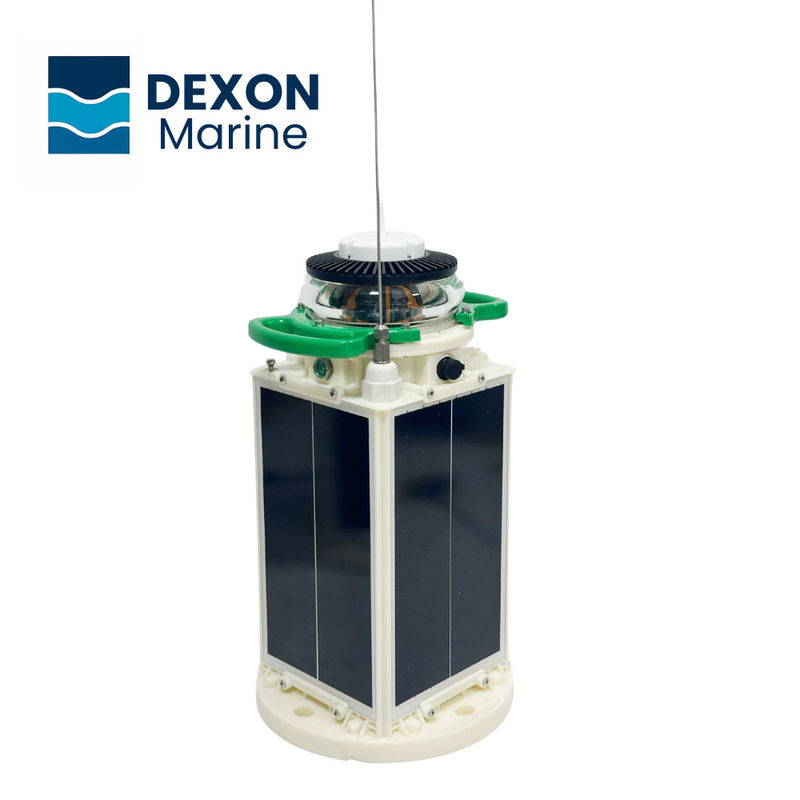

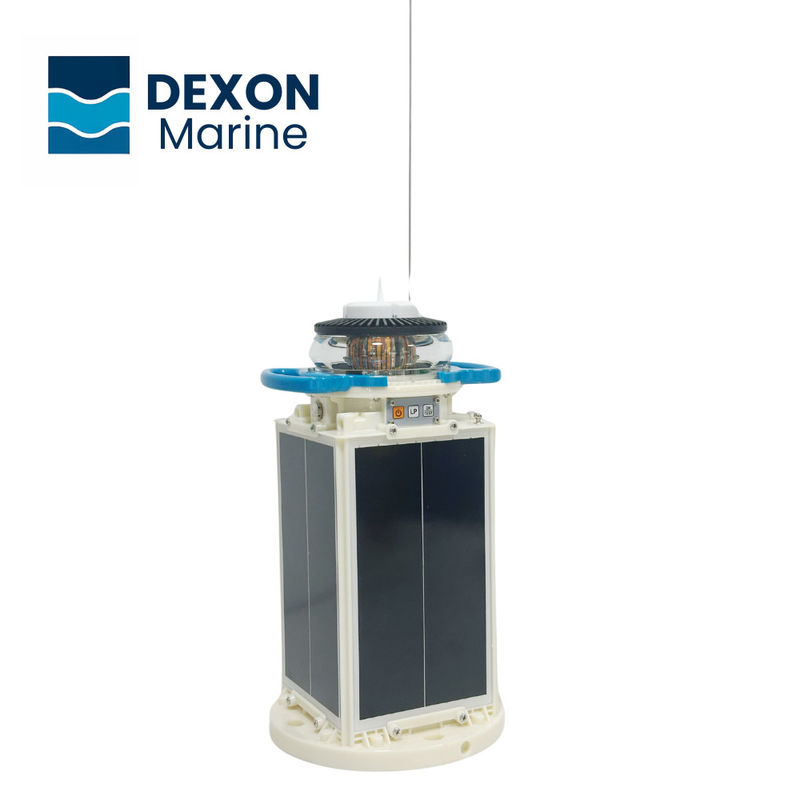

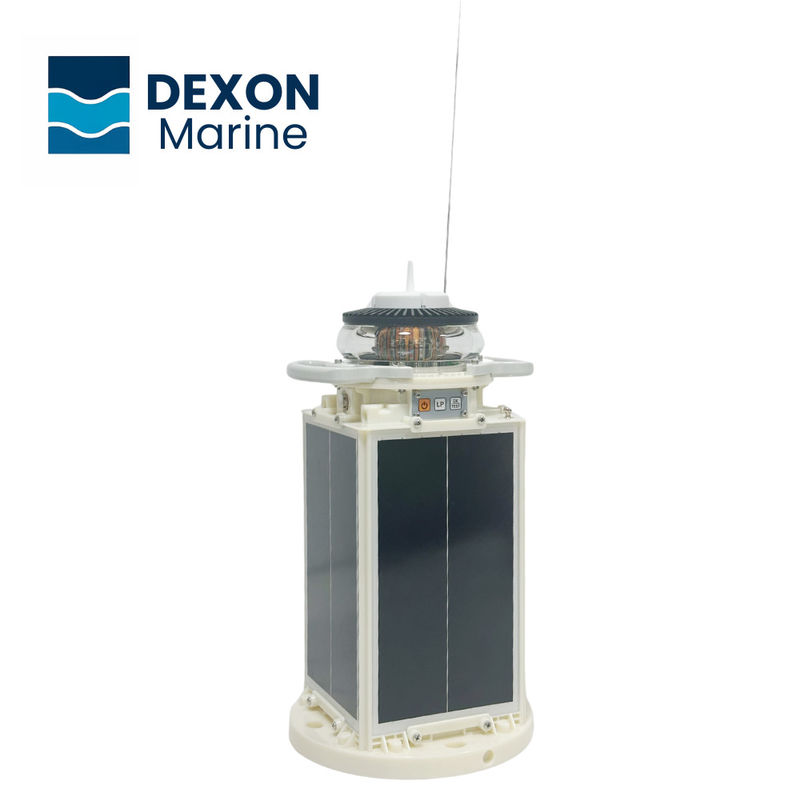

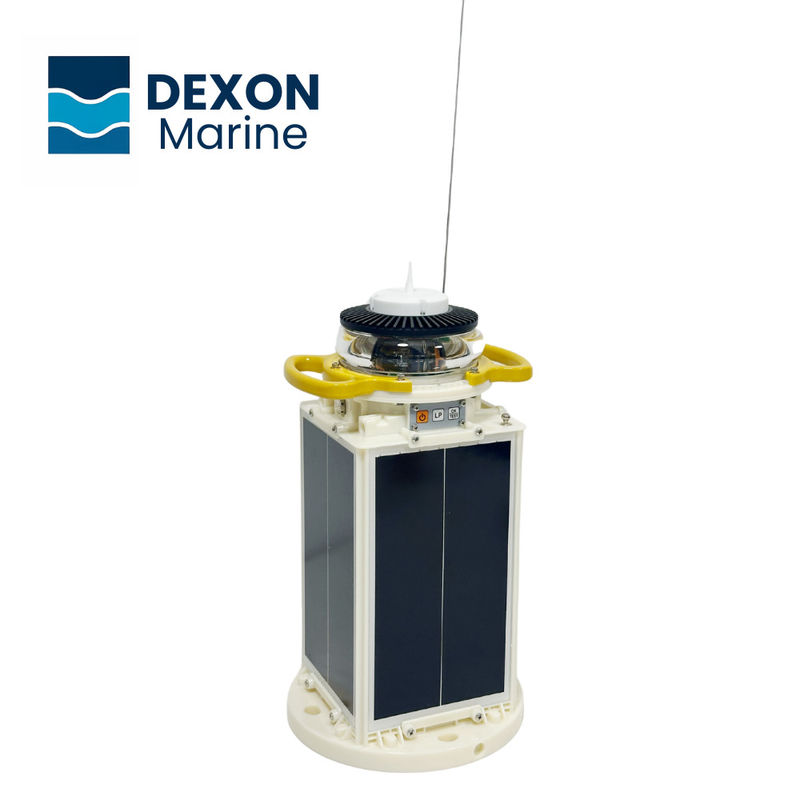

Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Product Summary
Engineered to withstand the most severe marine conditions, this AIS-enabled navigation light boasts IP68 professional waterproofing, and operates reliably in extreme temperatures ranging from -35°C to +60°C. With a built-in 316 stainless steel antenna, support for all AIS communication modes (SOTDMA...
Product Custom Attributes
Solar Powered LED Buoy Light
,LED Buoy Light IP68 Waterproof
Basic Properties
Trading Properties
Product Description
Engineered to withstand the most severe marine conditions, this AIS-enabled navigation light boasts IP68 professional waterproofing,
and operates reliably in extreme temperatures ranging from -35°C to +60°C.
With a built-in 316 stainless steel antenna, support for all AIS communication modes (SOTDMA, FATDMA, RATDMA),
and a 3-year free replacement warranty. It delivers dependable performance with ultra-low power consumption in any sea.
Core advantages:
- IP68 Waterproof, -35°C to +60°C Operation
- Designed to support all AIS modes, including SOTDMA, FATDMA and RATDMA.
- Equipped with a built-in 316 stainless steel antenna.
- Offer a 3-Year Free Replacement Guarantee
- Available in five colours: red, green, white, yellow and blue for any navigational marking.
Product structure
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Material
|
Acrylic lens,ABS+PC base
|
|
Flash Mode
|
256 types(adjustible)
|
|
|
Light Colore
|
White/Yellow/Red/Green/Blue
|
|
|
Visible Range
|
5–8 nautical miles
|
|
|
Daylight Threshold
|
Digital photosensitive, adjustable threshold
|
|
|
Waterprof
|
IP68
|
|
|
Operating Temperature
|
-35°C to +60°C
|
|
|
Emission Angle
|
Fixed Light ≥2.5°, Floating Light ≥8°
|
|
|
Working Voltage
|
DC 10.5V – 14.4V
|
|
|
Parameter Loading
|
RS232 and onboard button
|
|
|
Solar Panel & Battery
|
Solar Panel
|
4*7W each side, mono-solar panel
|
|
Charging Current
|
Typical 400mA
|
|
|
Battery
|
LiFePO4 battery, capacity 640Wh
|
|
|
Continuous Operation
|
≥25 days (without sun)
|
|
|
AIS AtoN
|
Communication
|
Preset AIS Mode3-SOTDMA ,
(FATDMA / RATDMA / SOTDMA, adjustable) |
|
Operating Frequency
|
161.975MHz,162.025MHz (±0.5kHz)
|
|
|
Modulation Mode
|
GMSK / FSK
|
|
|
Transmission Power
|
1W / 2W / 5W / 6W / 12.5W (configurable)
|
|
|
Average Power Consumption
|
≤ 1W (continuous working mode),Low power mode ≤0.7W
|
|
|
Message Format
|
Supports standard AIS Message 21, 6; multiple formats selectable
|
|
|
W/D/K
|
Net Weight
|
9.3 kg
|
|
Dimensions
|
Fixed Light: 240mm × 240mm × 455mm
|
|
|
Packaging Dimensions
|
277mm × 281mm × 537mm
|
|
|
Installation
|
Support domestic and international installation standards
|
Drawings
Application
- Marine aids to navigation marking
- Beacons & Marinas Lighting
- Docks & Harbor Lighting
- Offshore Platforms
- Piers & Port Lighting
- Mooring Points
- Navigation Aids & Terminal Lighting
FAQ
1, Is the lantern waterproof and weather-resistant?
Yes. It is rated IP68 and operates in temperatures ranging from -35°C to +60°C.
2, Which AIS modes are supported?
Fully compatible with SOTDMA, FATDMA and RATDMA.
3, What are the size and delivery details?
Weighs 9.3 kg, 277 x 281 x 537mm, Shipped within 3–10 days.
4, Are there color options for different markings?
Colours available include red, green, white, yellow or blue.
