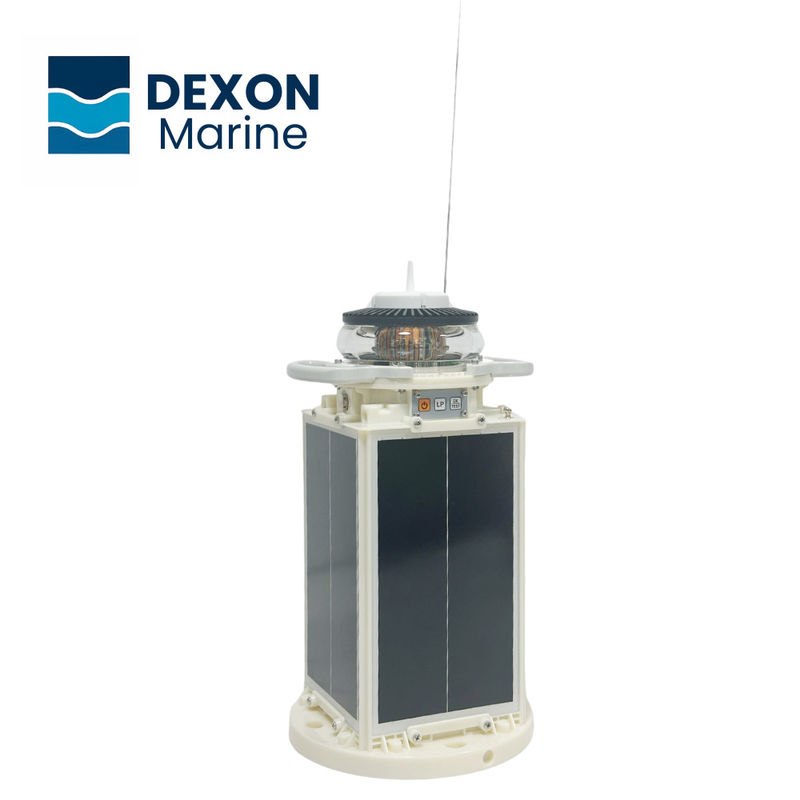

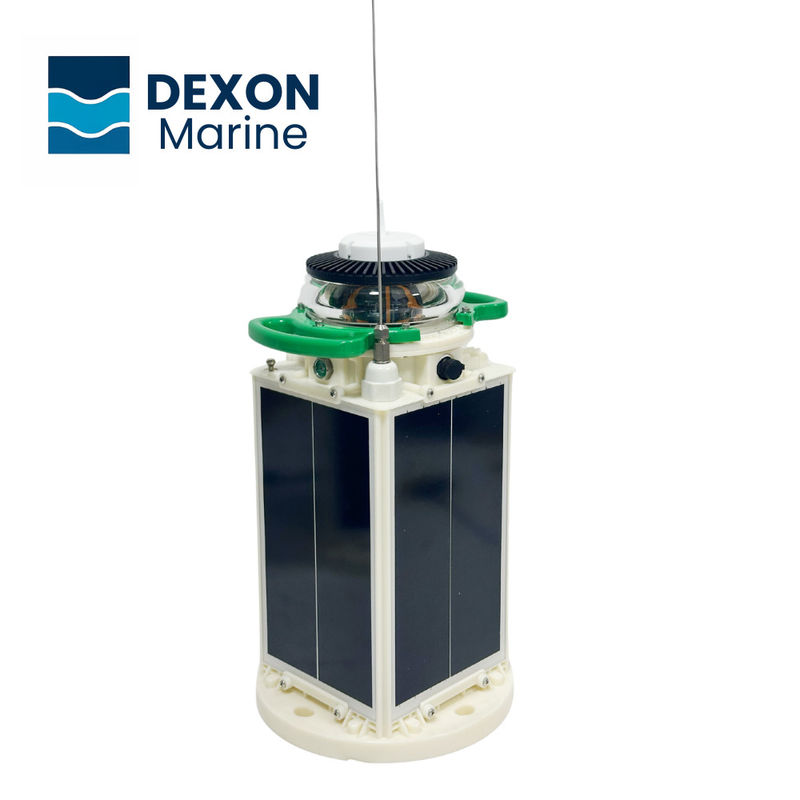

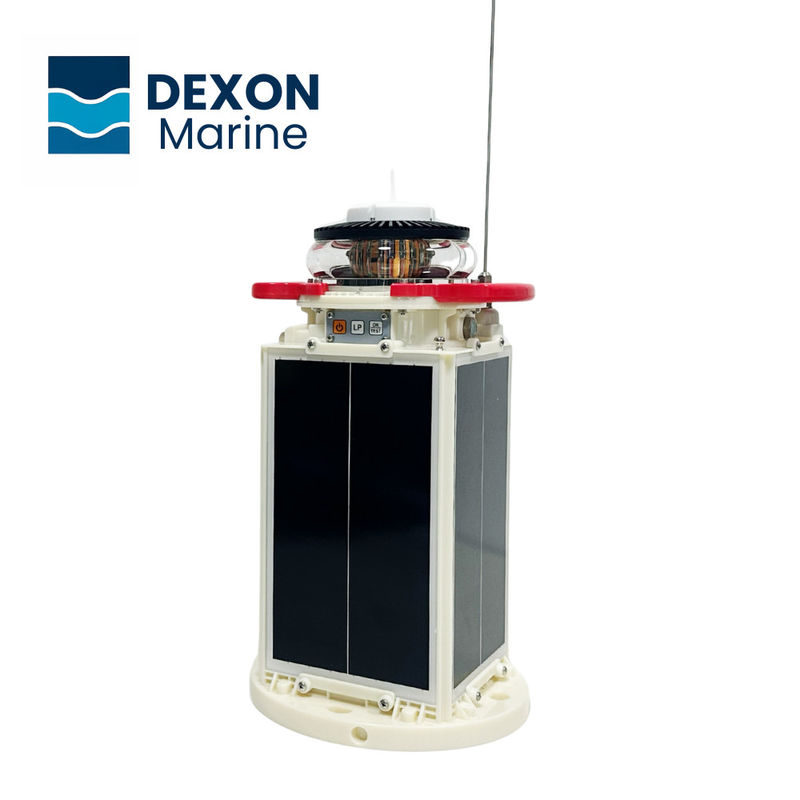

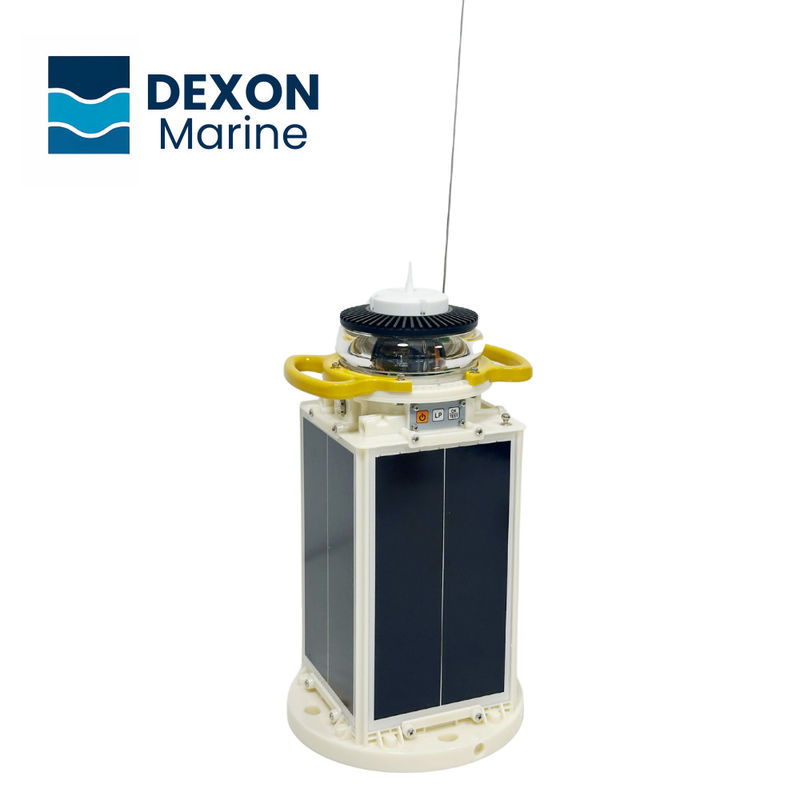

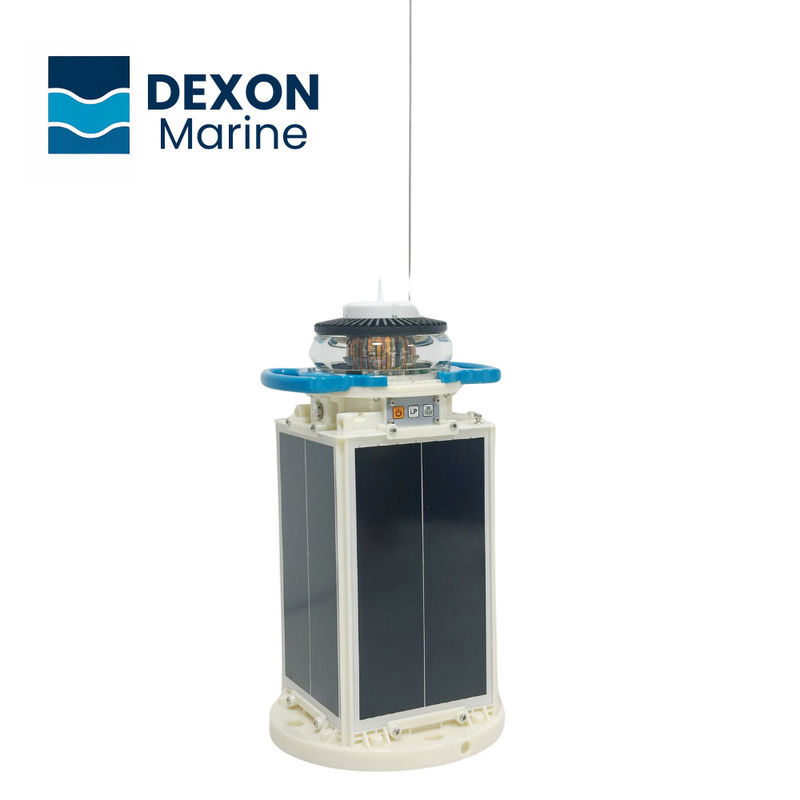

AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
Product Summary
This high-efficiency marine navigation light has been engineered for ultra-low power consumption, making it ideal for long-term use. Featuring AIS AtoN functionality and a built-in high-gain stainless steel antenna, enables communication over a distance of 20+ nautical miles. Supporting SOTDMA, ...
Product Custom Attributes
AIS AtoN LED Marine Light
,Long Range Visibility Boat Navigation Lights
Basic Properties
Trading Properties
Product Description
This high-efficiency marine navigation light has been engineered for ultra-low power consumption, making it ideal for long-term use.
Featuring AIS AtoN functionality and a built-in high-gain stainless steel antenna, enables communication over a distance of 20+ nautical miles.
Supporting SOTDMA, FATDMA and RATDMA modes for flexible AIS integration. The light with 256 flashing patterns and 5 colours for option,
it can be adapted to suit various marine environments. Backed by a free replacement guarantee for 3 years.
Core advantages:
- Triple AIS modes and smarter signal control,supports SOTDMA, FATDMA and RATDMA
- The 316 stainless steel antenna provides superior signal strength over long distances and is VHF-optimised.
- Acrylic lens and ABS+PC base, built to endure
- Five colours available (red/green/white/yellow/blue) adapt to any marking.
- 3-Year Free Replacement
Product details
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Material
|
Acrylic lens,ABS+PC base
|
|
Flash Mode
|
256 types(adjustible)
|
|
|
Light Colore
|
White/Yellow/Red/Green/Blue
|
|
|
Visible Range
|
5–8 nautical miles
|
|
|
Daylight Threshold
|
Digital photosensitive, adjustable threshold
|
|
|
Waterprof
|
IP68
|
|
|
Operating Temperature
|
-35°C to +60°C
|
|
|
Emission Angle
|
Fixed Light ≥2.5°, Floating Light ≥8°
|
|
|
Working Voltage
|
DC 10.5V – 14.4V
|
|
|
Parameter Loading
|
RS232 and onboard button
|
|
|
Solar Panel & Battery
|
Solar Panel
|
4*7W each side, mono-solar panel
|
|
Charging Current
|
Typical 400mA
|
|
|
Battery
|
LiFePO4 battery, capacity 640Wh
|
|
|
Continuous Operation
|
≥25 days (without sun)
|
|
|
AIS AtoN
|
Communication
|
Preset AIS Mode3-SOTDMA ,
(FATDMA / RATDMA / SOTDMA, adjustable) |
|
Operating Frequency
|
161.975MHz,162.025MHz (±0.5kHz)
|
|
|
Modulation Mode
|
GMSK / FSK
|
|
|
Transmission Power
|
1W / 2W / 5W / 6W / 12.5W (configurable)
|
|
|
Average Power Consumption
|
≤ 1W (continuous working mode),Low power mode ≤0.7W
|
|
|
Message Format
|
Supports standard AIS Message 21, 6; multiple formats selectable
|
|
|
W/D/K
|
Net Weight
|
9.3 kg
|
|
Dimensions
|
Fixed Light: 240mm × 240mm × 455mm
|
|
|
Packaging Dimensions
|
277mm × 281mm × 537mm
|
|
|
Installation
|
Suit both domestic and international installation standards
|
Drawings
Application
- Marine aids to navigation marking
- Beacons & Marinas Lighting
- Docks & Harbor Lighting
- Offshore Platforms
- Piers & Port Lighting
- Mooring Points
- Navigation Aids & Terminal Lighting
FAQ
1, Which AIS modes are supported?
SOTDMA, FATDMA and RATDMA represent triple mode for full compatibility.
2, Is this model built to withstand harsh marine conditions?
Yes. 316 SS antenna + acrylic lens + ABS+PC base — tough and weatherproof.
3, What’s the size and shipping time?
A3: 9.3 kg, 277×281×537 mm(package). Ships in 3–10 days.
4, Are colour options available?
Yes. white, red, green, yellow and blue comply with the IALA colour code.
