Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Product Summary

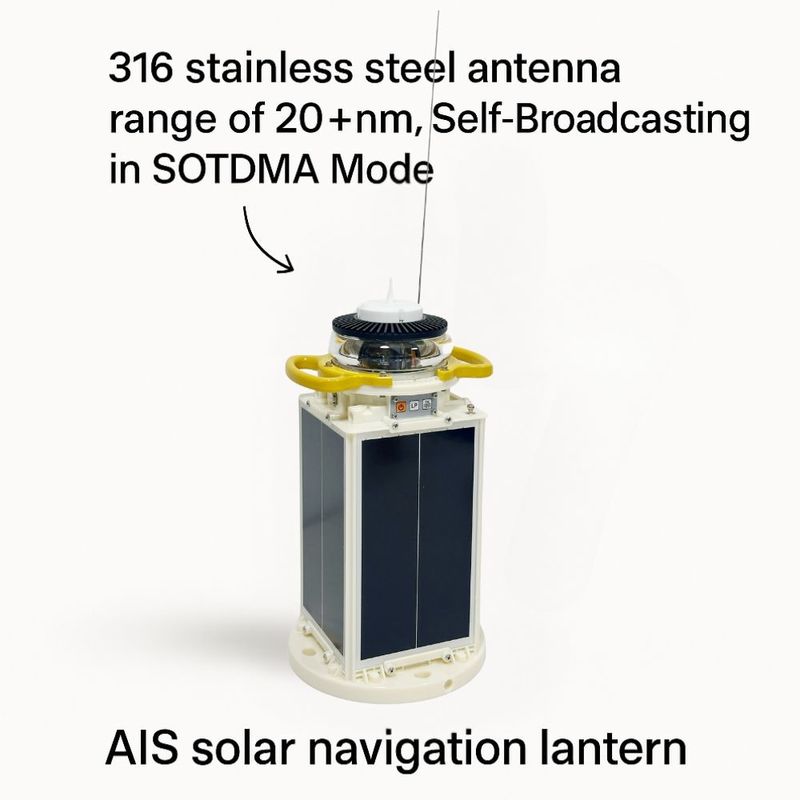

This marine navigation light features a 3-metre, high-gain, 316 stainless steel antenna that enables communication over a distance of 20 nautical miles. It supports the default SOTDMA and optional FATDMA/RATDMA AIS communication modes, ensuring reliable and intelligent signalling. Backed by a free ...
Product Custom Attributes
Solar Marine Lantern With AIS AtoN
,Uv Proof Solar Powered Nav Lights
Basic Properties
Trading Properties
Product Description
This marine navigation light features a 3-metre, high-gain, 316 stainless steel antenna that enables communication over a distance of 20 nautical miles. It supports the default SOTDMA and optional FATDMA/RATDMA AIS communication modes, ensuring reliable and intelligent signalling. Backed by a free replacement guarantee for three years, it is built for diverse maritime scenarios, ensuring safe and efficient navigation.
Core advantages:
- 3m High-Gain Antenna, 20+ NM Range
- Triple AIS Mode Compatibility-FATDMA, RATDMA and SOTDMA,adjustible
- 3-Year Free Replacement
- Strong, UV-proof Acrylic lens
- Optional functions:Satellite Communication,329 IALA,GPS Sync,Bluetooth
Product details
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Material
|
Acrylic lens,ABS+PC base
|
|
Flash Mode
|
256 types(adjustible)
|
|
|
Light Colore
|
Yellow/Red/Green/White/Blue
|
|
|
Visible Range
|
5–8 nautical miles
|
|
|
Daylight Threshold
|
Digital photosensitive, adjustable threshold
|
|
|
Waterprof
|
IP68
|
|
|
Operating Temperature
|
-35°C to +60°C
|
|
|
Emission Angle
|
Floating Light ≥8°, Fixed Light ≥2.5°
|
|
|
Working Voltage
|
DC 10.5V – 14.4V
|
|
|
Parameter Loading
|
RS232 and onboard button
|
|
|
Solar Panel & Battery
|
Solar Panel
|
7W each side, high-efficiency mono-solar panel
|
|
Charging Current
|
Typical 400mA
|
|
|
Battery
|
LiFePO4 battery, capacity 640Wh
|
|
|
Continuous Operation
|
≥25 days (no sun)
|
|
|
AIS AtoN
|
Communication
|
Preset AIS Mode3-SOTDMA ,
(FATDMA / RATDMA / SOTDMA, adjustable) |
|
Operating Frequency
|
161.975MHz,162.025MHz (±0.5kHz)
|
|
|
Modulation Mode
|
GMSK / FSK
|
|
|
Transmission Power
|
1W / 2W / 5W / 6W / 12.5W (configurable)
|
|
|
Average Power Consumption
|
≤ 1W (continuous working mode),Low power mode ≤0.7W
|
|
|
Message Format
|
Supports standard AIS Message 21, 6; multiple formats selectable
|
|
|
W/D/K
|
Net Weight
|
9.3 kg
|
|
Dimensions
|
Fixed Light: 240mm × 240mm × 455mm
|
|
|
Packaging Dimensions
|
277mm × 281mm × 537mm
|
|
|
Installation
|
Meets domestic and international installation standards
|
Drawings
Application
- Marine aids to navigation marking
- Beacons & Marinas Lighting
- Docks & Harbor Lighting
- Offshore Platforms
- Piers & Port Lighting
- Mooring Points
- Navigation Aids & Terminal Lighting
FAQ
1, What is the maximum VHF transmission range of this lantern?
With its 3-metre high-gain antenna, it can reliably transmit AIS signals over 20+NM in open sea conditions
2, Does this product support multiple AIS communication modes?
Yes, it preset SOTDMA mode, also supports FATDMA, RATDMA The mode can be adjusted to ensure compatibility with different AIS infrastructure setups
3, How soon can the product be delivered?
The standard delivery time is between 3~10 days, depending on the volume of your order and its destination.
4, What are the size and weight of the shipping package?
Each unit comes in a box measuring 277 mm × 281 mm × 537 mm, with a total weight of around 9.3 kg
