IP68 DC Powered LED Navigation Lantern AIS AtoN Light For Fixed Beacons
Product Summary
AIS700DC-FB – AIS Navigation Light for Fixed Beacons with Precision Narrow Beam Output The AIS700DC-FB is a DC-powered AIS AtoN light specifically designed for fixed beacons, such as daymarks, shore structures, and piers. Optimized with a narrow vertical emission angle (≥2.5°), it ensures focused ...
Product Custom Attributes
DC Powered LED Navigation Lantern
,IP68 AIS AtoN Light
Basic Properties
Trading Properties
Product Description

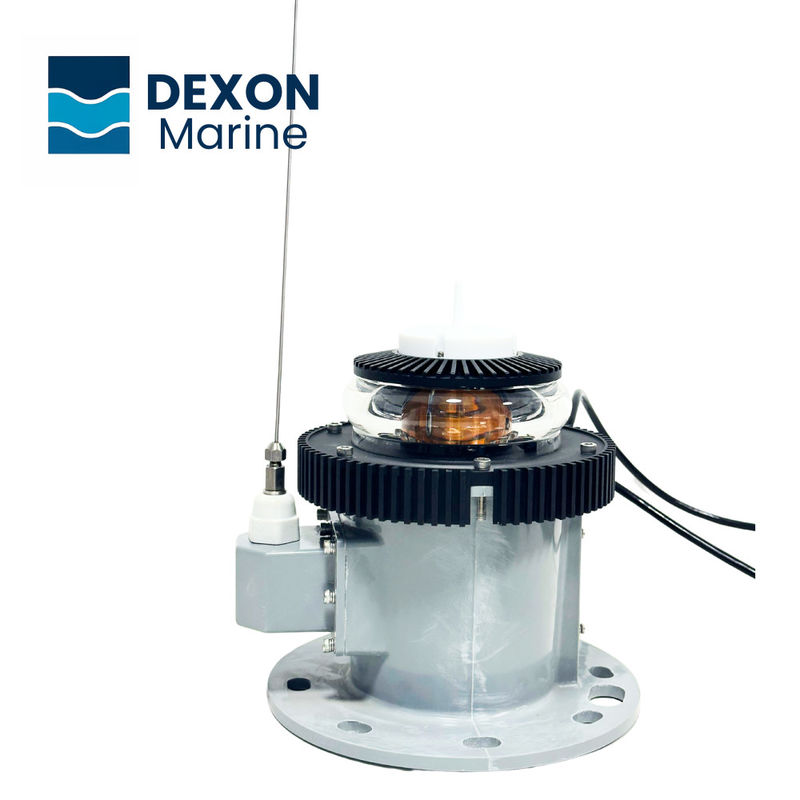

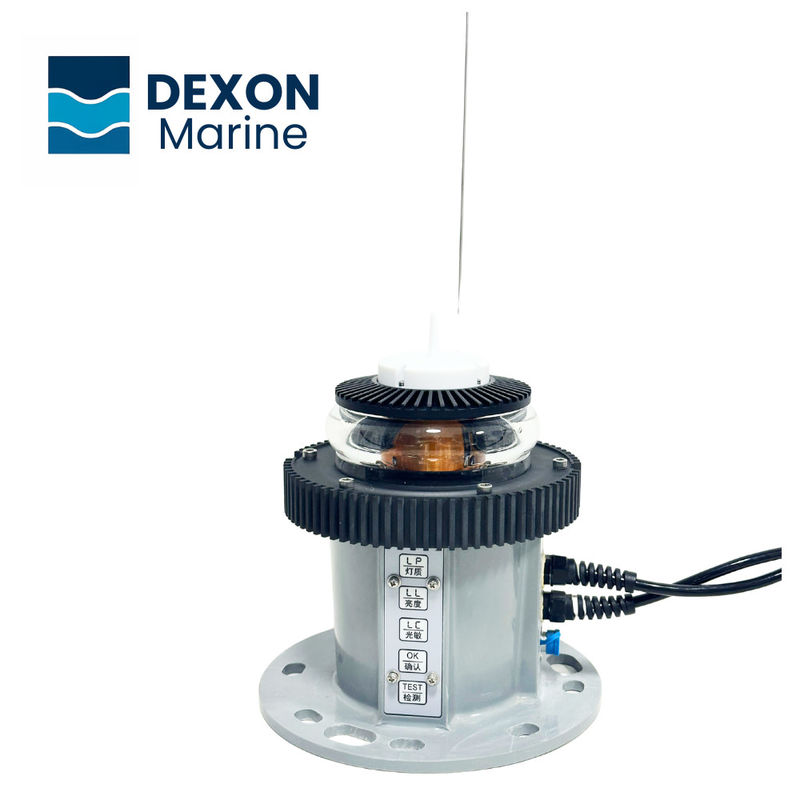

AIS700DC-FB – AIS Navigation Light for Fixed Beacons with Precision Narrow Beam Output
The AIS700DC-FB is a DC-powered AIS AtoN light specifically designed for fixed beacons, such as daymarks, shore structures, and piers. Optimized with a narrow vertical emission angle (≥2.5°), it ensures focused light distribution tailored for stationary applications where minimal light scattering is essential for visibility and energy efficiency.
Like the floating version (AIS700DC-FL), the FB model offers over 20NM AIS communication, low power consumption, and autonomous AIS signal transmission without base station dependency. It also includes a built-in intelligent battery management system, which safeguards and extends the life of external battery packs.
KEY ADVANTAGES
- Intelligent Power Management
Built-in system to manage the charging and discharging of external batteries, preventing overcharging, deep discharge, and extending battery lifespan. - Long-Distance AIS Transmission
Supports AIS Message 21, 6, 8, and 14, with an effective communication range of over 20 nautical miles, even in low-power mode. - Low Power Consumption
Optimized for energy efficiency, supporting autonomous long-term operation in remote areas without dependence on shore-based base stations. - Fully Compliant AIS AtoN
Compatible with international standards, supporting dual-mode positioning (GPS + Beidou is required), and real-time monitoring of beacon status including voltage, light output, and solar charging conditions. - Flexible Deployment
Ideal for customers who supply their own solar panels and batteries, such as large-scale navigation projects, retrofits, and offshore platforms.
TECHNICAL DATA
| Category | Item | Parameter |
| Device Features | Operating Voltage | DC 8V—32V, intelligent compatibility with DC 12V and 24V |
| Charging Current | ≤10A | |
| Parameter Setting | RS232, Button | |
| Installation Size | Conforms to domestic and international standards | |
| Shell Material | Composite SMC (Fiberglass) | |
| Waterproof Rating | IP68 | |
| Operating Temperature | -35°C - 65°C | |
| Weight | ≤2.6KG | |
| Light Features | Light Color | Red/Green/Yellow/White/Blue/Yellow-Blue |
| LED Lifespan | >100,000 hours | |
| Synchronous Flash | Synchronous flashing function | |
| Number of Layers | One or two layers controllable | |
| Light Quality | 256 adjustable options | |
| Brightness | Adjustable by percentage | |
| Sunlight Threshold | Digital light sensor, adjustable threshold | |
| Illumination Distance | 5—11nm @ 0.74T | |
| Emission Angle |
Floating marker light ≥8° Fixed marker light ≥2.5° |
|
| Lens Size | 155mm | |
| Lens Material | Optical Acrylic | |
| Horizontal Max Luminous Intensity (Red) | 1955.9cd/19.8W | |
| Horizontal Max Luminous Intensity (Yellow) | 1186cd/22.9W | |
| Horizontal Max Luminous Intensity (White) | 2800cd/33.6W | |
| Horizontal Max Luminous Intensity (Green) | 1587cd/33.9W | |
| Horizontal Max Luminous Intensity (Blue) | 663cd/33.6W |
TWO MODELS
| Feature | AIS700DC-FB (Fixed Beacon) | AIS700DC-FL (Floating Lantern) |
| Emission Angle | ≥2.5° – optimized for fixed light patterns | ≥8° – designed for buoy movement coverage |
| Application | Shore-based / fixed structures | Floating buoys / marine markers |
| Mounting Stability | Rigid, stable base support | Adapts to motion and sway |
| Light Control Precision | More focused beam for short-range clarity | Broader beam to maintain coverage amid movement |
Drawings (mm)
Floating Marker Light
Fixed Marker Light
Why Choose AIS700DC AIS AtoN Navigation Lantern?
- Most third-party AIS AtoNs require external power but lack battery management, leading to reduced battery lifespan and maintenance issues.
- AIS700DC not only solves this but also delivers high-efficiency AIS performance, over 20NM range, and true autonomous signal transmission without relying on a land-based base station.
