Name: Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated
Brand: Chengdu Dixin Technology Co., Ltd.
SKU: DX091
Price: 2,500.00 USD
Availability: InStock

Home > products > AIS ATON >

Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated

IP68 Rated AIS ATON System

Modular AIS ATON System

IP68 Rated AIS Aids To Navigation

Place of Origin:

Chengdu

Brand Name:

Dexonmarine

Certification:

ISO9001,IEC, IALA

Model Number:

DX091

Request A Quote

Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated

Product Details

Average Operating Current:

< 6mA

Static Power Consumption:

< 2mA

Waterproof:

IP68

AIS Transmission Distance:

20-25nm

Function:

Can Be Installed Together With The Lantern Or Added Later As Needed. Provides AIS Signal Transmission And Supports Integration With Remote Monitoring Platforms.

Message:

Message 21, 6, 8, 14; Supports Multiple Formats

Voltage:

DC 8V–32V, Intelligently Compatible With DC 12V And 24V

Materia:

FRP (Fiberglass Reinforced Plastic)

Lifespan:

15 Years

Installation Method:

Screw Mounting

Certifications:

CE, RoHS, ISO,IEC, IALA

Applications:

Port And Harbor Navigation, Offshore Platforms, Buoy Marker Systems, Environmental Monitoring, Wind Turbines, Marine Construction, And Safety Markers For Water And Marine Areas.

Service:

Logo OEM , Customized Detailed Requiements

Highlight:

IP68 Rated AIS ATON System

Modular AIS ATON System

IP68 Rated AIS Aids To Navigation

Payment & Shipping Terms

Minimum Order Quantity

Price

usd$2000-3000

Packaging Details

cartons/pallets

Delivery Time

3-10days

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

10000pcs/month

Solar IP68 Level AIS AtoN Inspection Device Real Time Position & System Health Updates

Get Best Price

Modular AIS AtoN Device Real Time Marine Monitoring IMO IEC Compliant

Get Best Price

Compact AIS Navigation Unit Solar Ready With 100Wh Lithium Battery Smart BMS

Get Best Price

AIS Solar Navigation Device IP68 Waterproof 100Wh Battery Low Power System

Get Best Price

Contact Now

Product Description

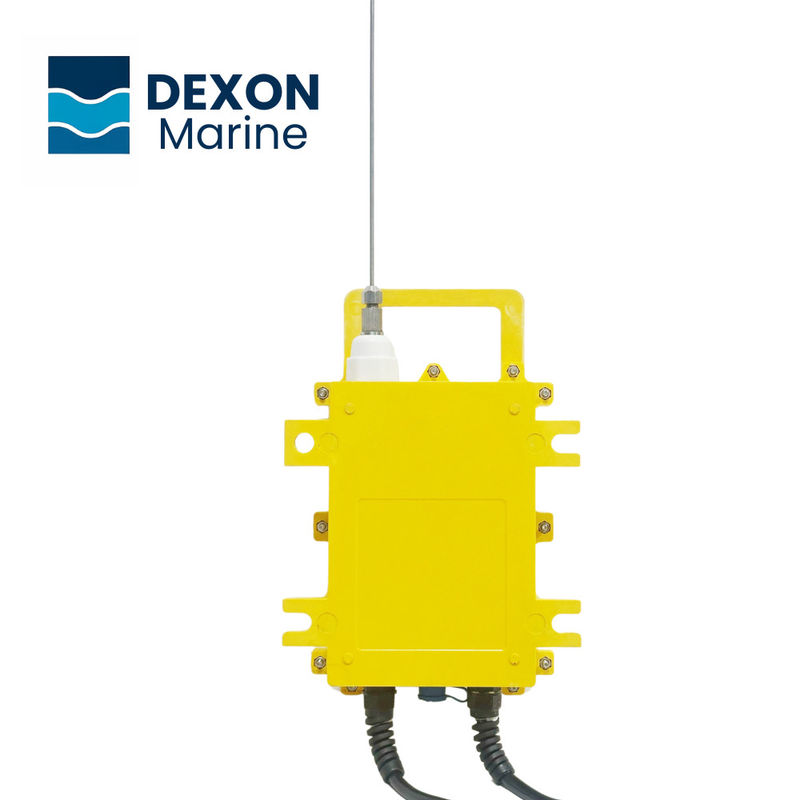

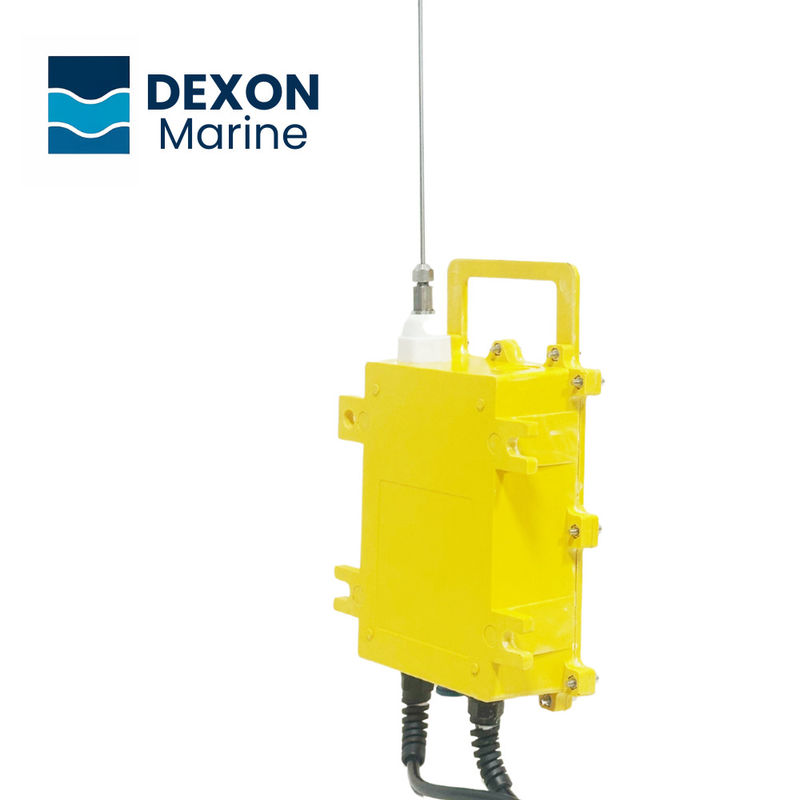

DX901 AIS AtoN System-Ultra-Low Power. 20NM AIS Reach. Independent Operation. IP68 Rated.

The DX901 is a modular AIS AtoN system that transmits and receives navigation and equipment status signals via AIS protocol, making it a perfect fit for global AIS-based monitoring networks. Engineered for ultra-low static power (<2mA) and transmission power under 6W, it achieves 20+ nautical miles of AIS communication without requiring shore-based infrastructure.

Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated 0

KEY ADVANTAGES

AIS-based monitoring and remote diagnostics
Low power usage with long-distance signal reach
Fully autonomous operation of buoys and lights
Compatible with global AIS systems (IMO/IEC standard)
Flexible modular design for integration with existing marine infrastructure

Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated 1

TECHNICAL DATA

Parameter	Specification
Frequency Range	156.025MHz – 162.025MHz
Operating Frequency	161.975MHz, 162.025MHz
Modulation	GMSK / FSK
Frequency Error	±0.5kHz
Transmission Power	≤12.5W (Selectable: 6W or 12.5W)
Receiver Sensitivity	≤−110dBm
Occupied Bandwidth	25kHz
Harmonic/Spurious Suppression	≤−70dBc
Power Supply Range	DC 8V–32V, intelligently compatible with DC 12V and 24V
Average Power Consumption	Continuous mode: ≤1W / Low-power mode: ≤0.7W
Message Format	Adjustable: Message 21, 6, 8, 14; supports multiple formats
Operating Temperature	−35°C to +60°C
Storage Temperature	−40°C to +70°C
Environmental Humidity	≤99%
Waterproof Rating	IP68
Charging Current	≤10A
Load Current	≤10A
Dimensions	Height: 281mm × Width: 180mm × Thickness: 69mm
Packaging Dimensions	Height: 500mm × Width: 224mm × Thickness: 132mm
Weight	≤2kg
Operating Modes	Default: Mode 3 SOTDMA (Adjustable to FATDMA, RATDMA, SOTDMA)
Interface	RS-232
Virtual AtoN	Supported

Drawings (mm)

Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated 2
