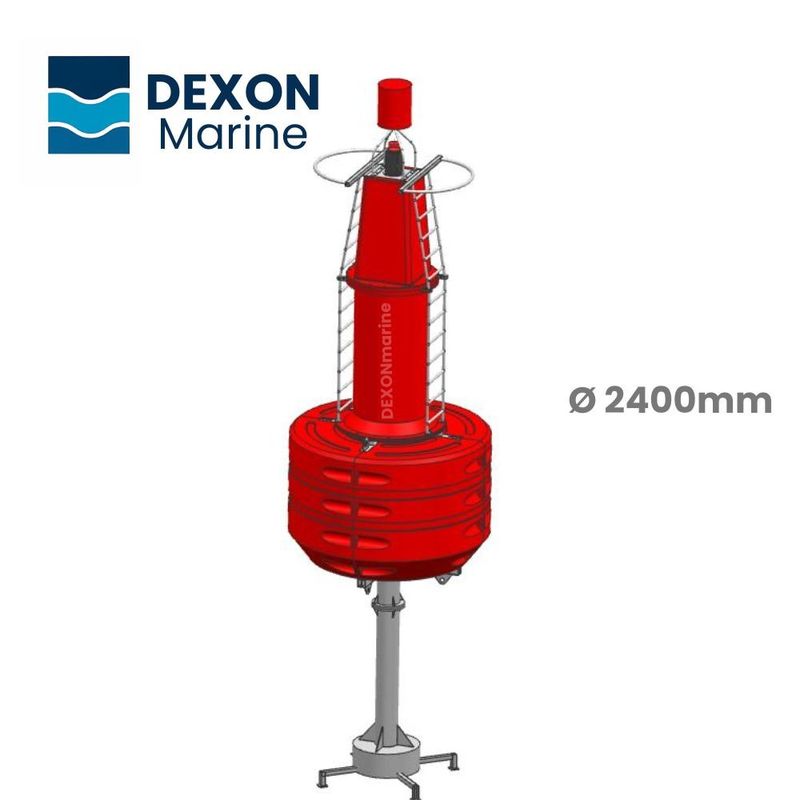

The Dexonmarine DMF2400 Navigation Buoy and Markers, with 3600kg of buoyancy, is engineered for offshore channel marking, deep-sea fairways, and strong-current areas that demand high stability and long-term deployment.
Diameter: ∅2400mm
Application: Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.
The Dexonmarine DMF2400 Navigation Buoy is engineered for use in exposed offshore conditions and long-range marine marking. Its modular float system and aluminum mast support solar panels, 10NM+ lanterns, and AIS integration, making it a reliable choice for coastal and deep-water navigation projects.
Optional Equipment: Marine lanterns
TECHNICAL DATA
| General Characteristics |
| Color |
Red, Green, White, Yellow as per IALA Recommendations |
| Diameter |
2400mm |
| Height (with topmark) |
7860mm |
| Material |
Polyethylene |
| Filling |
EPS Foam |
| Structure, Lifting & Mooring Points |
S235 galvanized steel (SS316 option available) |
| Float and Mast |
UV-stabilized grade 16 Polyethylene high density. Rotational moulding |
| Ballasts |
Cast Iron. Removable |
| Topmark |
Rotomolded Polyethylene, PVC, and Nylon, Aluminum * |
| Eco-Friendly |
Recyclable polyethylene. Heavy metal-free. No ecological damages |
| Certifications |
| IALA |
Compliant to IALA E-108 |
| Quality Assurance |
ISO9001:2015 |
MORE INFORMATION
MARINE-GRADE MATERIALS BUILT FOR EXTREME CONDITIONS
Shell Construction: The oversized 2400mm LLDPE shell is built for high durability, offering excellent resistance to UV exposure, heavy impacts, and offshore saltwater corrosion.
Core: Filled with EPS foam, the buoy delivers stable buoyancy and internal support, with a flotation capacity of up to 3600kg.
Mooring: Equipped with heavy-duty hot-dip galvanized steel lifting and mooring points for secure anchoring in high-current, offshore waters.
Topmark: Made from reinforced PVC and nylon, the topmark meets IALA lateral or cardinal marking standards, providing long-range visibility.
Eco-Safe: Manufactured from fully recyclable, toxin-free polyethylene suitable for marine environments.
STABLE PERFORMANCE FOR DEEP-WATER DEPLOYMENTS
Floatation: Optimized for deep-sea and strong-current zones, maintaining vertical orientation across changing salinity and wave patterns.
Stability: Accepts configurable ballast options to improve balance under harsh environmental loads.
Anchoring: Designed for compatibility with modular mooring systems and various seabed conditions.
INTEGRATED HIGH-RANGE MARINE LIGHTING
The DMF2400 Navigation Buoys and Markers can be equipped with 10NM LED lanterns or AIS-enabled lights, offering clear visibility in all weather conditions.
Available in IALA-standard colors—Red, Green, White, and Yellow—for reliable offshore channel guidance and regulatory compliance.
DRAWING(mm)
