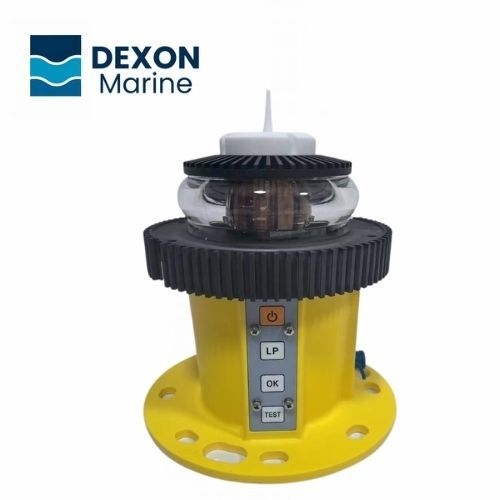

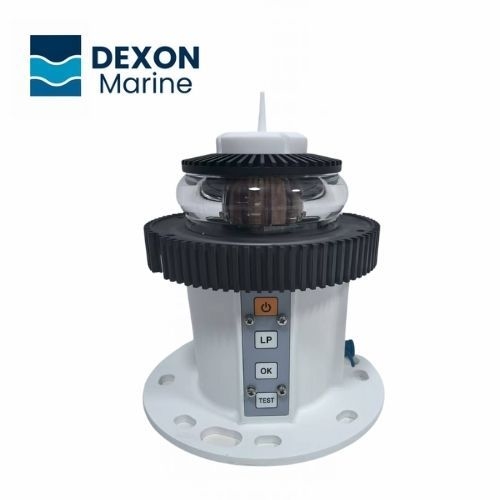

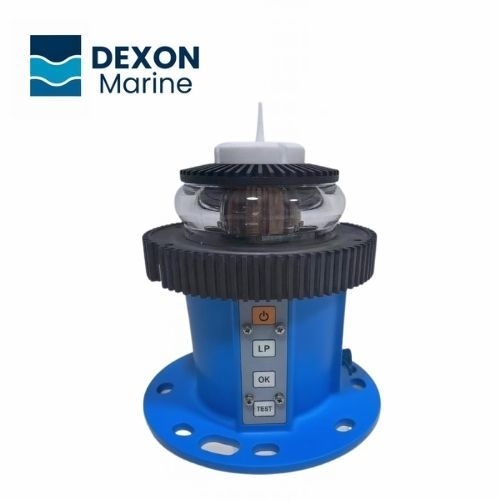

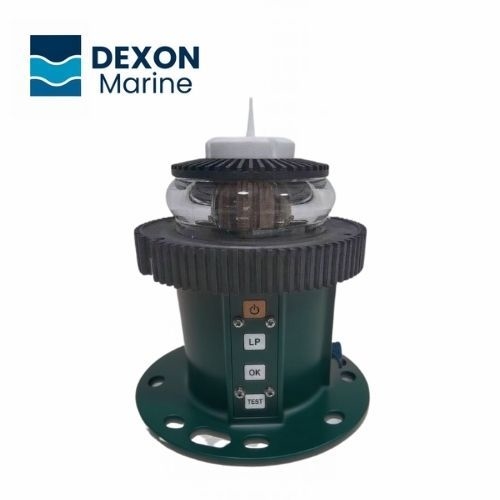

Up to 11NM visibility, 5 color options, 256 flash patterns LED marine light. Built with high-strength composite housing.
Product Summary
This upgraded LED marine lantern features a high-strength composite housing used in high-speed rail systems, offering superior durability in harsh marine environments. With a visible range of over 11 nautical miles and five selectable light colors, it ensures reliable navigation marking across ...
Product Custom Attributes
11NM visibility LED marine light
,5 color options marine lantern
,high-strength composite LED marine light
Basic Properties
Trading Properties
Product Description
Core advantages
- With long distance 11NM+ visible range
- SOTDMA default AIS communication, FATDMA and RATDMA adjustible.
- Five light colors and 256 IALA standard flashing pattern selectable
- High-strength composite body (same grade as bullet train casings)
- IP68-rated, long-term field durability
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Operating Voltage | DC 8V—32V, intelligent compatibility with DC 12V and 24V |
|
Flash Mode
|
256 adjustable options Brightness: Adjustable by percentage |
|
|
Light Color
|
Red/Green/Yellow/White/Blue/Yellow-Blue | |
|
Illumination Distance
|
5—11nm @ 0.74T | |
|
Daylight Threshold
|
Digital light sensor, adjustable threshold | |
|
Waterproof Rating
|
IP68
|
|
|
Operating Temperature
|
-35°C to +65°C
|
|
|
Emission Angle
|
Fixed Light ≥2.5°
|
|
| Horizontal Max Luminous Intensity |
White: 2800cd/33.6W ｜ Red: 1955.9cd/19.8W Yellow: 1186cd/22.9W ｜ Blue: 663cd/33.6W Green: 1587cd/33.9W |
|
| LED Lifespan | >100,000 hours | |
|
Light features
|
Lens Material
|
Optical Acrylic |
| Lens Size | 155mm | |
| Shell Material | Composite SMC (Fiberglass) | |
| Charging Current | ≤10A | |
| Synchronous Flash | Synchronous flashing function | |
| Number of Layers | One or two layers controllable | |
|
Parameter Setting
|
RS232, Button
|
|
|
Installation Size
|
Conforms to domestic and international standards
|
|
| Weight | ≤2.6KG | |
| Product Size | 240*240*267mm | |
|
Certifications
|
IALA Certified, IP68 Waterproof Rating, IEC-compliant | |
Drawings
Application
- Buoys
- Beacons
- Harbor Entrances
- Offshore Platforms
- Marinas
- Docks & Piers
- Channel Markers
FAQ
1, How far is the visible range?
Over 11 nautical miles — ideal for offshore and coastal navigation.
2, What is the housing material?
High-strength composite used in high-speed rail — corrosion- and impact-resistant.
3, Which AIS modes are supported?
Default SOTDMA with FATDMA/RATDMA support — fully IALA-compliant.
4, What certifications does the product meet?
Complies with IALA and IEC standards, with IP68 waterproof rating and CE marking
