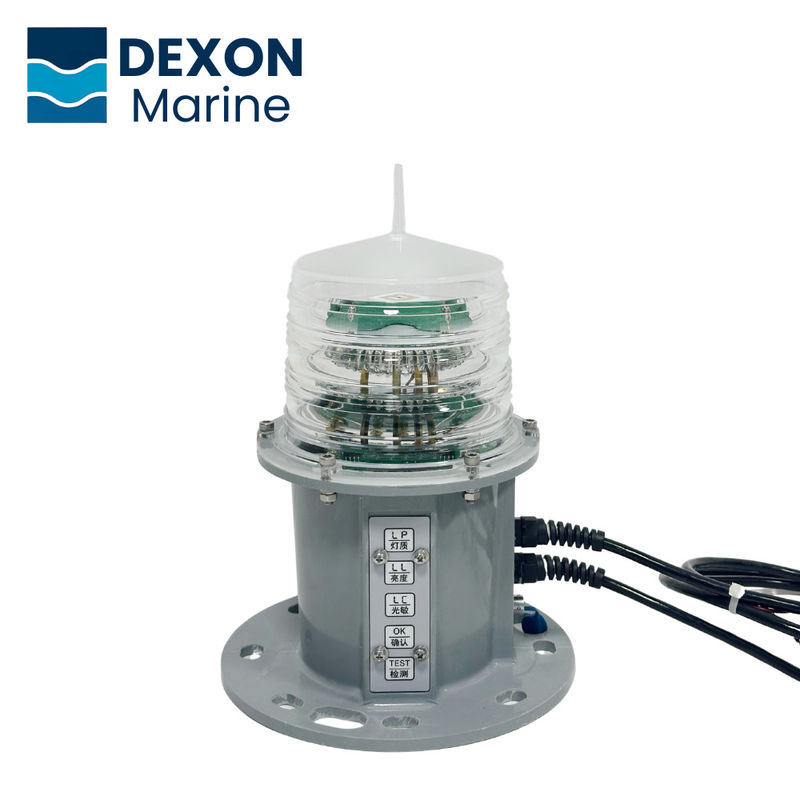

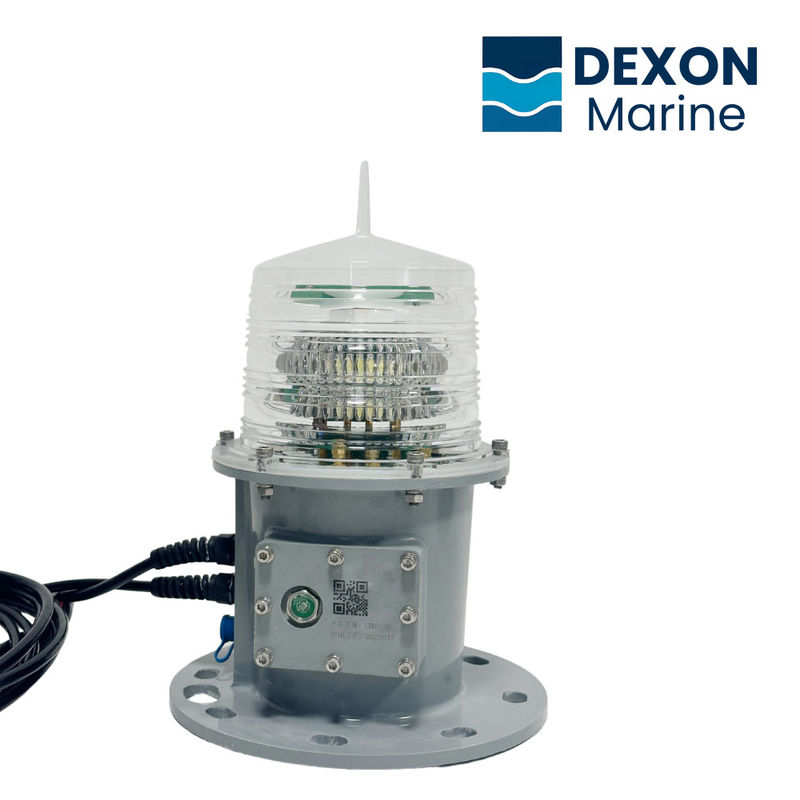

Low Power LED Marine Lanterns With SMC Shell AIS Ready 256 Level Intensity
Product Summary
Low-power marine lantern with an SMC shell offers 256 levels of intensity Buoys ｜Beacons ｜Harbor Entrances ｜Offshore Platforms ｜Marinas The LED lantern has been designed for versatility and long-term use. It features a smart power system and is compatible with 8–32V DC input, making it ideal for use ...
Product Custom Attributes
Low Power LED Marine Lanterns
,SMC Shell LED Marine Lanterns
Basic Properties
Trading Properties
Product Description
Buoys ｜Beacons ｜Harbor Entrances ｜Offshore Platforms ｜Marinas
The LED lantern has been designed for versatility and long-term use. It features a smart power system and is compatible with 8–32V DC input, making it ideal for use with external solar or backup power supplies. It performs reliably across a wide range of climates and remains operational in harsh marine conditions thanks to its IP68 waterproof rating. The unit offers flexible lighting modes, multiple flash configurations, and can be customized to suit different light colors and intensities, meeting IALA standards for a variety of navigational needs.
Core advantages
- Equipped with a wide 8–32V DC input, making it compatible with solar and external power sources.
- IP68 waterproof protection ensures safe operation in harsh marine settings.
- Capable of supporting multiple flash patterns and offers adjustable light intensity levels.
- Customisable colour output and is compliant with IALA navigation standards.
- Designed for remote, long-term operation with minimal intervention.
- Smart power system has been developed to deliver consistent performance across all climates.
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Operating Voltage | DC 8V—32V, intelligent compatibility with DC 12V and 24V |
|
Flash Mode
|
256 adjustable options Brightness: Adjustable by percentage |
|
|
Light Colore
|
Red/Green/Yellow/White/Blue/Yellow-Blue | |
|
Illumination Distance
|
5—7.9nm @ 0.74T | |
|
Daylight Threshold
|
Digital light sensor, adjustable threshold | |
|
Waterproof Rating
|
IP68
|
|
|
Operating Temperature
|
-35°C to +65°C
|
|
|
Emission Angle
|
Floating Light ≥8°
|
|
| Horizontal Max Luminous Intensity |
White: 464cd/6.6W ｜ Red: 196cd/5W Yellow: 125.6cd/5.29W ｜ Blue: 126cd/6.3W |
|
| LED Lifespan | >100,000 hours | |
|
Light features
|
Lens Material
|
Optical Acrylic |
| Lens Size | 155mm | |
| Shell Material | Composite SMC (Fiberglass) | |
| Charging Current | ≤10A | |
| Synchronous Flash | Synchronous flashing function | |
| Number of Layers | One or two layers controllable | |
|
Parameter Setting
|
RS232, Button
|
|
|
Installation Size
|
Conforms to domestic and international standards
|
|
| Weight | ≤2.6KG | |
| Product Size | 240*240*342mm |
Drawings
Application
- Buoys
- Beacons
- Harbor Entrances
- Offshore Platforms
- Floating AtoN Installations
- Marinas
- Docks & Piers
- Channel Markers
FAQ
1, What power input does it support?
Wide 8–32V DC input — ideal for solar and external systems.
2, Is it waterproof?
Yes. IP68-rated for safe use in tough marine environments.
3, Can I adjust the light settings?
Supports 256 flash patterns and light intensity levels.
4, Are color options available?
Yes. IALA-compliant red, green, white, yellow, or blue.
5, Is it good for long-term unmanned use?
Built for remote, low-maintenance AtoN deployments.
6, How does it perform in extreme weather?
Smart power system ensures stable output in any climate.
