LED Navigation Buoy Lights Smart AtoN Marine Lantern IP68 For Harsh Sea Conditions
Product Summary

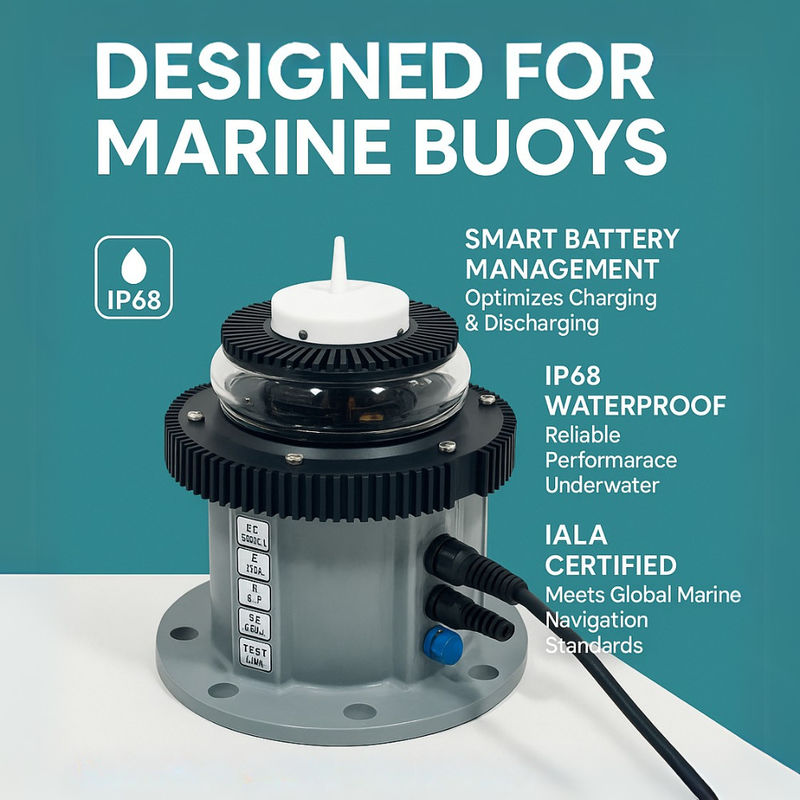

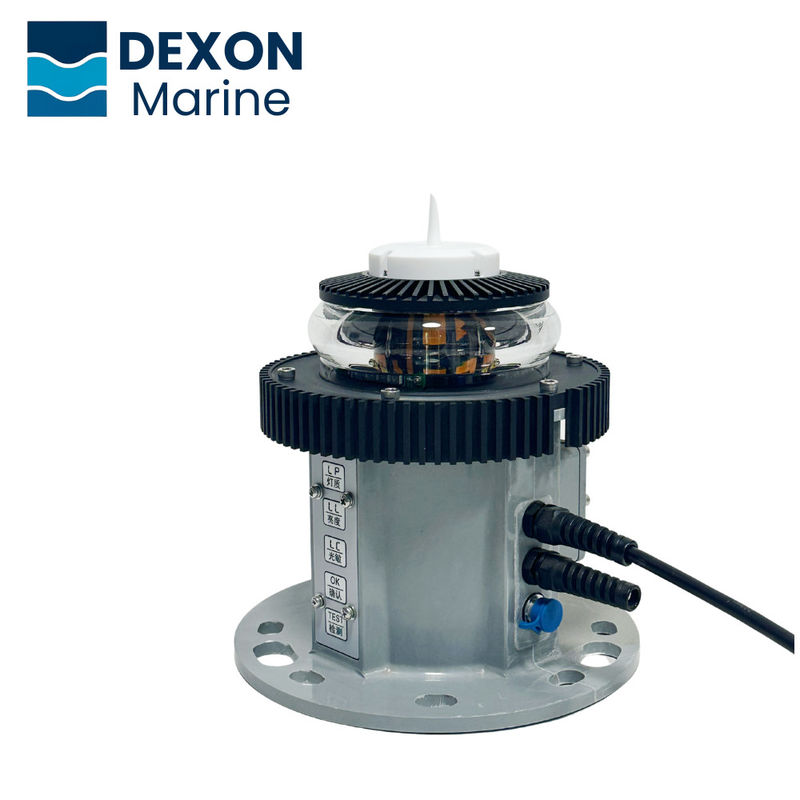

Navigation Buoy LED Light withstand the most challenging marine conditions Buoys ｜Beacons ｜Harbor Entrances ｜Offshore Platforms ｜Marinas The DX-ML160 is a compact, IALA-compliant LED marine light that has been built for both floating and fixed AtoN installations. The product incorporates a state-of...
Product Custom Attributes
IP68 LED Navigation Buoy Lights
,Smart AtoN Marine Lantern IP68
Basic Properties
Trading Properties
Product Description
Buoys ｜Beacons ｜Harbor Entrances ｜Offshore Platforms ｜Marinas
Core advantages
- The design is IALA-compliant, making it suitable for both floating and fixed AtoN installations.
- Advanced BMS is designed to ensure the efficient management of battery cycles, thereby maximising operational longevity.
- Compatible with external power sources, allowing for flexible deployment and energy stability.
- Fully sealed IP68 construction ensures reliable performance in submerged and high-salinity environments.
- Durable ABS+PC housing offers exceptional resilience against extreme weather conditions, including storms, UV exposure and saltwater corrosion.
- Optimised for remote, unmanned operation, with minimal maintenance needs.
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Operating Voltage | DC 8V—32V, intelligent compatibility with DC 12V and 24V |
|
Flash Mode
|
256 adjustable options Brightness: Adjustable by percentage |
|
|
Light Colore
|
Red/Green/Yellow/White/Blue/Yellow-Blue | |
|
Illumination Distance
|
5—11nm @ 0.74T | |
|
Daylight Threshold
|
Digital light sensor, adjustable threshold | |
|
Waterproof Rating
|
IP68
|
|
|
Operating Temperature
|
-35°C to +65°C
|
|
|
Emission Angle
|
Fixed Light ≥2.5°
|
|
| Horizontal Max Luminous Intensity |
White: 2800cd/33.6W ｜ Red: 1955.9cd/19.8W Yellow: 1186cd/22.9W ｜ Blue: 663cd/33.6W Green: 1587cd/33.9W |
|
| LED Lifespan | >100,000 hours | |
|
Light features
|
Lens Material
|
Optical Acrylic |
| Lens Size | 155mm | |
| Shell Material | Composite SMC (Fiberglass) | |
| Charging Current | ≤10A | |
| Synchronous Flash | Synchronous flashing function | |
| Number of Layers | One or two layers controllable | |
|
Parameter Setting
|
RS232, Button
|
|
|
Installation Size
|
Conforms to domestic and international standards
|
|
| Weight | ≤2.6KG | |
| Product Size | 240*240*267mm |
Drawings
Application
- Buoys
- Beacons
- Harbor Entrances
- Offshore Platforms
- Floating AtoN Installations
- Fixed AtoN Installations
- Marinas
- Docks & Piers
- Channel Markers
FAQ
1, Is the lantern suitable for fixed and floating AtoN?
Yes. IALA-compliant for both buoy and beacon installations.
2, How reliable is it in harsh marine conditions?
Fully sealed IP68 with ABS+PC housing—built for saltwater, storms, and UV.
3, Has this product been widely deployed?
Yes. Trusted by 70%+ of China’s maritime bureaus for AIS AtoN projects.
4, How is it powered?
Supports external power + built-in smart BMS for stable long-term use.
5, What are the shipping and delivery options?
DHL for small orders, sea freight for bulk. Delivery in 5–14 days depending on order type.
