12V Marine 11nm IP68 LED Navigation Lights For Boat / Fixed Lighthouse / Floating Buoys
Product Summary
12V Marine 11nm IP68 LED Navigation Lights For Boat ,fixed Lighthouse, Floating Buoys IP68｜256 Flash Patterns｜Smart Battery Control｜IALA Compliant The DX-ML160 is a compact, IALA-compliant LED marine navigation light designed for floating and fixed installations. Unlike conventional models, it ...
Product Custom Attributes
10nm IP68 LED Navigation Lights
,12V Marine LED Navigation Lights
Basic Properties
Trading Properties
Product Description
12V Marine 11nm IP68 LED Navigation Lights For Boat ,fixed Lighthouse, Floating Buoys
IP68｜256 Flash Patterns｜Smart Battery Control｜IALA Compliant

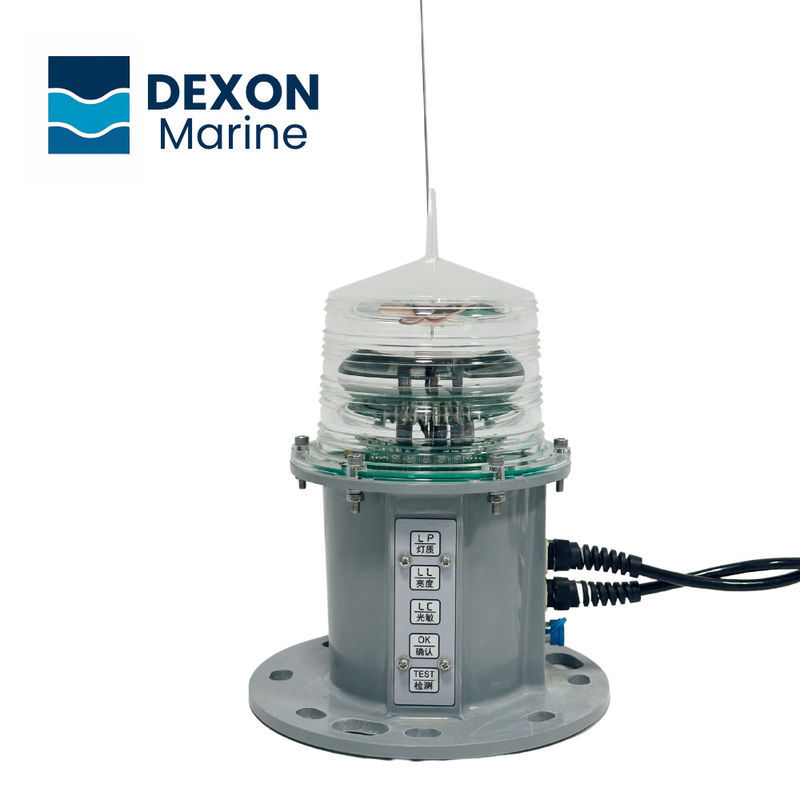

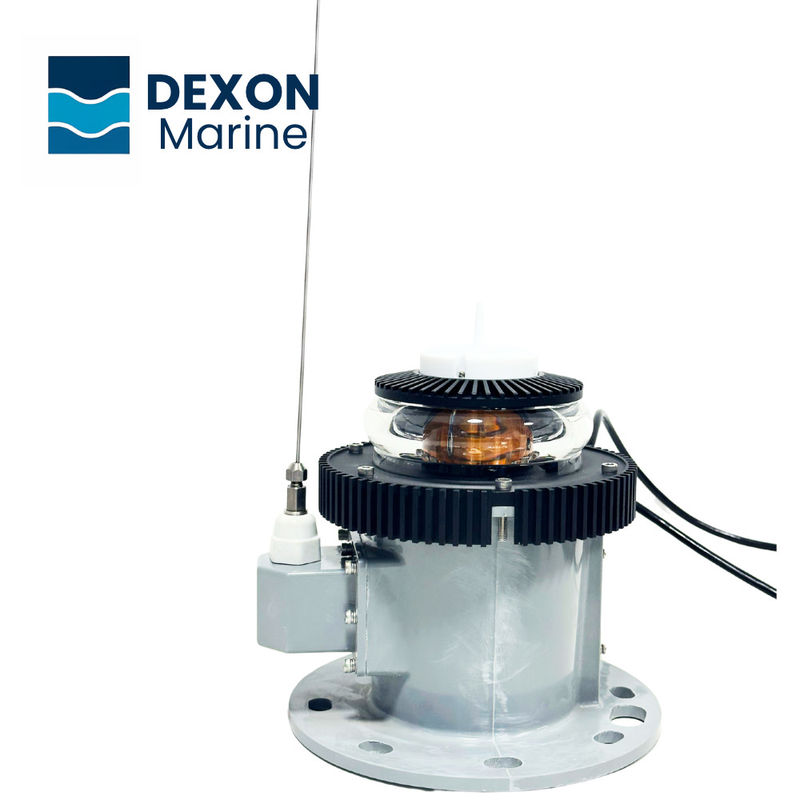

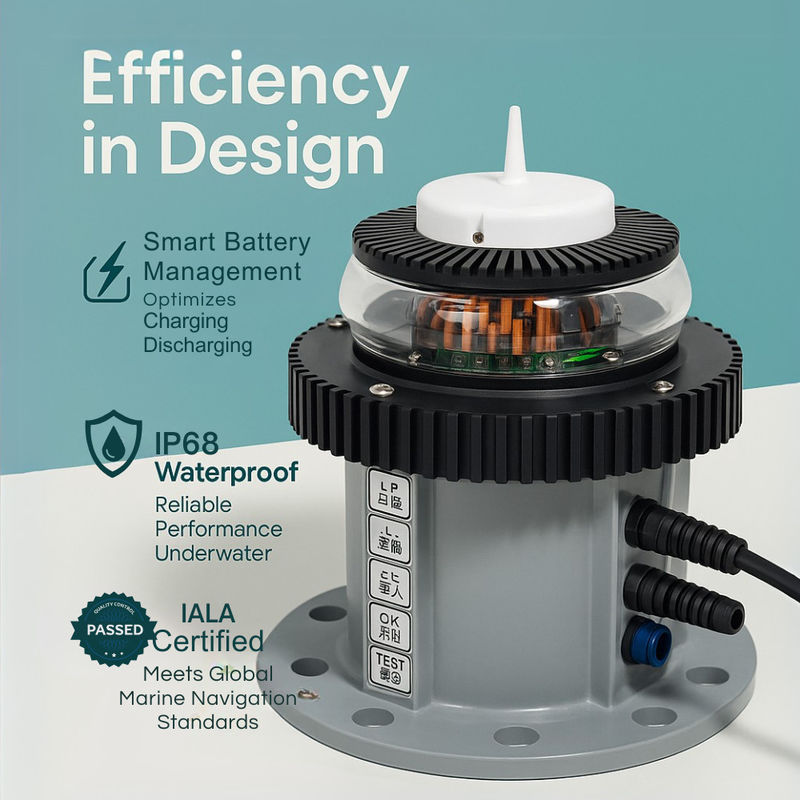

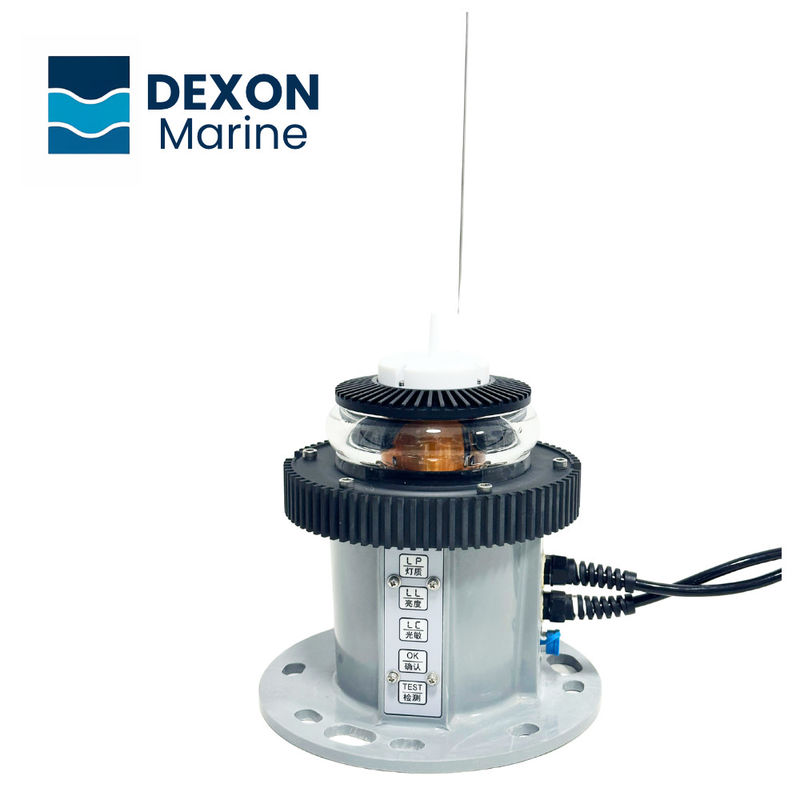

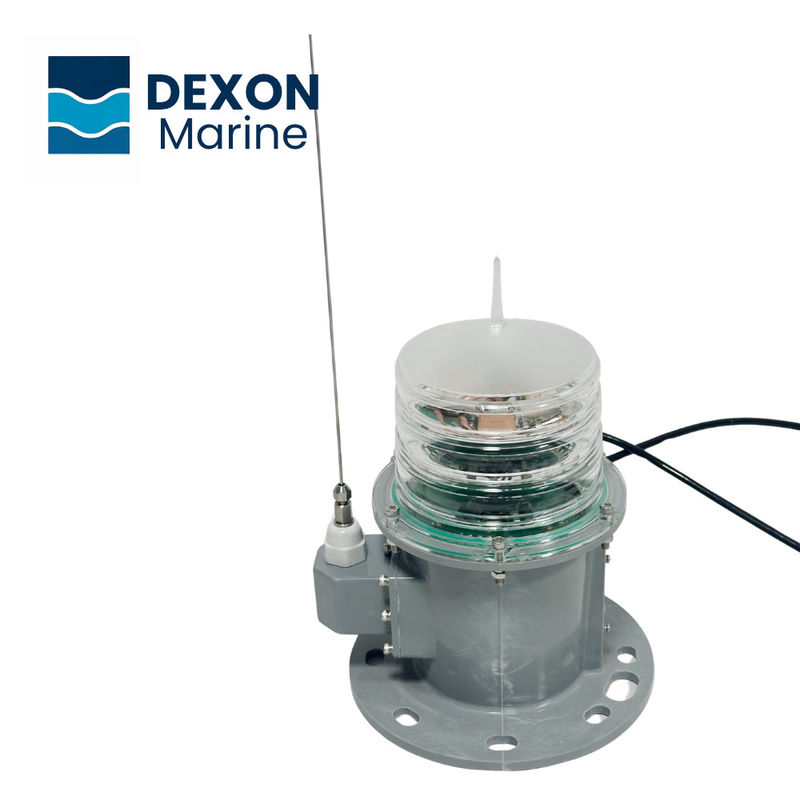

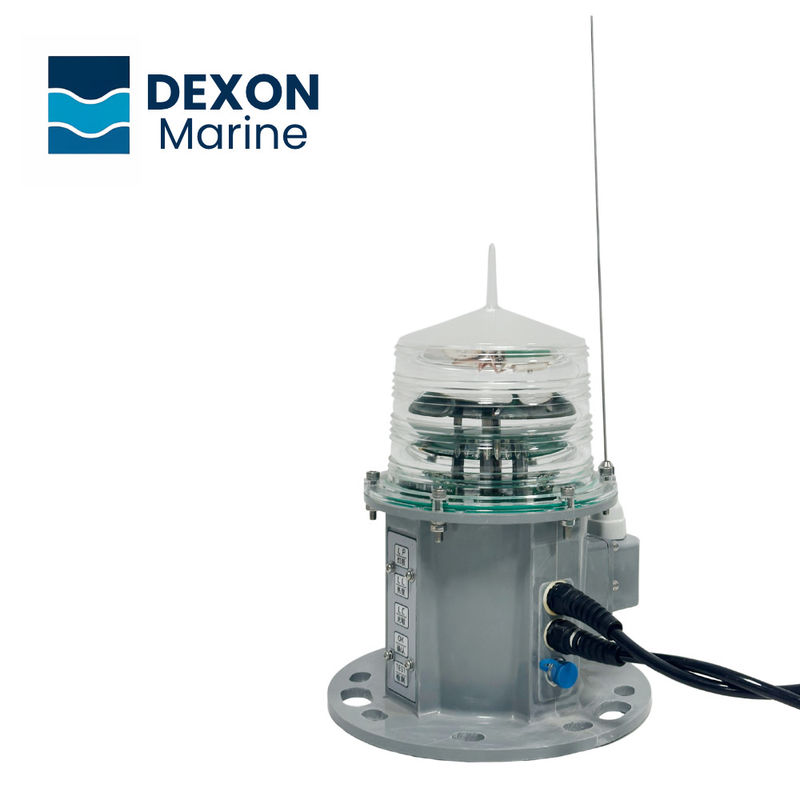

The DX-ML160 is a compact, IALA-compliant LED marine navigation light designed for floating and fixed installations. Unlike conventional models, it features a built-in battery management system that intelligently handles charge and discharge cycles when connected to an external power source—helping extend battery life and reduce maintenance. With a fully sealed IP68-rated structure, it can operate reliably even underwater, making it ideal for harsh marine environments where durability and stability are essential.
Key Advantages
- Smart battery charge/discharge management
- IP68 waterproof, supports underwater operation
- Compact and rugged marine-grade design
- Compatible with 8V–32V external DC power
- Available in IALA standard colors
- Floating and fixed beacon lens options
- 256 selectable flash patterns
- UV-resistant, anti-corrosion materials
- Low maintenance, long service life
- Supports OEM customization
Technical Data
| Category | Item | Parameter |
| Device Features | Operating Voltage | DC 8V—32V, intelligent compatibility with DC 12V and 24V |
| Charging Current | ≤10A | |
| Parameter Setting | RS232, Button | |
| Installation Size | Conforms to domestic and international standards | |
| Shell Material | Composite SMC (Fiberglass) | |
| Waterproof Rating | IP68 | |
| Operating Temperature | -35°C - 65°C | |
| Weight | ≤2.6KG | |
| Light Features | Light Color | Red/Green/Yellow/White/Blue/Yellow-Blue |
| LED Lifespan | >100,000 hours | |
| Synchronous Flash | Synchronous flashing function | |
| Number of Layers | One or two layers controllable | |
| Light Quality | 256 adjustable options | |
| Brightness | Adjustable by percentage | |
| Sunlight Threshold | Digital light sensor, adjustable threshold | |
| Illumination Distance | 5—11nm @ 0.74T | |
| Emission Angle | Floating marker light ≥8° | |
| Lens Size | 155mm | |
| Lens Material | Optical Acrylic | |
| Horizontal Max Luminous Intensity (Red) | 1955.9cd/19.8W | |
| Horizontal Max Luminous Intensity (Yellow) | 1186cd/22.9W | |
| Horizontal Max Luminous Intensity (White) | 2800cd/33.6W | |
| Horizontal Max Luminous Intensity (Green) | 1587cd/33.9W | |
| Horizontal Max Luminous Intensity (Blue) | 663cd/33.6W |
Two Models Option
Drawings (mm)
Floating Marker Light
Fixed Marker Light
FAQ
1. How is the product shipped and packaged?
Small quantity: Door-to-door via DHL express (under long-term cooperation)
Bulk orders: Export-grade sea freight, with MSDS and transportation certification
Packaging: One light per carton, export-ready with plastic pallets for ocean shipping
2 . What is the typical delivery time?
In-stock items (<100 units): 5–7 working days
Customized software service: approx. 7 working days
Other customizations: approx. 2 weeks
Special projects: subject to specific lead time confirmation
3.Why choose DX-ML160 marine navigation light?
Unlike standard LED beacons, the DX-ML160 features an integrated battery management system, which helps extend battery life when connected to external DC power. Its IP68 waterproof rating and rugged, compact structure ensure stable performance even in submerged or extreme marine environments.
