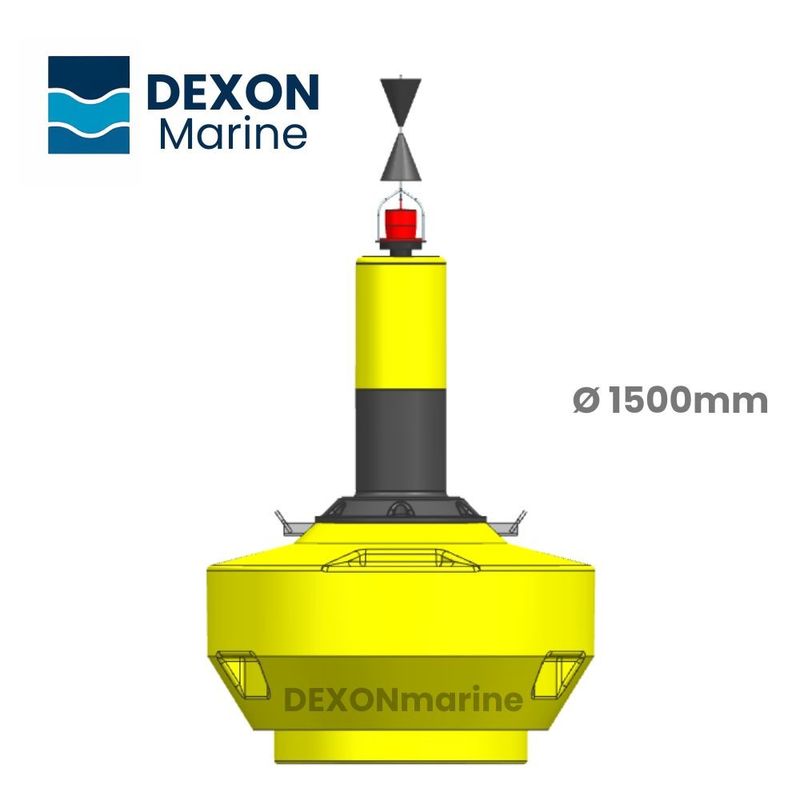

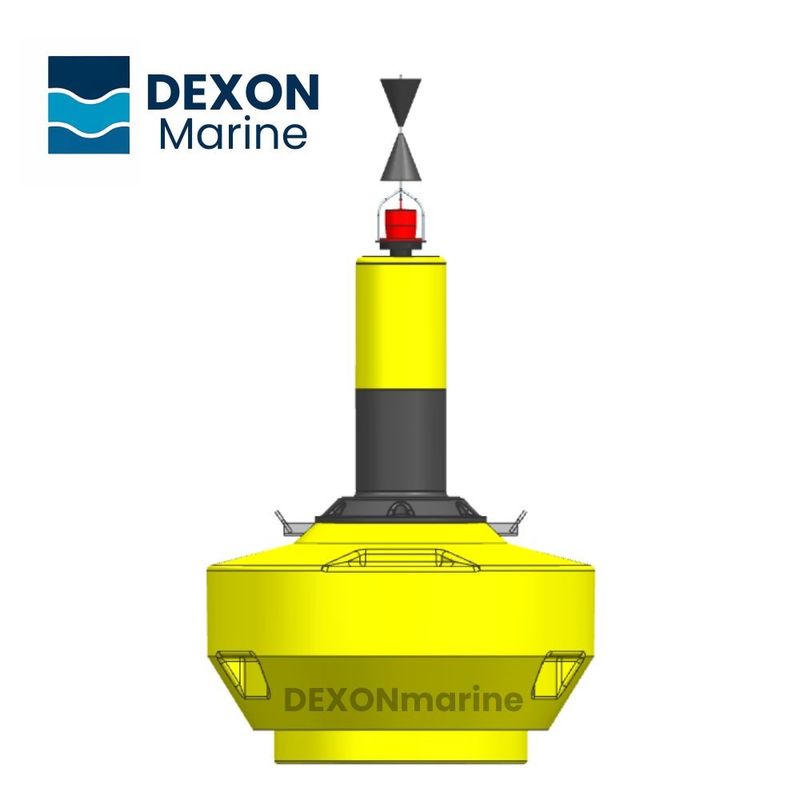

The Dexonmarine DMF1500 Cardinal Navigation Aid Buoy is a 1500mm diameter navigation buoy designed for challenging environments. It is ideal for rivers, ports, harbors, and estuaries with water currents flowing up to 5 knots.
Diameter: ∅1500mm
Application: Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.
The DMF1500 Cardinal Navigation Aid Buoy is a top navigation aid, providing outstanding value for money. This product is constructed with advanced technology and top-tier manufacturing standards. It features a polyethylene shell, EPS foam core, two lifting points, and a galvanized steel mooring eye for secure anchoring. The buoy is equipped with lifting handles, cast iron ballasts, a removable mast, and a durable polyethylene top mark, ensuring reliable and long-lasting performance for marine navigation
Optional Equipment: Radar reflectors and marine lanterns
TECHNICAL DATA
| General Characteristics |
| Color |
Red, Green, White, Yellow as per IALA Recommendations |
| Diameter |
1500mm |
| Height (no topmark) |
1956 mm |
| Material |
Polyethylene |
| Filling |
EPS Foam |
| Buoyancy |
900KG |
| Balance Weight |
120KG |
| Focal Plane |
From 1760 mm |
| Structure, Lifting & Mooring Points |
S235 galvanized steel (SS316 option available) |
| Float and Mast |
UV-stabilized grade 16 Polyethylene high density. Rotational moulding |
| Ballasts |
Cast Iron. Removable |
| Topmark |
Rotomolded Polyethylene, PVC, and Nylon, Aluminum * |
| Eco-Friendly |
Recyclable polyethylene. Heavy metal-free. No ecological damages |
| Certifications |
| IALA |
Compliant to IALA E-108 |
| Quality Assurance |
ISO9001:2015 |
MORE INFORMATION
SUPERIOR MATERIALS FOR MAXIMUM RELIABILITY
Body Material: Made from LLDPE, ensuring high resistance to damage from weather and saltwater.
Filling: EPS foam provides reliable buoyancy, keeping the buoy afloat.
Mooring Points: Galvanized steel ensures secure anchoring and long-term durability.
Constructed from rigid PVC & Nylon for improved visibility and strength.
Eco-Friendly: Recyclable polyethylene, heavy metal-free, making it a safe choice for the environment.
BUOYANCY AND STABILITY FEATURES FOR YOUR NEEDS
Optimized Buoyancy: The buoy’s buoyancy is adaptable to changing water conditions like salinity and flow.
Balance Weight Options: Balance weights are optional to help adjust the buoy’s stability based on specific environmental needs.
Customizable Mooring Chain: The mooring chain can be customized to meet your environment’s specific requirements, ensuring stability.
CHOICE OF LIGHTING OPTIONS
Dexonmarine's LED self-contained lanterns are used for all models, ensuring long-term illumination and low maintenance.
DRAWING(mm)
