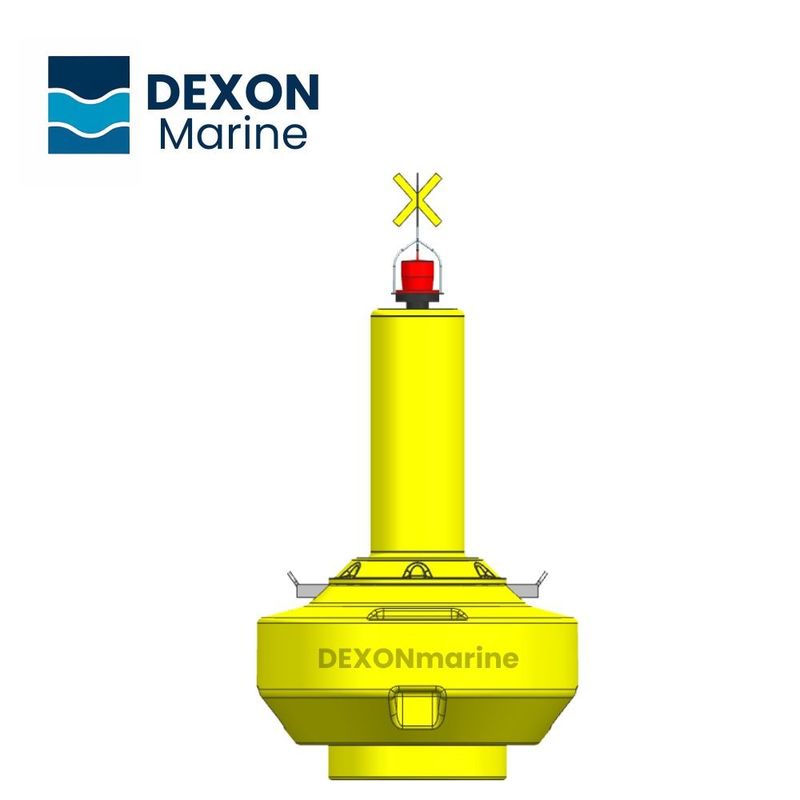

The Dexonmarine DMF1200 Special Mark Marine Navigation Buoy, with a 1200-mm diameter, is engineered for use in rivers, ports, harbors, and estuaries where water currents can reach up to 4 knots.
Diameter: ∅1200mm
Application: Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.
The DMF1200 Special Mark Marine Buoy is an essential tool for navigating special mark buoys, also known as marker buoys and floating beacons. It combines a compact design with optimized performance, powered by Dexonmarine's latest technologies. Its durable design includes a polyethylene shell, EPS foam filling, two lifting points, and a galvanized steel mooring eye. This product is equipped with several useful features, including lifting handles, cast iron ballasts, a removable mast, and a St. Andrew's cross. These characteristics make it a reliable solution for marking hazardous areas in both water and marine environments.
Optional Equipment: Radar reflectors and marine lanterns
TECHNICAL DATA
| General Characteristics |
| Color |
Red, Green, White, Yellow as per IALA Recommendations |
| Diameter |
1200mm |
| Height (no topmark) |
1755 mm |
| Material |
Polyethylene |
| Filling |
EPS Foam |
| Buoyancy |
400KG |
| Balance Weight |
75KG |
| Focal Plane |
From 1485 mm |
| Structure, Lifting & Mooring Points |
S235 galvanized steel (SS316 option available) |
| Float and Mast |
UV-stabilized grade 16 Polyethylene high density. Rotational moulding |
| Ballasts |
Cast Iron. Removable |
| Topmark |
Rotomolded Polyethylene, PVC, and Nylon, Aluminum * |
| Eco-Friendly |
Recyclable polyethylene. Heavy metal-free. No ecological damages |
| Certifications |
| IALA |
Compliant to IALA E-108 |
| Quality Assurance |
ISO9001:2015 |
MORE INFORMATION
BUILT WITH THE HIGHEST STANDARDS OF MATERIALS
Body Material: Constructed from LLDPE, which ensures excellent durability and resistance to corrosion.
Inner Filling: EPS foam guarantees excellent buoyancy.
Mooring Points: Features galvanized steel for secure and long-lasting anchoring.
Topmark: Made from rigid PVC & Nylon for superior durability and visibility.
Sustainable Choice: Made from recyclable polyethylene, free from heavy metals and environmentally safe.
ADAPTABLE FLOATING AND STABILITY FEATURES
Buoyancy Optimization: The buoy’s buoyancy is customizable based on water conditions to maintain its efficiency.
Balance Weight: Balance weights are available as an option, providing flexibility to maintain buoy stability.
Mooring Chain: Customizable mooring chains are available to ensure secure placement in all environments.
PREFERRED LIGHTING OPTIONS
Dexonmarine's LED self-contained lanterns provide long-lasting and reliable lighting for your buoy.
Available in Red, Green, White, and Yellow colors to meet various visibility and regulatory requirements.

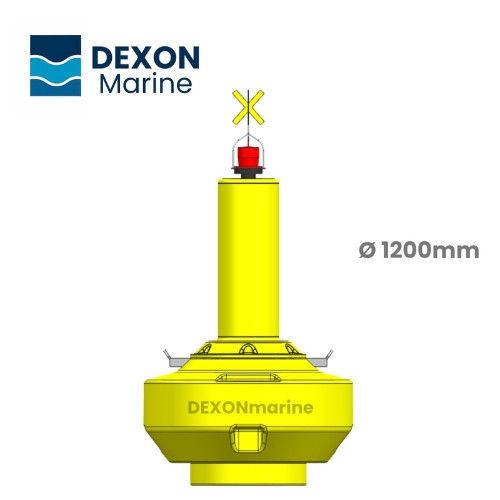

DRAWING(mm)
