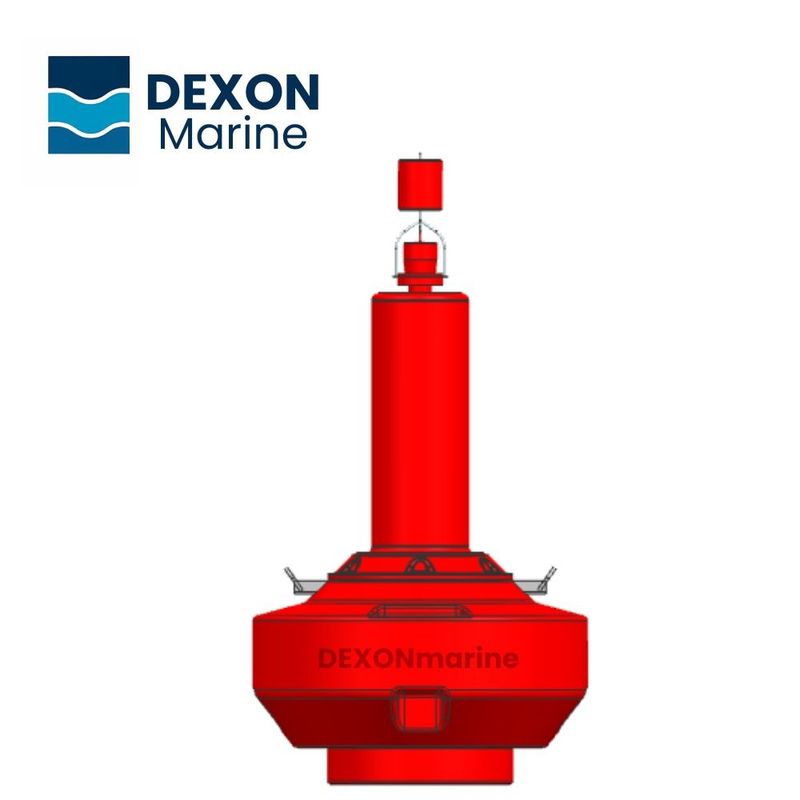

The Dexonmarine DMF1200 Lateral Floating Beacon Marine Buoys is a 1200mm diameter navigation buoy designed for challenging environments. It is ideal for rivers, ports, harbors, and estuaries with water currents flowing up to 4 knots.

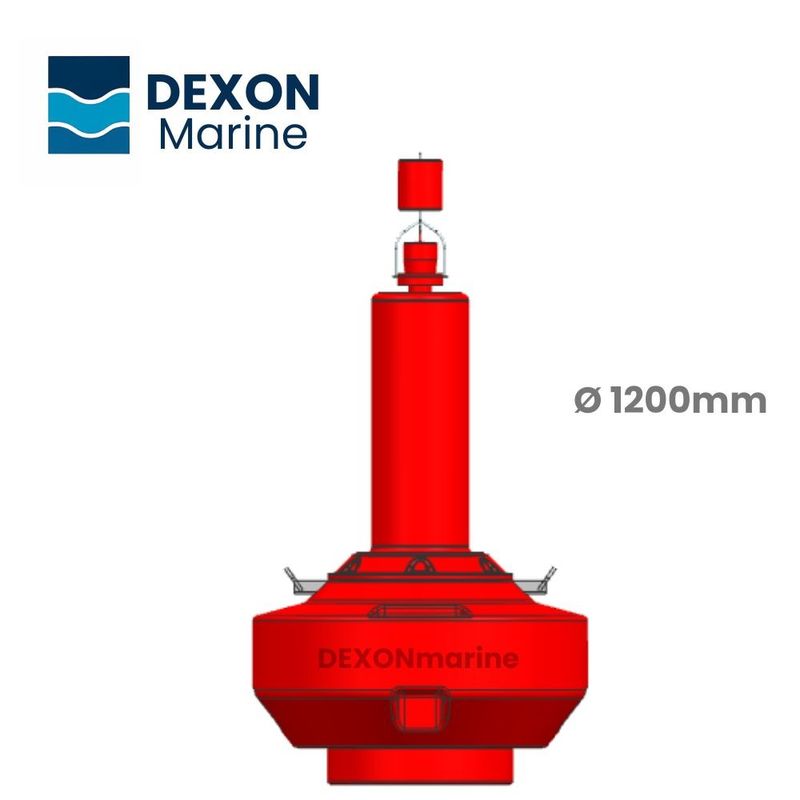

Diameter: ∅1200mm
Application: Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.
The DMF1200 Lateral Floating Beacon Marine Buoys is designed to deliver superior performance, integrating Dexonmarine's state-of-the-art technologies and a polyethylene shell with EPS foam filling to ensure prolonged buoyancy. The buoy is equipped with two lifting points and a galvanized steel mooring eye, ensuring secure attachment. The Dexonmarine DMF1200 is a 1200-mm diameter navigation buoy designed for rivers, ports, harbors, and estuaries with water currents flowing up to 4 knots. It features lifting handles, cast iron ballasts, a removable mast, and a rigid PVC & Nylon topmark, making it a durable and efficient solution for marking hazardous areas in water and marine environments.
Optional Equipment: Radar reflectors and marine lanterns
TECHNICAL DATA
| General Characteristics |
| Color |
Red, Green, White, Yellow as per IALA Recommendations |
| Diameter |
1200mm |
| Height (no topmark) |
1755 mm |
| Material |
Polyethylene |
| Filling |
EPS Foam |
| Buoyancy |
400KG |
| Balance Weight |
75KG |
| Focal Plane |
From 1485 mm |
| Structure, Lifting & Mooring Points |
S235 galvanized steel (SS316 option available) |
| Float and Mast |
UV-stabilized grade 16 Polyethylene high density. Rotational moulding |
| Ballasts |
Cast Iron. Removable |
| Topmark |
Rotomolded Polyethylene, PVC, and Nylon, Aluminum * |
| Eco-Friendly |
Recyclable polyethylene. Heavy metal-free. No ecological damages |
| Certifications |
| IALA |
Compliant to IALA E-108 |
| Quality Assurance |
ISO9001:2015 |
MORE INFORMATION
DURABLE MATERIALS THAT LAST
Body Material: Made from LLDPE, ensuring the buoy withstands the toughest marine conditions.
Internal Filling: EPS foam ensures superior flotation and strength.
Mooring Points: Galvanized steel provides secure mooring, ensuring long-term durability.
Topmark: Crafted from rigid PVC & Nylon for maximum durability and visibility.
Eco-Friendly: Made with 100% recyclable polyethylene, heavy metal-free, and safe for the environment.
BUOYANCY AND STABILITY THAT FITS YOUR NEEDS
Buoyancy Customization: The DMF1200 Lateral Floating Beacon Marine Buoy’s buoyancy is optimized based on specific water conditions, ensuring performance in various environments.
Balance Weight: Balance weights are available to adjust the buoy’s stability, helping it stay in place in fast-moving or turbulent water.
Mooring Chain: The mooring chain can be customized to fit the specific environment and anchoring requirements.
LONG-LASTING AND RELIABLE LIGHTING
Equipped with Dexonmarine's LED self-contained lanterns, the DMF1200 ensures high visibility and energy-efficient performance.
Lanterns are available in Red, Green, White, and Yellow colors to meet all regulatory and safety needs.
DRAWING(mm)
