Outdoor AIS AtoN Base Station 20NM Coverage Low Power For Buoy Networks & Fixed Lights

AIS AtoN Base Station 20NM Coverage

Buoy Networks AIS AtoN Base Station

Place of Origin:

Chengdu

Brand Name:

Dexon

Certification:

CE、RoHS、ISO、IEC、IALA、IMO

Model Number:

DX082FA

Request A Quote

Outdoor AIS AtoN Base Station 20NM Coverage Low Power For Buoy Networks & Fixed Lights

Product Details

Interface Types:

RS232, RS485, RJ45

Materia:

FRP (Fiberglass Reinforced Plastic)

Message:

Message 21, 6, 8, 14, Supports Multiple Formats

AIS Transmission Distance:

20NM~25NM

Operating Temperature:

-30°C To +60°C

Protection Level:

IP68

Certifications:

CE, RoHS, ISO,IEC, IALA

Applications:

Coastal Ports & Harbors Offshore Oil & Gas Platforms Inland Waterways & Rivers Fixed Navigation Aids (Buoys, Beacons, Light Towers) National Maritime Surveillance Systems Remote & Solar-Powered Marine Stations

Highlight:

AIS AtoN Base Station 20NM Coverage

Buoy Networks AIS AtoN Base Station

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 2000~3000

Packaging Details

cartons/pallets

Delivery Time

3～10 days

Payment Terms

D/A,D/P,T/T,Western Union,MoneyGram,L/C

Supply Ability

10000/month

Solar IP68 Level AIS AtoN Inspection Device Real Time Position & System Health Updates

Get Best Price

Modular AIS AtoN Device Real Time Marine Monitoring IMO IEC Compliant

Get Best Price

Compact AIS Navigation Unit Solar Ready With 100Wh Lithium Battery Smart BMS

Get Best Price

AIS Solar Navigation Device IP68 Waterproof 100Wh Battery Low Power System

Get Best Price

Contact Now

Product Description

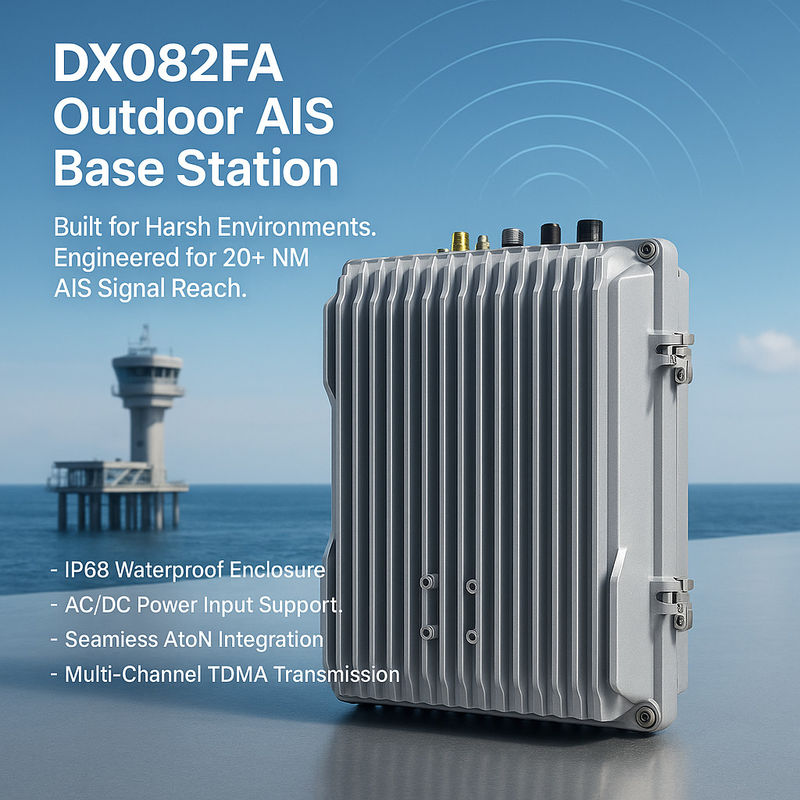

Durable Marine AIS AtoN Base Station for Ports & Platforms

Built for Harsh Environments

Designed for seamless integration with Dexonmarine’s AIS AtoN systems, the DX082FA forms a fully compatible solution that meets IALA and IMO standards. It supports multiple AIS message formats and includes options for 4G/5G connectivity, an Ethernet interface and solar power and battery operation. These features ensure easy scalability, centralised monitoring and real-time data flow for inland and offshore navigation safety systems.

Outdoor AIS AtoN Base Station 20NM Coverage Low Power For Buoy Networks & Fixed Lights 0

Core advantages

Seamlessly integrates with Dexonmarine AIS AtoN systems for zero-configuration deployment.
Supports AIS message formats 6, 8, 14 and 21, and is compliant with IALA and IMO standards.
Modular design with optional 4G/5G, Ethernet, solar power and battery backup.
IP68-rated, corrosion-resistant FRP housing is engineered for all-weather marine environments.
Enables centralised monitoring and real-time data flow for coastal and offshore safety.
Ideal for scalable deployments across ports, river channels and offshore platforms.

Technical specification

Category	Specification	Details
Main features	Power Supply Range	AC 220V or DC 8~32V
	Operating Frequency	161.975MHz, 162.025MHz
	Frequency Error	±0.3kHz
	Channel Bandwidth	25KHz
	Receiving Sensitivity	≤-107dBm
	Transmit Power	Default ≤6W, ≤12.5W(adjustible)
	Average Power Consumption	≤1W(continuous operation)
	Interface Types	RS232, RS485, RJ45
	Modulation Rate	9600bps
	Data Format	NMEA 0183
	Message Format	VDM
	Main/Backup Mode	Supported
	Operating Temperature	-30°C to +60°C
	Virtual Beacons	Supports up to 8
	Weight	≤8kg
	Local Storage	Expandable, supports up to 64GB

Outdoor AIS AtoN Base Station 20NM Coverage Low Power For Buoy Networks & Fixed Lights 1

Application

Coastal Ports & Harbors	Offshore Oil & Gas Platforms
Inland Waterways & Rivers	Fixed Navigation Aids (Buoys, Beacons, Light Towers)
National Maritime Surveillance Systems	Remote & Solar-Powered Marine Stations

FAQ

1, Is it easy to deploy with Dexonmarine systems?
Yes. Seamless plug-and-play integration with Dexonmarine AIS AtoN.

2, Which AIS messages are supported?
Fully supports messages 6, 8, 14, and 21 per IALA/IMO standards.

3, Is it suitable for harsh marine environments?
Yes. IP68-rated with corrosion-resistant FRP housing for all-weather use.

4, Can it support modular upgrades?
Absolutely. Options include 4G/5G, Ethernet, solar, and battery backup.

5, Is real-time remote monitoring possible?
Yes. Enables centralized control and live data flow for safety networks.

6, What are the weight and deployment use cases?
8 kg. Ideal for ports, rivers, and offshore platforms.

Outdoor AIS AtoN Base Station 20NM Coverage Low Power For Buoy Networks & Fixed Lights 2
