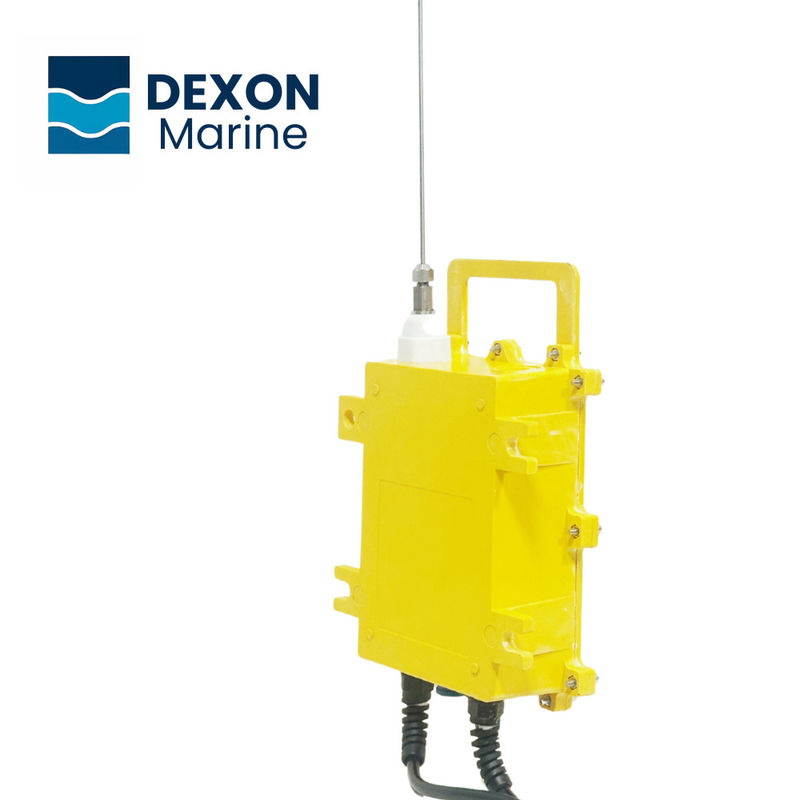

Modular AIS AtoN Device Real Time Marine Monitoring IMO IEC Compliant
Product Summary
Real-time marine monitoring is made possible with this IMO/IEC-compliant modular AIS AtoN device Thanks to its flexible modular design, the DX901 is easy to integrate with existing marine infrastructure, such as buoys, lighthouses and data buoys. It is compatible with global AIS protocols (IMO/IEC ...
Product Custom Attributes
Marine Monitoring AIS AtoN Device
,IEC Compliant Modular AIS AtoN Device
,Modular AIS AtoN Device
Basic Properties
Trading Properties
Product Description
Core advantages
- Ultra-low static power consumption under 2mA—perfect for autonomous, long-term deployments.
- Transmits AIS signals over 20+ nautical miles with <6W output—no base station required.
- Modular design integrates easily with buoys, beacons, and marine infrastructure.
- Supports real-time updates on position, system health, and status via AIS protocol.
- IMO/IEC-compliant and globally compatible with all AIS AtoN networks.
- Built for coastal, offshore, and remote monitoring—scalable AIS visibility at sea.
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Operating Voltage | DC 8V–32V, intelligently compatible with DC 12V and 24V |
| Average Power Consumption | Continuous mode: ≤1W ｜ Low-power mode: ≤0.7W | |
| Message Format | Adjustable: Message 21, 6, 8, 14; supports multiple formats | |
| Operating Modes | Default Mode3 SOTDMA (Adjustable to FATDMA, RATDMA, SOTDMA) | |
| Interface | RS-232 | |
| Waterproof Rating | IP68 | |
| Temperature | Operating:−35°C to +60°C ｜Storage:−40°C to +70°C | |
| Environmental Humidity | ≤99% | |
| Charing & Load Current | ≤10A | |
|
AIS features
|
Frequency Range | 156.025MHz – 162.025MHz |
| Operating Frequency | 161.975MHz, 162.025MHz | |
| Modulation | GMSK / FSK | |
| Frequency Error | ±0.5kHz | |
| Transmission Power | ≤12.5W (Selectable: 6W or 12.5W) | |
| Receiver Sensitivity | ≤−110dBm | |
| Occupied Bandwidth | 25kHz | |
| Harmonic/Spurious Suppression | ≤−70dBc | |
|
Weight/ Size
|
Weight | ≤2kg |
| Dimensions | 281mm × 180mm × 69mm | |
| Packaging Size | 500mm × 224mm × 132mm | |
| Virtual AtoN | Supported |
Drawings
Application
FAQ
1, How low is the power consumption?
Ultra-low static draw under 2mA — ideal for long-term autonomous use.
2, What is the AIS transmission range?
Over 20 NM with <6W output — no base station needed.
3, Is it easy to install on marine infrastructure?
Yes. Modular design fits buoys, beacons, and coastal systems.
4, Does it support real-time updates?
Yes. Sends live position, system health, and status via AIS.
5, Is it globally compliant?
Fully IMO/IEC-compliant and compatible with all AIS AtoN systems.
6, What’s the size and shipping spec?
Device: 281×180×69 mm, ≤2kg. Boxed: 500×224×132 mm
