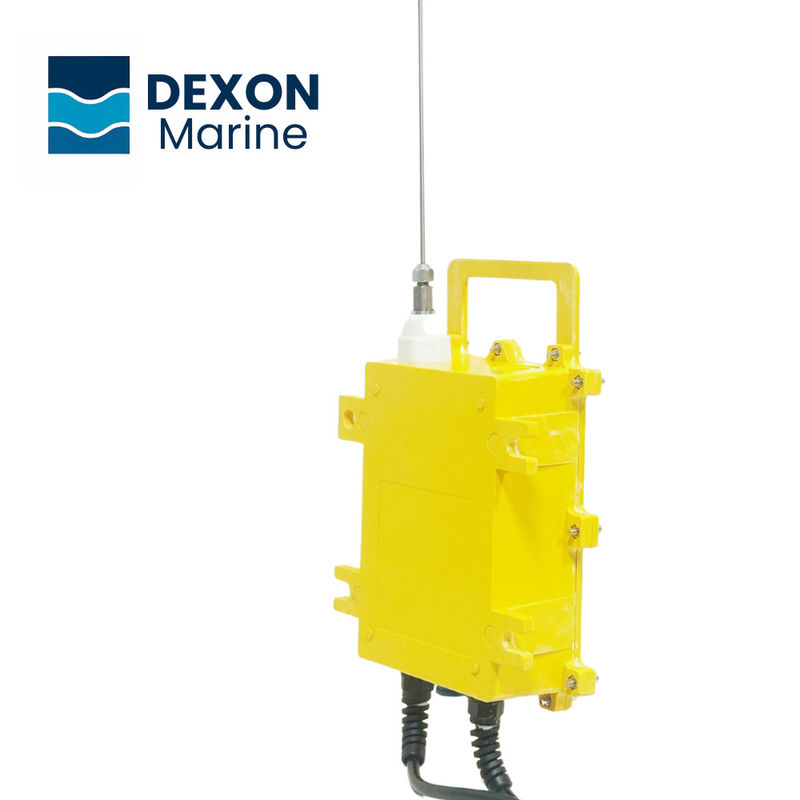

All In One AIS Based Navigation System Modular AtoN For Ports & Coastal Monitoring
Product Summary
All-in-one AIS-based navigation system—modular AtoN for Ports and Coastal monitoring The DX901 delivers signal clarity and transparency regarding the health of the system. It acts as a core element in AIS-based navigation networks. It provides global positioning, status reporting and equipment ...
Product Custom Attributes
All In One AIS Based Navigation System
,Coastal Monitoring AIS Based Navigation System
Basic Properties
Trading Properties
Product Description
The DX901 delivers signal clarity and transparency regarding the health of the system. It acts as a core element in AIS-based navigation networks. It provides global positioning, status reporting and equipment alerts while using minimal power. It is fully independent and operates without shore-based infrastructure, making it ideal for hard-to-access areas, seasonal installations or long-range autonomous systems.
Core advantages
- Enables real-time monitoring of system health, positioning and status reporting.
- Core component of AIS-based navigation and diagnostic networks.
- Operates fully autonomously, with no shore-based infrastructure required.
- Minimal power consumption ensures long-term operation in remote locations.
- Ideal for seasonal buoys, offshore beacons and hard-to-access AtoNs.
- Delivers clear, continuous AIS visibility with built-in equipment alerting.
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Operating Voltage | DC 8V–32V, intelligently compatible with DC 12V and 24V |
| Average Power Consumption | Continuous mode ≤1W ｜ Low-power mode ≤0.7W | |
| Message Format | Adjustable: Message 21, 6, 8, 14; supports multiple formats | |
| Operating Modes | Default Mode3 SOTDMA (Adjustable to FATDMA, RATDMA, SOTDMA) | |
| Interface | RS-232 | |
| Waterproof Rating | IP68 | |
| Temperature | Operating:−35°C to +60°C ｜Storage:−40°C to +70°C | |
| Environmental Humidity | ≤99% | |
| Charing & Load Current | ≤10A | |
|
AIS features
|
Frequency Range | 156.025MHz – 162.025MHz |
| Operating Frequency | 161.975MHz, 162.025MHz | |
| Modulation | GMSK / FSK | |
| Frequency Error | ±0.5kHz | |
| Transmission Power | ≤12.5W (Selectable: 6W or 12.5W) | |
| Receiver Sensitivity | ≤−110dBm | |
| Occupied Bandwidth | 25kHz | |
| Harmonic/Spurious Suppression | ≤−70dBc | |
|
Weight/ Size
|
Weight | ≤2kg |
| Dimensions | 281mm × 180mm × 69mm | |
| Packaging Size | 500mm × 224mm × 132mm | |
| Virtual AtoN | Supported |
Drawings
Application
FAQ
1, Does it support real-time monitoring?
Yes. Monitors system health, location, and status in real time.
2, Is shore-based infrastructure required?
No. Fully autonomous — ideal for remote or seasonal AtoNs.
3, How efficient is the power usage?
Ultra-low power design enables long-term, off-grid operation.
4, What AIS functionality is included?
Continuous AIS visibility with built-in equipment alerts.
5, Where can it be used?
Perfect for buoys, offshore beacons, and hard-to-reach AtoNs.
6, What are the size and shipping specs?
Weight is ≤2kg, product size 281×180×69mm; package 500×224×132mm.
