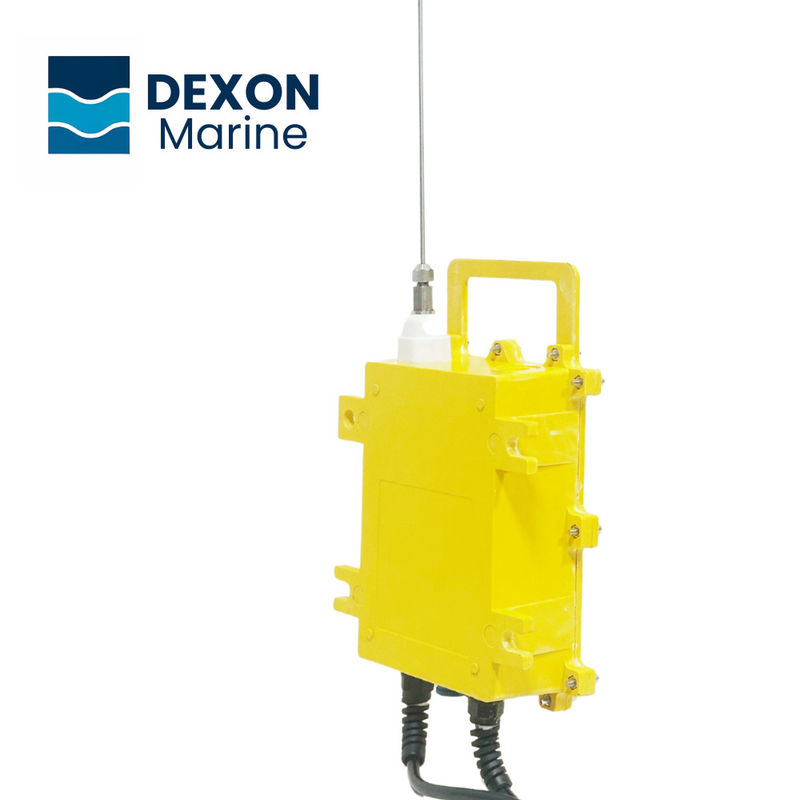

Solar IP68 Level AIS AtoN Inspection Device Real Time Position & System Health Updates
Product Summary
Real-time position and system health updates are provided by the AIS AtoN Inspection Device Designed for intelligent monitoring and remote diagnostics, the DX901 supports the transmission and reception of real-time AIS signals with no human intervention. Its compact, IP68-rated housing enables ...
Product Custom Attributes
Solar Powered AIS AtoN Inspection Device
,IP68 Level AIS AtoN Inspection Device
Basic Properties
Trading Properties
Product Description
Core advantages
- Enables real-time AIS signal transmission and reception with no human intervention required.
- Supports intelligent monitoring and remote diagnostics for critical marine infrastructure.
- Compact, rugged, IP68-rated housing is built to withstand harsh marine environments.
- Ultra-low power design ensures long-term autonomy on unmanned buoys and offshore sites.
- Ideal for data-driven navigation systems that require consistent status feedback.
- Fully autonomous AIS visibility for beacons, ports and remote AtoN networks.
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Operating Voltage | DC 8V–32V, intelligently compatible with DC 12V and 24V |
| Average Power Consumption | Continuous mode ≤1W ｜ Low-power mode ≤0.7W | |
| Message Format | Adjustable: Message 21, 6, 8, 14; supports multiple formats | |
| Operating Modes | Default Mode3 SOTDMA (Adjustable to FATDMA, RATDMA, SOTDMA) | |
| Interface | RS-232 | |
| Waterproof Rating | IP68 | |
| Temperature | Operating:−35°C to +60°C ｜Storage:−40°C to +70°C | |
| Environmental Humidity | ≤99% | |
| Charing & Load Current | ≤10A | |
|
AIS features
|
Frequency Range | 156.025MHz – 162.025MHz |
| Operating Frequency | 161.975MHz, 162.025MHz | |
| Modulation | GMSK / FSK | |
| Frequency Error | ±0.5kHz | |
| Transmission Power | ≤12.5W (Selectable: 6W or 12.5W) | |
| Receiver Sensitivity | ≤−110dBm | |
| Occupied Bandwidth | 25kHz | |
| Harmonic/Spurious Suppression | ≤−70dBc | |
|
Weight/ Size
|
Weight | ≤2kg |
| Dimensions | 281mm × 180mm × 69mm | |
| Packaging Size | 500mm × 224mm × 132mm | |
| Virtual AtoN | Supported |
Drawings
Application
FAQ
1, Does it support real-time AIS communication?
Yes. Transmits and receives AIS signals autonomously, no operator needed.
2, Can it monitor system health remotely?
Yes. Supports intelligent diagnostics and remote infrastructure monitoring.
3, Is it built for harsh marine environments?
Absolutely. Compact and IP68-rated for long-term field deployment.
4, How efficient is the power usage?
Ultra-low power(continuous mode ≤1W ) design ensures long-lasting autonomous operation.
5, What applications is it best suited for?
Perfect for unmanned buoys, ports, remote AtoNs, and data systems.
6, What are its weight and shipping specs?
Device ≤2kg, size 281×180×69 mm. Ships in compact 500×224×132 mm box.
