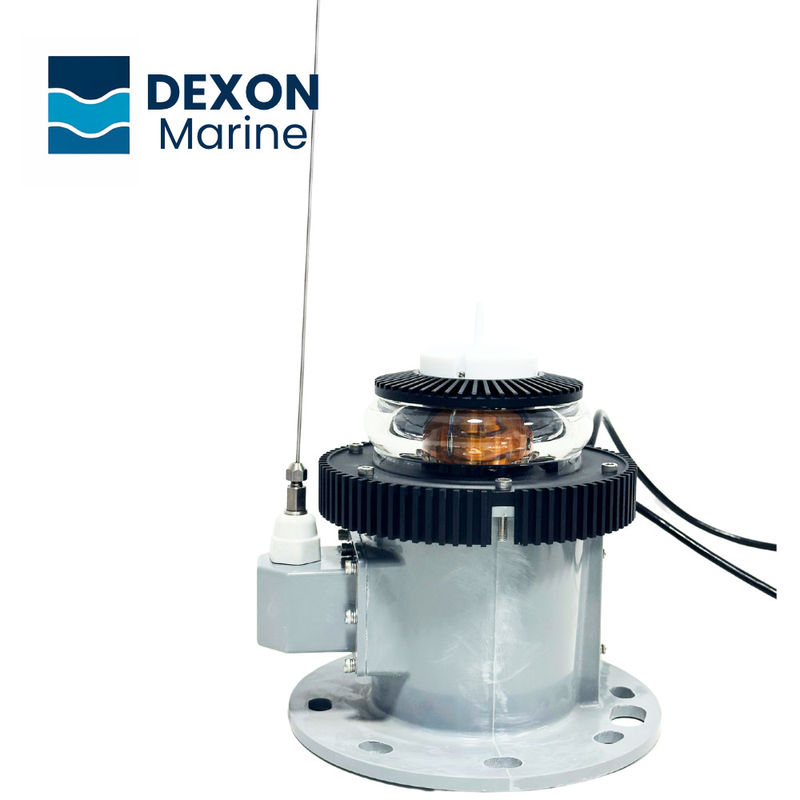

IP68 6.6W LED Marine Lanterns LED Boat Running Light support external AIS Option
Product Summary
This LED marine lantern is highly efficient, with a power consumption of just 6.6W and a white light intensity of 464 candelas. The antenna is high-gain omnidirectional VHF and supports all three AIS modes — SOTDMA, FATDMA and RATDMA, ensuring full global compatibility. The product is equipped with ...
Product Custom Attributes
Color:
Red/Green/Yellow/White/Blue/Yellow-Blue
Light Source:
LED
Lens Material:
Acrylic
Operating Temperature:
-35°C To +65°C
Waterproof Rating:
IP68
Lens Size:
155mm
Highlight:
6.6W LED Marine Lanterns
,LED Marine Lanterns With AIS System
Basic Properties
Place of Origin:
Chengdu
Brand Name:
Dexon
Certification:
CE, ISO9001, IALA
Model Number:
DX-ML160
Trading Properties
Minimum Order Quantity:
1
Price:
USD 680～1000
Packaging Details:
cartons/pallets
Delivery Time:
3～10 days
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability:
10000/month
Product Description
This LED marine lantern is highly efficient, with a power consumption of just 6.6W and a white light intensity of 464 candelas. The antenna is high-gain omnidirectional VHF and supports all three AIS modes — SOTDMA, FATDMA and RATDMA, ensuring full global compatibility. The product is equipped with a smart BMS and has a wide 8–32V DC input range, making it ideal for autonomous, low-maintenance deployment.
Core advantages
- High-gain VHF antenna ensures a strong AIS signal in any direction, making it a reliable choice for professional use.
- Compatible with all AIS protocols: SOTDMA, FATDMA, RATDMA.
- Intelligent BMS is equipped with an 8–32V DC input, making it ideally suited for autonomous marine operations.
- Fully optimised for low-maintenance deployment on unmanned buoys.
- Global AIS coverage and compact efficiency make it an ideal solution for modern AtoN.
Technical specification
| Category | Specification | Details |
|---|---|---|
|
Main features
|
Operating Voltage | DC 8V—32V, intelligent compatibility with DC 12V and 24V |
|
Flash Mode
|
256 adjustable options Brightness: Adjustable by percentage |
|
|
Light Color
|
Red/Green/Yellow/White/Blue/Yellow-Blue | |
|
Illumination Distance
|
5—11nm @ 0.74T | |
|
Daylight Threshold
|
Digital light sensor, adjustable threshold | |
|
Waterproof Rating
|
IP68
|
|
|
Operating Temperature
|
-35°C to +65°C
|
|
|
Emission Angle
|
Fixed Light ≥2.5°
|
|
| Horizontal Max Luminous Intensity |
White: 2800cd/33.6W ｜ Red: 1955.9cd/19.8W Yellow: 1186cd/22.9W ｜ Blue: 663cd/33.6W Green: 1587cd/33.9W |
|
| LED Lifespan | >100,000 hours | |
|
Light features
|
Lens Material
|
Optical Acrylic |
| Lens Size | 155mm | |
| Shell Material | Composite SMC (Fiberglass) | |
| Charging Current | ≤10A | |
| Synchronous Flash | Synchronous flashing function | |
| Number of Layers | One or two layers controllable | |
|
Parameter Setting
|
RS232, Button
|
|
|
Installation Size
|
Conforms to domestic and international standards
|
|
| Weight | ≤2.6KG | |
| Product Size | 240*240*267mm |
Drawings
Application
- Buoys
- Beacons
- Harbor Entrances
- Offshore Platforms
- Floating AtoN Installations
- Fixed AtoN Installations
- Marinas
- Docks & Piers
- Channel Markers
FAQ
1, What kind of AIS support is included?
Compatible with SOTDMA, FATDMA, and RATDMA protocols.
2, How strong is the AIS signal?
Equipped with a high-gain VHF antenna for 360° coverage.
3, Is it suitable for unmanned deployments?
Yes. Optimized for autonomous AtoN with intelligent BMS (8–32V DC).
4, What’s the size and delivery time?
Weight 2.6 kg, product size is 240×240×267 mm. Ships in 3–10 days.
5, Is it usable for global AIS coverage?
Yes. Compact and protocol-compatible for worldwide marine systems.
