Handheld AIS Base Station Device Marine Field Testing & Signal Verification For Buoy Inspection

Handheld AIS Base Station Device Marine Field Testing & Signal Verification For Buoy Inspection

Handheld AIS Base Station Device

Buoy Inspection AIS Base Station Device

Place of Origin:

Chengdu

Brand Name:

Dexon

Certification:

CE、RoHS、ISO、IEC、IALA、IMO

Model Number:

DX081PB

Contact Us
Request A Quote
Product Details
Lifespan:
15 Years
Materia:
FRP (Fiberglass Reinforced Plastic)
Message:
Message 21, 6, 8, 14, Supports Multiple Formats
AIS Transmission Distance:
20NM~25NM
Operating Temperature:
-35°C To +60°C
Protection Level:
IP68
Certifications:
CE, RoHS, ISO,IEC, IALA
Applications:
Pre-Installation Testing Routine Field Maintenance AIS AtoN Demonstration & Training
Highlight:

Handheld AIS Base Station Device

,

Buoy Inspection AIS Base Station Device

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 2000~3000
Packaging Details
cartons/pallets
Delivery Time
3~10 days
Payment Terms
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability
10000/month
Product Description

A rechargeable AIS AtoN base station is perfect for channel markers

and solar navigation lights



Unlike traditional AIS base stations, the DX081PB enables users to inspect all beacons and AtoNs in a given area from the shore, eliminating the need for vessel boarding. Its compact design and real-time data access enable teams to identify specific device issues and schedule targeted maintenance, while its dual-mode AIS communication helps them to do so. This significantly reduces labour costs and downtime, while improving the accuracy of inspection routines.

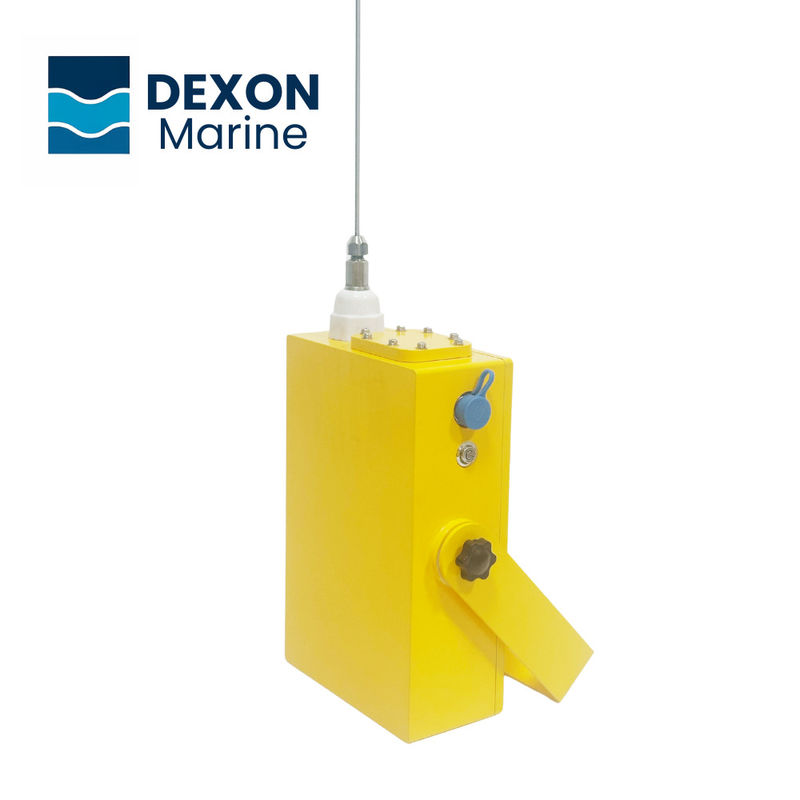

Handheld AIS Base Station Device Marine Field Testing & Signal Verification For Buoy Inspection 0

Core advantages

  1. It enables the remote inspection of all AtoNs within range, without the need for a vessel.
  2. Access to real-time AIS data ensures precise fault detection and diagnostics.
  3. Compact and efficient, making it ideal for rapid deployment along coastlines.
  4. Dual-mode AIS communication ensures broad compatibility and accurate tracking.
  5. Cuts labour costs by eliminating the need for time-consuming manual inspection trips.
  6. Allows for smarter maintenance scheduling through targeted, device-level analysis.

Technical specification

Category

Specification

Details

Main features

Operating Voltage DC 5.5–8.3V
Battery Capacity 77Wh (10.4Ah @ 7.4V)
Standby Time ≥20 hours continuous operation
Frequency Range 156.025MHz–162.025MHz
Air Transmission Rate 9600bps ±50ppm
Sensitivity ≤−110dBm
Modulation Mode GMSK/FSK
Interface RS232 Data Interface
Transmission Power ≤6W
Spurious Emission Suppression ≤−70dBc
Operating Temperature −35°C to +60°C
Dimensions 300mm × 150mm × 50mm

Weight ≤3kg



Drawings

Handheld AIS Base Station Device Marine Field Testing & Signal Verification For Buoy Inspection 1

Application

  • Pre-Installation Testing
  • Onsite Buoy & Beacon Inspection
  • Routine Field Maintenance
  • Temporary Deployment in Field Projects
  • AIS AtoN Demonstration & Training





FAQ

1, Does it support remote AtoN inspection?
Yes. Monitors all nearby AtoNs—no vessel needed.



2, How is fault detection handled?
Real-time AIS data enables precise diagnostics and alerts.



3, Is it suitable for coastal deployment?
Yes. Compact and efficient—perfect for fixed coastal stations.



4, What AIS modes are supported?
Dual-mode AIS ensures full compatibility and accurate tracking.



5, Can it reduce inspection costs?
Absolutely. No need for manual trips or vessel deployment.



6, How does it support smarter maintenance?
Offers targeted data for predictive maintenance and scheduling.

Handheld AIS Base Station Device Marine Field Testing & Signal Verification For Buoy Inspection 2
