All In One Fixed Indoor AIS AtoN Base Station 24/7 Signal Reception Easy Setup
Product Summary
AIS Aids to Navigation Fixed Indoor Base Station Standards-Compliant, Low Maintenance The DX083IA is a compact, all-in-one AIS base station designed for indoor environments such as control rooms, port operations centres and VTS hubs. With a built-in AIS receiver, power supply and antenna/data ...
Product Custom Attributes
All In One AIS AtoN Base Station
,Fixed Indoor AIS AtoN Base Station
Basic Properties
Trading Properties
Product Description

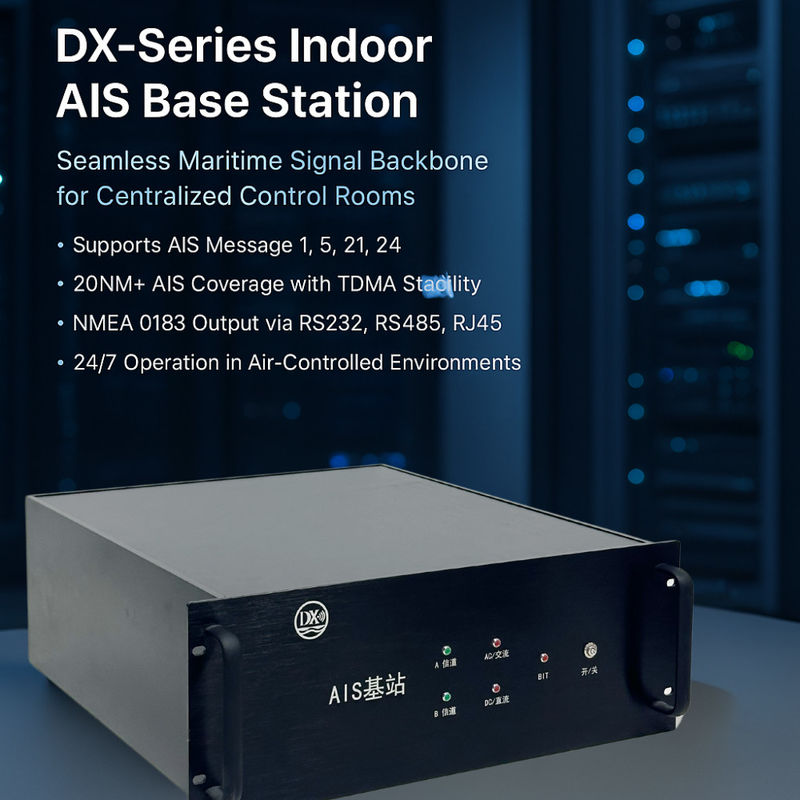

AIS Aids to Navigation Fixed Indoor Base Station
Standards-Compliant, Low Maintenance
The DX083IA is a compact, all-in-one AIS base station designed for indoor environments such as control rooms, port operations centres and VTS hubs. With a built-in AIS receiver, power supply and antenna/data interfaces, no additional modules are required. It provides reliable signal reception from ships, AtoNs and nearby base stations 24/7, ensuring uninterrupted maritime visibility. Installation is quick and integration is seamless via RS232, Ethernet or the optional 4G/5G connection. Compliant with standards and requiring minimal maintenance, it is ideal for modern port systems.
Core advantages
- All-in-one AIS base station features an integrated receiver, power supply and antenna ports in a single unit.
- Designed for control rooms and VTS hubs, it eliminates the need for additional modules or outdoor installation.
- Delivers 24/7 AIS reception from ships, AtoNs and shore stations, ensuring uninterrupted maritime visibility.
- Plug-and-play connectivity via RS232, Ethernet or optional 4G/5G, enabling fast integration.
- Standards-compliant design requires minimal maintenance for long-term reliability.
- Its compact footprint makes it perfect for desktops, racks, or control consoles.
Technical specification
|
Category |
Specification |
Details |
|---|---|---|
|
Main features
|
Power Supply Range | AC 220V / DC 12V (adjustible) |
| Operating Frequency | 156.025–162.025 MHz | |
| Frequency Error | ±0.3kHz | |
| Receiving Sensitivity | ≤ -107dBm | |
| Average Power Consumption | ≤1W(continuous operation) | |
| Transmit Power | Default ≤6W, ≤12.5W(adjustible) | |
| Interface Types | RS232, RJ45 Ethernet port | |
| Data Format | NMEA 0183 | |
| Transmission Rate | 115200 bps | |
| Message Format | VDM | |
| Virtual Beacon Functionality | Expandable, supports up to 8 virtual beacons | |
| 4G/5G Wireless Communication | Expandable | |
| Operating Temperature | -30°C to +65°C | |
| Dimensions | 483mm × 409mm × 135.5mm | |
| Weight | ≤ 5kg |
Application
FAQ
1, Is this a complete AIS base station?
Yes. Includes AIS receiver, power module, antenna/data ports — no add-ons needed.
2, What environments is it designed for?
For indoor use in control rooms, VTS hubs, and port operation centers.
3, How is it installed?
Quick setup via RS232, Ethernet, or optional 4G/5G.
4, Does it work continuously?
Yes. 24/7 signal reception from ships, AtoNs, and base stations.
5, Is it standard-compliant?
Fully compliant with AIS standards. Stable and reliable.
6, What’s the size and weight?
483×409×135.5 mm, ≤5 kg. Fits standard desks or racks.
