AIS Solar Navigation Device IP68 Waterproof 100Wh Battery Low Power System

AIS Solar Navigation Device IP68

100Wh Battery AIS Navigation Device

Place of Origin:

Chengdu

Brand Name:

Dexon

Certification:

CE、RoHS、ISO、IEC、IALA

Model Number:

DX903S

Request A Quote

AIS Solar Navigation Device IP68 Waterproof 100Wh Battery Low Power System

Product Details

Solar Panel & Battery:

4*1.8W Mono Panel, Lithium Battery, ≥100Wh

Operating Temperature:

-35°C To +60°C

Protection Level:

IP68

Lifespan:

15 Years

Applications:

Offshore Buoys Remote Navigation Channels Unmanned Maritime Installations Offshore Wind Farms / Oil Platforms Temporary Or Emergency AtoNs Smart Buoy Networks Coastal Surveillance Integration

Operating Mode:

SOTDMA, FATDMA, RATDMA (adjustable)

Highlight:

AIS Solar Navigation Device IP68

100Wh Battery AIS Navigation Device

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 2000~3000

Packaging Details

cartons/pallets

Delivery Time

3～10 days

Payment Terms

D/A,D/P,T/T,Western Union,MoneyGram,L/C

Supply Ability

10000/month

Solar IP68 Level AIS AtoN Inspection Device Real Time Position & System Health Updates

Get Best Price

Modular AIS AtoN Device Real Time Marine Monitoring IMO IEC Compliant

Get Best Price

Compact AIS Navigation Unit Solar Ready With 100Wh Lithium Battery Smart BMS

Get Best Price

AIS Solar Navigation Device IP68 Waterproof 100Wh Battery Low Power System

Get Best Price

Contact Now

Product Description

AIS Solar Navigation Device- IP68 waterproof, 100Wh batterym, low-power system

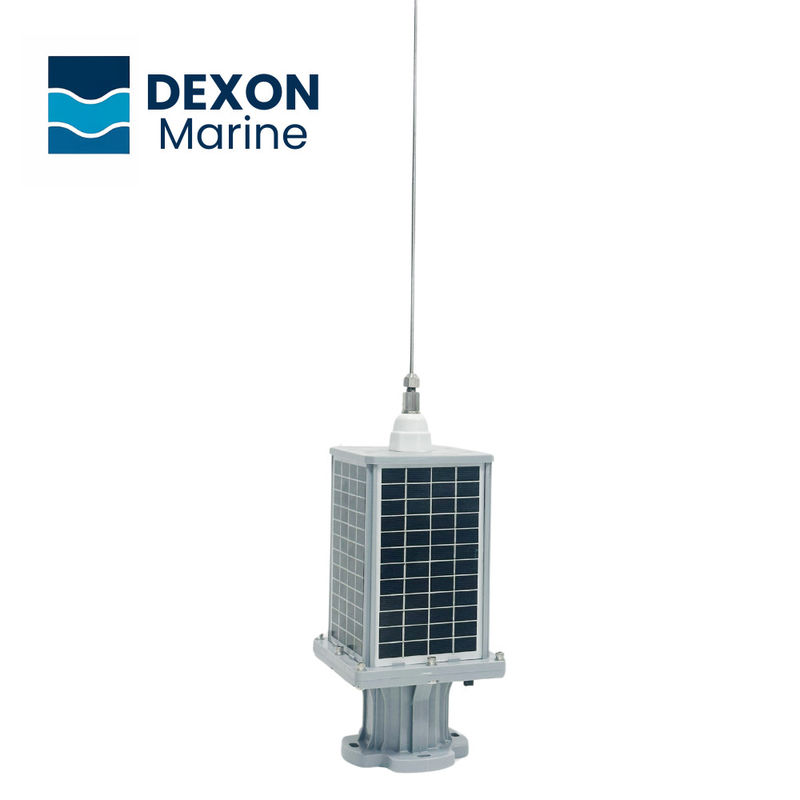

The DX903S boasts an integrated design, combining the AIS communication module and power system into one compact, self-contained unit. Its IP68 waterproof rating ensures optimal performance, even when fully submerged in water. Powered by a high-capacity lithium battery with an energy capacity of at least 100 Wh, it can operate autonomously and efficiently in remote and harsh conditions. Short-circuit and reverse polarity protection enhance its system integrity, while solar and voltage open-circuit testing improve calibration accuracy. It is a reliable, low-maintenance solution for long-term offshore deployment.

AIS Solar Navigation Device IP68 Waterproof 100Wh Battery Low Power System 0

Core advantages

All-in-one design integrates the AIS module and power system for streamlined deployment.
IP68 waterproof rating and is built to operate even when fully submerged.
High-capacity, 100+ Wh lithium battery ensures long-term autonomous performance.
Engineered with short-circuit and reverse polarity protection for system safety.
Open-circuit testing of the solar and voltage improves calibration and reliability.
Low-maintenance, high-durability solution for offshore and remote AtoN installations.

Technical specification

Category	Specification	Details
Main features	Operating Voltage	DC 5.5V—8.3V
	Solar Panels & Battery	Vertical 4x1.8W mono panel ,Lithium Battery, ≥100Wh
	Waterproof Rating	IP68
	Operating Temperature	-35°C to +60°C
	Parameter Setting	RS232
	Continuous Operation	≥30 days(Overcast/Rainy Conditions)
AIS features	Operating Frequency	161.975MHz, 162.025MHz
	Modulation Mode	GMSK/FSK
	Frequency Error	±0.5kHz
	Transmission Power	1W 2W 5W 6W 12.5W
	Average Power Consumption	Continuous mode ≤1W (Low power mode ≤0.7W)
	Message Format	Messages 21, 6(adjustable), supports multiple formats
	Operating Mode	Default Mode3 RATDMA (FATDMA, RATDMA, SOTDMA adjustable)
Weight/ Size	Weight	≤2.5 kg
	Dimensions	345mm x 122mm x 122mm
	Packaging Size	500mm x 200mm x200mm

Drawings

AIS Solar Navigation Device IP68 Waterproof 100Wh Battery Low Power System 1

Application

Offshore Buoys	Remote Navigation Channels
Unmanned Maritime Installations	Offshore Wind Farms / Oil Platforms
Temporary or Emergency AtoNs	Smart Buoy Networks
Coastal Surveillance Integration

FAQ

1, What’s special about the design?

All-in-one body merges AIS, battery, and control into one.

2, Is it suitable for remote deployments?

Yes. Ideal for offshore and unmanned AtoN setups.

3, Can it handle marine conditions?

Yes. IP68 waterproof and built for harsh environments.

4, Is it safe for electrical reliability?

Features short-circuit & reverse polarity protection.

5, Any smart diagnostic functions?

A5: Solar and voltage open-circuit testing improves accuracy.

6, Delivery info?

Weight is 2.5 kg, packing size is 500×200×200 mm. Ships in 3–10 days.

AIS Solar Navigation Device IP68 Waterproof 100Wh Battery Low Power System 2
